Product Details:
|
| Life: | 10 Years | Terminals: | Pins, Wires, Connector Or Customized |
|---|---|---|---|
| Series: | Lithium Thionyl Chloride 3.6V | Part Number: | 10250 |
| Capacity: | 400 Mah | Similar Model: | ER10240 Er10280 |
| High Light: | ER10250 Lithium Thionyl Chloride Cell,Wireless Alarm ER10250 Battery,Alarm Systems ER10250 Battery |
||

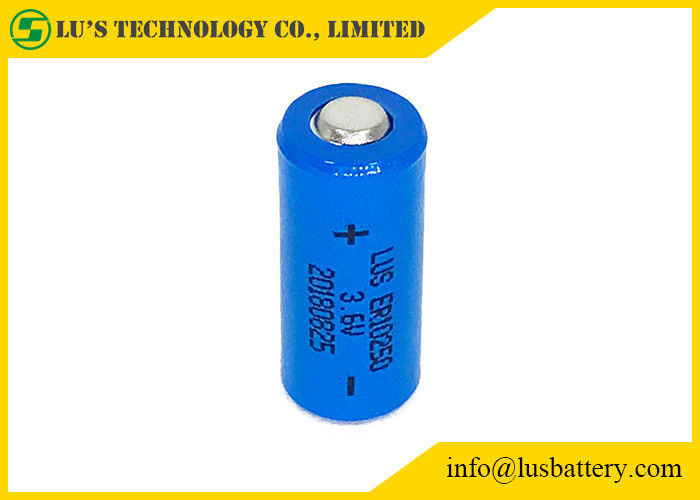

ER 10250 half AAA lithium thionyl chloride cell 3.6v battery for wireless alarm systems
ER10250 1/2 AAA Lithium Thionyl Chloride battery 3.6 V
Type: Lithium thionyl chloride (LiSOCl2).
Voltage: 3.6 V.
Length: 27.5 mm (note new longer length).
Diameter: 10.2 mm.
This miniature ER10250 1/2 AAA Lithium Thionyl Chloride battery is ideal for wireless alarm systems and can be widely used where miniaturisation is driving down the size of applications.
Covert surveillance devices are a perfect example of an application for the combination of high energy content and small size delivered by this ER10250 1/2 AAA Lithium Thionyl Chloride cell.
Lithium Thionyl Chloride has the highest energy density of any practical Lithium battery chemistry, three times greater than Alkaline (Zinc Manganese Dioxide) batteries.
It also has the widest operating temperature range of -55°C to + 85°C. Self discharge is low at less than 1% per annum at 20°C, giving an effective shelf life of 10 years.
Versions of this ER10250 1/2 AAA Lithium Thionyl Chloride cell are available to order with a wide variety of solder pins, solder tags, axial wires, and polarized solder pins.
ER 10250 Technical data:
| Name | Primary lithium batteries | |
| Model | ER10250/ER10240 | |
| Size | 10.5*25mm | |
| Nominal capacity (2mA~2V) | 400mah | |
| Rated voltage | 3.6 V | |
| Max constant current of discharge | 5 mA | |
| Max discharge current(pulse) | 10 mA | |
| Weight | 5 g | |
| Operating temperature range | -55~85℃ | |
| OEM and ODM | Welcome | |
| Shipping | Air/Sea/Express and customized | |
| Package | PVC or customized |
Important Notes:
Do not short or charge the battery.
Over-discharging, crushing, incinerating, and disassembling the battery are prohibited.
Do not heat/use the battery beyond the permitted temperature range.
Characteristics:
1. High energy density (620Wh/Kg); which is the highest among all lithium batteries.
2. High open circuit voltage (3.66V for single cell), high operating voltage (varying with load, normally ranging from 3.3V to 3.6V).
3. Wide range of operating temperature(-55C~+85C).
4. Stable voltage and current, over 90% of the cell capacity is discharged at high plateau voltage.
5. Long operating time (over 8 years) for continuous low current discharge with medium current pulses.
6. Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).
Application:
Utility Metering,
Automatic Meter Reading,
Medical Electronics,
Memory Backup,
Tracking Systems,
Law Enforcement (RFID),
Earthquake Detectors,
Digital Control Devices,
Remote Monitory Systems,
Electronic Toll Tags,
Scientific Instruments,
Portable Communication
Equipment,
Military Radio Stations,
And other electric powered devices requiring small size,
High power batteries.
Lithium Thionyl Chloride cells:
| Model | voltage (v) | capacity(mAh) | demension(mm) | Nominal Discharge Current(mA) | weight (g) | |
| Diameter | Height | |||||
| ER10250 | 3.6 | 400 | 10.5 | 25 | 0.5 | 5 |
| ER10280 | 3.6 | 450 | 10.5 | 28 | 0.5 | 6 |
| ER10450 | 3.6 | 700 | 10.5 | 45 | 1 | 8 |
| ER14250 | 3.6 | 1200 | 14.5 | 25.4 | 1 | 10 |
| ER14335 | 3.6 | 1600 | 14.5 | 33.5 | 1 | 12 |
| ER14505 | 3.6 | 2400 | 14.5 | 50.5 | 2 | 19 |
| ER17335 | 3.6 | 1800 | 17.5 | 34 | 3 | 18 |
| ER17505 | 3.6 | 3200 | 17.5 | 50.5 | 3 | 26 |
| ER18505 | 3.6 | 3600 | 18.7 | 50.5 | 3 | 28 |
| ER26500 | 3.6 | 9000 | 26.2 | 50 | 4 | 52 |
| ER34320 | 3.6 | 8000 | 34.2 | 32.5 | 4 | 58 |
| ER34615 | 3.6 | 19000 | 34.2 | 61.5 | 5 | 100 |
| ER341245 | 3.6 | 36000 | 34.2 | 124.5 | 10 | 195 |
| ER14250M | 3.6 | 800 | 14.5 | 25.4 | 2 | 10 |
| ER14335M | 3.6 | 1300 | 14.5 | 33.5 | 3 | 13 |
| ER14505M | 3.6 | 2200 | 14.5 | 50.5 | 4 | 19 |
| ER17505M | 3.6 | 2800 | 17.5 | 50.5 | 5 | 27 |
| ER18505M | 3.6 | 3200 | 18.7 | 50.5 | 5 | 28 |
| ER26500M | 3.6 | 6500 | 26.2 | 50 | 10 | 52 |
| ER34615M | 3.6 | 14000 | 34.2 | 61.5 | 15 | 100 |
| ER13150S | 3.6 | 300 | 13.2 | 15 | 0.5 | 6 |
| ER14250S | 3.6 | 750 | 14.5 | 25.2 | 1 | 10 |
| ER14505S | 3.6 | 1600 | 14.5 | 50.5 | 2 | 20 |
| ER26500S | 3.6 | 4100 | 26.2 | 50 | 4 | 60 |
| ER34615S | 3.6 | 10500 | 34.2 | 61.5 | 5 | 106 |
| ER2450 | 3.6 | 500 | 24.5 | 5.9 | 1 | 9 |
| ER32100 | 3.6 | 1700 | 32.9 | 10 | 1 | 25 |
| ER3265 | 3.6 | 1000 | 32.9 | 6.5 | 1 | 17 |
| ER9V | 10.8 | 1200 | 17*26.3*48.5 | 1 | 30 | |
| EF651615 | 3.6 | 400 | 16.8*15.8*6.8 | 1 | 5 | |
| EF651625 | 3.6 | 750 | 16.8*25.8*6.8 | 1 | 8 | |
| Remark: 1)"M"-Power Type; 2)"S"-High Temperature; | ||||||
