Product Details:
|
| Part Number: | ER14250 | Type: | Li Socl 2 |
|---|---|---|---|
| Size: | 1/2AA | Printing: | Can Be Customized |
| Terminals: | Depends On You | Package: | Plastic Case Or PVC |
| High Light: | ER14250 Lithium Battery Plastic Case,Water Meters ER14250 Lithium Battery,Plastic Case ER14250 Lithium Battery 3.6 V |
||

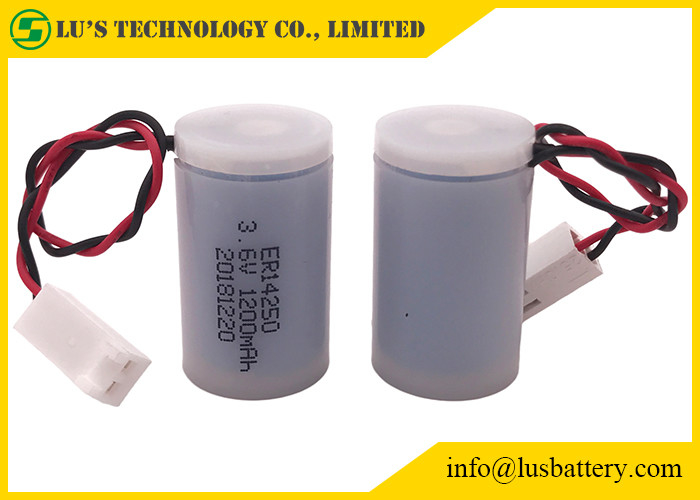

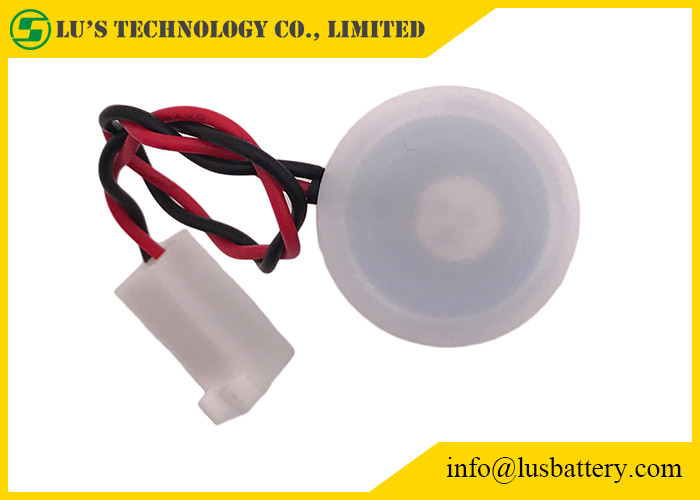

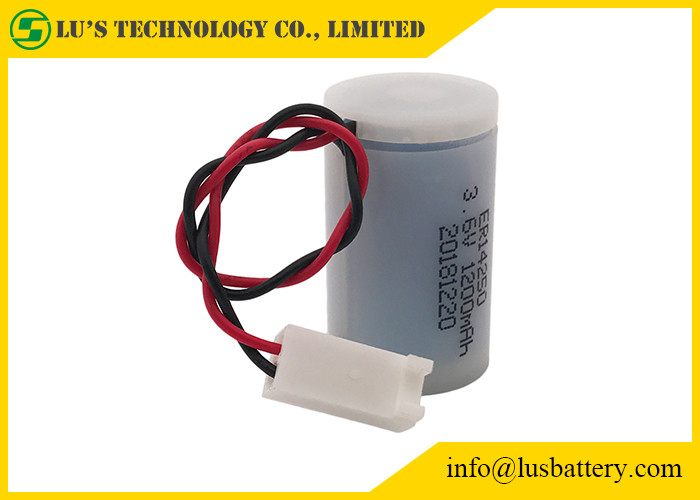

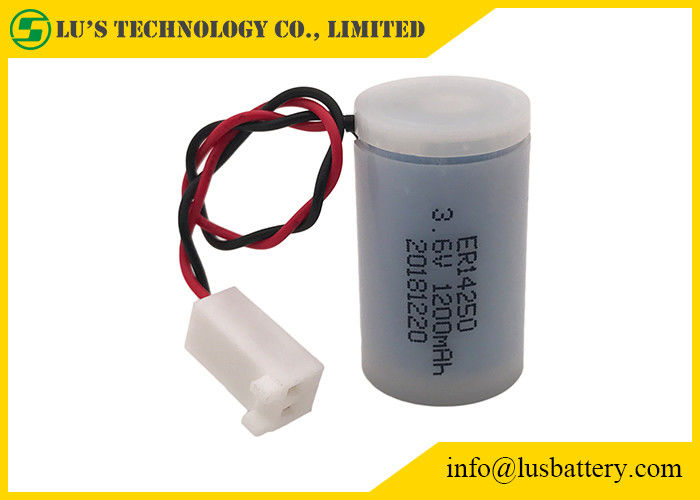

Disposable battery ER14250 in plastic case for water meters 1/2AA Size 3.6V 1200mAh Lithium Battery
Voltage: 3.6V Nominal Capacity: 1.2Ah
High and stable operating voltage
Higher power and higher energy for the whole battery life
Superior drain capability
Higher power applications
Low self-discharge rate (less than 1% after 1 year of storage at +20°C)
Battery life higher than 10 years, depending on the application
Hermetic glass-to-metal sealing
Avoid leakage, key for a higher than 10 year battery life
Non-flammable electrolyte
Safer operation in case of abuse
Compatible Part Numbers: UHE-ER14250, UHE-ER14250-X, XL-050F, 1770-XZ, 3B26, 418-0076, 60-0576-100, 6135-99-770-2535, 6ES5-980-0MA11, 6ES59800MA11, 742-0011, 922-1262, ER3, ER3S, ER4, LS14250, LS3, T04/41, T04/51, TL-2150, TL-2150/S, TL-2151, TL-5101, TL-5112, TL-5151, TL-5151S, TL2150, TL2151, TL5101, TL5112, TL5151, TL5151S, VL1/2AA
How to order:
1. Inquiring
2. Discussion
3. Offer and PI
4. Deposit
5. Final Drawing confirmation.
6. Start production -push production -follow production-finished production.
7. Take a movie or photo of the product and share it with the buyer.
8. Rest Payment
9. Ready to ship out.
10. Send out to carrier/forwarder.
11. Follow the shipping things.
12. After-sales service. ( Life Service support)
3.6v lithium battery ER14250 Technical data:
| Model | ER14250 |
| Voltage | 3.6V |
| Capacity | 1.2Ah |
| Max constant current of discharge | 50mA |
| Max discharge current(pulse) | 100mA |
| Weight | 10g |
| Operating temperature range | -55~85℃ |
| Jacket | PVC or Plastic case |
| Terminals | Pins/tabs/customized |
| Samples | Available |
Application:
Utility Metering
Automatic Meter Reading
Medical Electronics
Memory Backup
Tracking Systems
Law Enforcement (RFID)
Earthquake Detectors
Digital Control Devices
Remote Monitory Systems
Electronic Toll Tags
Scientific Instruments
Portable Communication Equipment
Military Radio Stations
And other electric powered devices requiring small size
High power batteries.
Lithium Thionyl Chloride Battery 3.6V List:
| International Model Size | Model Number | Max Dimension | Weight | Nominal | End Voltage | Nominal Capacity | Max Continuous Operating Current | Max Pulse Discharge Current |
| mm | g | Voltage | V | mAh | mA | mA | ||
| AAA | ER10450 | φ10.4X45.3 | 8 | 3.6 | 2 | 600(1mA) | 25 | 60 |
| ER11120 | φ11.5X12.0 | 2 | 3.6 | 2 | 100(0.2mA) | 2 | 4 | |
| ER13150 | φ13.5X15.0 | 6 | 3.6 | 2 | 450(0.5mA) | 10 | 30 | |
| L31 | ER13460 | φ13.5X46.0 | 14 | 3.6 | 2 | 1500(1mA) | 60 | 100 |
| 1/2AA | ER14250 | φ14.5X25.0 | 10 | 3.6 | 2 | 1200(0.5mA) | 20 | 45 |
| 2/3AA | ER14335 | φ14.5X33.5 | 13 | 3.6 | 2 | 1650(1.3mA) | 75 | 150 |
| AA | ER14505 | φ14.5X50.5 | 22 | 3.6 | 2 | 2400(2mA) | 100 | 200 |
| 2/3A | ER17335 | φ17.0X33.5 | 21 | 3.6 | 2 | 2100(2mA) | 100 | 200 |
| ER17505 | φ17.0X50.5 | 25 | 3.6 | 2 | 3400(4mA) | 120 | 200 | |
| A | ER18505 | φ18.8X50.5 | 30 | 3.6 | 2 | 4000(2mA) | 120 | 200 |
| C | ER26500 | φ26.2X50.0 | 53 | 3.6 | 2 | 8500(3mA) | 130 | 300 |
| D | ER34615 | φ34.0X61.5 | 108 | 3.6 | 2 | 19000(2mA) | 200 | 400 |
| International Model Size | Model Number | Max Dimension | Weight | Nominal | End Voltage | Nominal Capacity | Max Continuous Operating Current | Max Pulse Discharge Current |
| mm | g | Voltage | V | mAh | mA | mA | ||
| 1/2AA | ER14250M | φ14.5X25.2 | 10 | 3.6 | 2 | 750(4mA) | 120 | 250 |
| 2/3AA | ER14335M | φ14.5X33.5 | 13 | 3.6 | 2 | 1200(4mA) | 300 | 500 |
| AA | ER14505M | φ14.5X50.5 | 22 | 3.6 | 2 | 1800(10mA) | 500 | 1000 |
| 2/3A | ER17335M | φ17.0X33.5 | 21 | 3.6 | 2 | 1700(5mA) | 500 | 1000 |
| A | ER18505M | φ18.8X50.5 | 30 | 3.6 | 2 | 3200(10mA) | 800 | 1500 |
| C | ER26500M | φ26.2X50.0 | 53 | 3.6 | 2 | 6500(10mA) | 1000 | 2000 |
| D | ER34615M | φ34.0X61.5 | 108 | 3.6 | 2 | 14000(10mA) | 2000 | 3000 |
| Application:Utility Metering, Automatic Meter Reading, Medical Electronics, Memory Backup, Tracking Systems, Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Remote Monitory Systems, Electronic Toll Tags, Scientific Instruments, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring small size, high power batteries. | ||||||||
Drawing:
