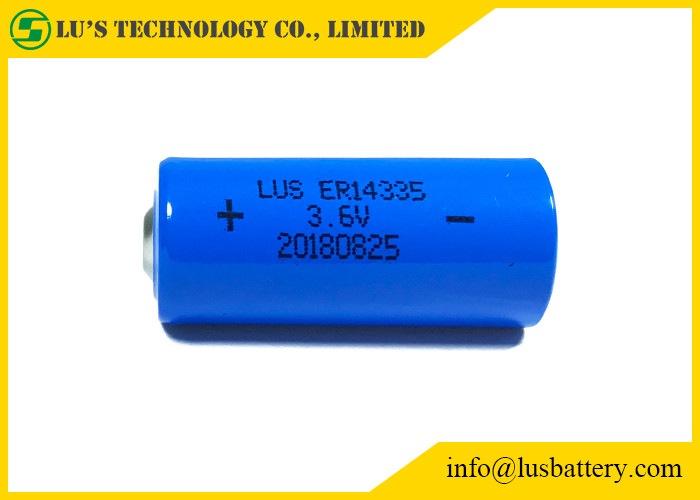

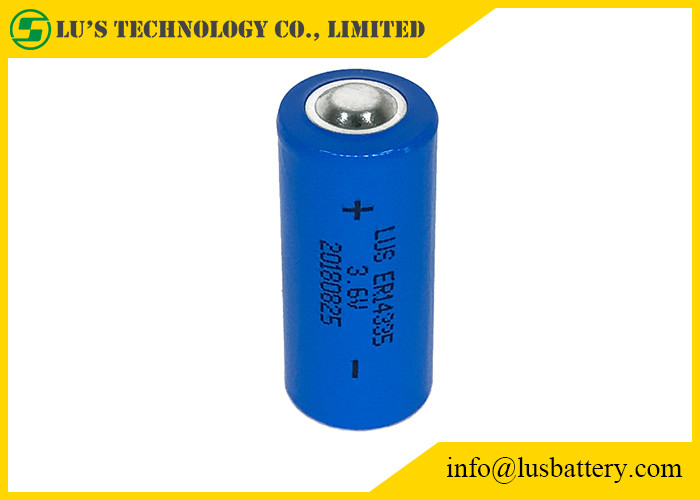

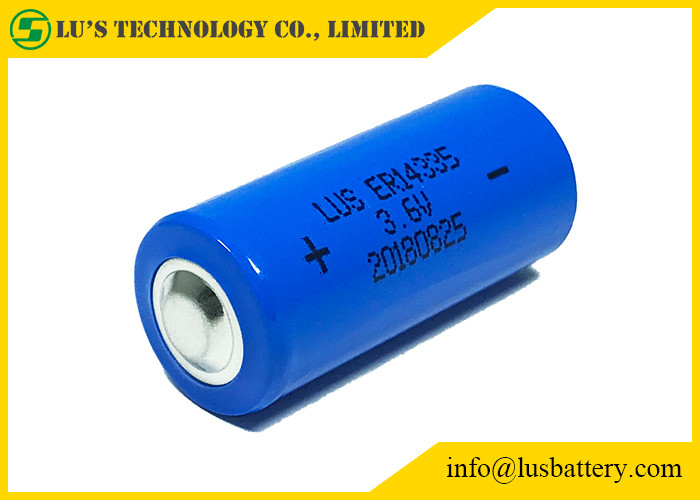

2/3AA ER14335 Lithium 3.6 V Battery 1.65Ah Lithium Thionyl Chloride Cell For Smoke Alarms

2/3AA ER14335 Lithium 3.6 V Battery 1.65Ah Lithium Thionyl Chloride Cell For Smoke Alarms

Smoke Alarms ER14335 Lithium Battery

ER14335 Lithium Thionyl Chloride Cell

2/3AA ER14335 Lithium 3.6 V Battery

Place of Origin:

China

Brand Name:

OEM

Certification:

UL

Model Number:

ER14335 battery

Contact Us
Request A Quote
Product Details
Part Number:
14335
Nominal Voltage:
3.6V
Capacity:
1650 Mah
Life:
10 Years
Dimension:
φ14.5X33.5
OEM:
Welcomed
Highlight:

Smoke Alarms ER14335 Lithium Battery

,

ER14335 Lithium Thionyl Chloride Cell

,

2/3AA ER14335 Lithium 3.6 V Battery

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
Bargain
Packaging Details
cartons
Delivery Time
5-7 working days
Payment Terms
L/C, T/T, Western Union
Supply Ability
1000000pcs/days
Product Description

ER14335 3.6V 1.65Ah 2/3AA Lithium Battery For Smoke Alarms Lithium Thionyl Chloride cell

ER14335 2/3AA Lithium Thionyl Chloride Battery

  • Long shelf life: self discharge rate less than 1% at 25°C.
  • High energy density (700Wh/kg).
  • Long operating life.
  • Stainless steel container and end caps.
  • Wide temperature range: -55ºC ~ +80ºC.
  • Hermetic glass-to-metal sealing.
  • Non-flammable electrolyte.
  • Compliant with IEC86-4 safety standard.
  • UL Component Recognition MH46165.
  • High and stable operating voltage.

Suitable for applications including:
  • Active RFID tags
  • Alarm and security systems
  • Smoke detectors
  • Memory backup power
  • Medical
  • Professional electronics
  • Real time clock


Store in a cool dry place not exceeding +30ºC.



Model: ER14335 Primary lithium batteries Li-SOCl Energy type 2/3AA size

Technical data:

Name: Lithium Thionyl Chloride Battery

Part number: ER14335

Size: 2/3AA

Capacity: 1650 mah

Voltage: 3.6v

Max constant current of discharge : 75mA

Max discharge current (pulse); 150mA

Weight: 13g





2/3AA ER14335 Lithium 3.6 V Battery 1.65Ah Lithium Thionyl Chloride Cell For Smoke Alarms 0

Important Notes:



Do not short or charge the battery.



Over-discharging, crushing, incinerating, and disassembling the battery are prohibited.



Do not heat/use the battery beyond the permitted temperature range.





Lithium Thionyl Chloride Batteries



Characteristics:



1. High energy density (620Wh/Kg); which is the highest among all lithium batteries.


2. High open circuit voltage (3.66V for single cell), high operating voltage (varying with load,



normally ranging from 3.3V to 3.6V).


3. Wide range of operating temperature(-55C~+85C).


4. Stable voltage and current, over 90% of the cell capacity is discharged at high plateau



voltage.


5. Long operating time (over 8 years) for continuous low current discharge with medium



current pulses.


6. Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under



normal room temperature).



Company :

2/3AA ER14335 Lithium 3.6 V Battery 1.65Ah Lithium Thionyl Chloride Cell For Smoke Alarms 1



Non-rechargeable batteries Product list

Lithium Thionyl Chloride cells
Model voltage (v) capacity(mAh) demension(mm) Nominal Discharge Current(mA) weight (g)
Diameter Height

ER10250 3.6 400 10.5 25 0.5 5
ER10280 3.6 450 10.5 28 0.5 6
ER10450 3.6 700 10.5 45 1 8
ER14250 3.6 1200 14.5 25.4 1 10
ER14335 3.6 1600 14.5 33.5 1 12
ER14505 3.6 2400 14.5 50.5 2 19
ER17335 3.6 1800 17.5 34 3 18
ER17505 3.6 3200 17.5 50.5 3 26
ER18505 3.6 3600 18.7 50.5 3 28
ER26500 3.6 9000 26.2 50 4 52
ER34320 3.6 8000 34.2 32.5 4 58
ER34615 3.6 19000 34.2 61.5 5 100
ER341245 3.6 36000 34.2 124.5 10 195
ER14250M 3.6 800 14.5 25.4 2 10
ER14335M 3.6 1300 14.5 33.5 3 13
ER14505M 3.6 2200 14.5 50.5 4 19
ER17505M 3.6 2800 17.5 50.5 5 27
ER18505M 3.6 3200 18.7 50.5 5 28
ER26500M 3.6 6500 26.2 50 10 52
ER34615M 3.6 14000 34.2 61.5 15 100
ER13150S 3.6 300 13.2 15 0.5 6
ER14250S 3.6 750 14.5 25.2 1 10
ER14505S 3.6 1600 14.5 50.5 2 20
ER26500S 3.6 4100 26.2 50 4 60
ER34615S 3.6 10500 34.2 61.5 5 106
ER2450 3.6 500 24.5 5.9 1 9
ER32100 3.6 1700 32.9 10 1 25
ER3265 3.6 1000 32.9 6.5 1 17
ER9V 10.8 1200 17*26.3*48.5 1 30
EF651615 3.6 400 16.8*15.8*6.8 1 5
EF651625 3.6 750 16.8*25.8*6.8 1 8
Remark: 1)"M"-Power Type; 2)"S"-High Temperature;
