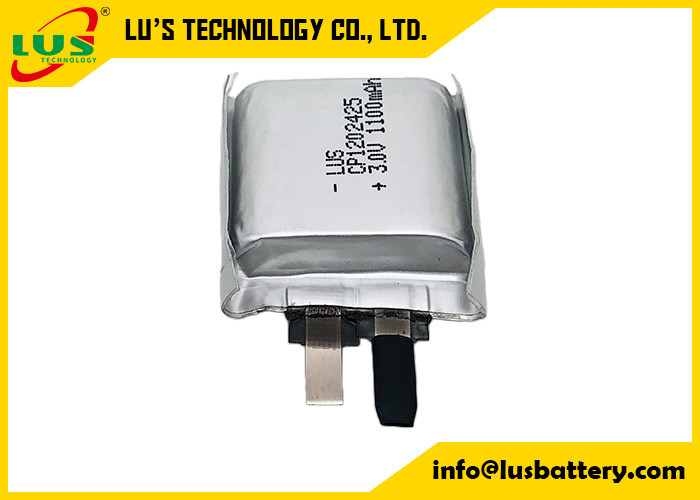

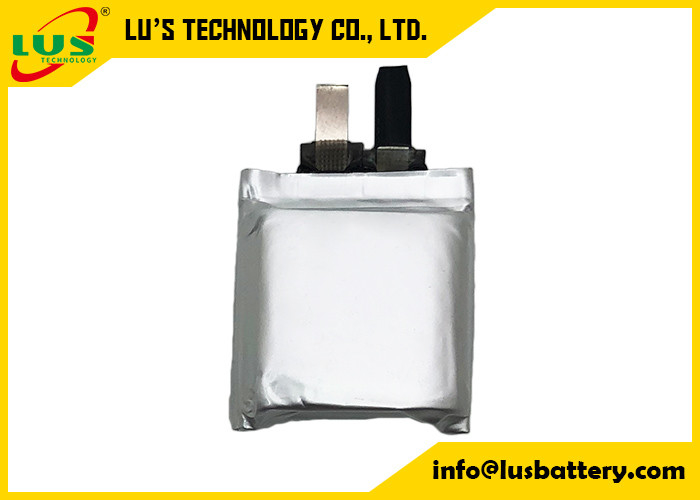

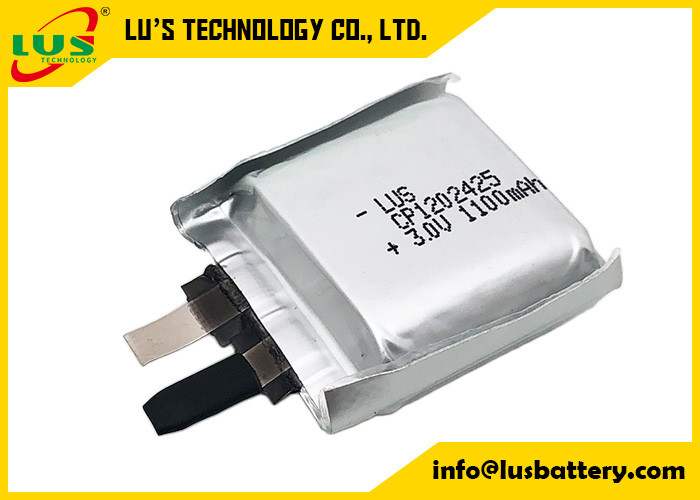

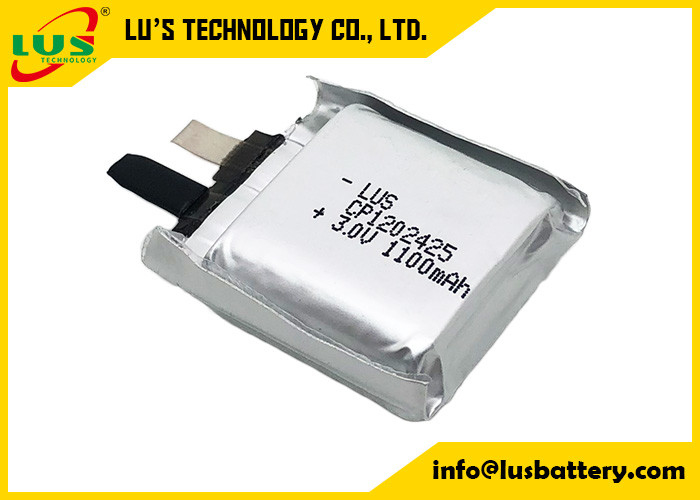

CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery

Certification
China Lu’s Technology Co., Limited certification
China Lu’s Technology Co., Limited certification
Customer Reviews
Ottimo arrivato pacco integro senza danni ne ammaccature materiale di qualità. Grazie

—— Fabrizio Brunetti

Thanks for big support! They are accepting our small order request. Products is jut fine.

—— Kenjiro Kasai

Items as described. Thanks!

—— Jared Schwartzentruber

Great attention for any query. Batteries take time to customs but when I have them, I have tested them and they work fine. I will buy again, a larger order. I recommend 100%. Thank you so much

—— Boabdil S,Spain

I'm Online Chat Now

CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery

CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery
CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery
CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery

Large Image :  CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery

Product Details:
Place of Origin: Guangdong,China
Brand Name: OEM
Certification: Meet UL
Model Number: CP1202525 Battery CP1202424
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: Bargain
Packaging Details: Cartons
Delivery Time: 7-9 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs/Month

CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery

Description
Shelf Life: Above 10 Years Shelf Discharge: 2% Per Year
Rechargeable: Non Rechargeable Limno2 Cell Part Number: CP1202425 CP1202525 CP1202424
Samples: Welcome Small Order: Acceptable
High Light:

CP1202425 Primary Lithium Battery

,

Limno2 Primary Lithium Battery

,

3 Volt Thin LiMnO2 Battery

CP1202425 primary lithium battery 1100mah 3 volt thin cell lithium range CP1202525 CP1202424

CP1202425 CP1202525 3V 1100mAh Specialised Thin Cell Lithium Battery CP1202424

3V 1100mAh LiMnO2 Thin Cell Lithium Limno2 material battery



Part number: Cp1202425 CP1202424 CP1202525 CP1202626

Voltage: 3.0 volt

Capacity : 1100mah

Dimension: Max 12*25.5*26.5 mm

Current : standard 300mA pluse 600mA

Terminals: Pins/ wires/ Connector depends on your  application

Printing: welcome customized



Wide Operating Temperature Range
-20°C to +60°C
Special models with operating temperature -40°C to + 70°C available

Long Shelf Life
Self discharge rate is less than 2% per year at room temperature
No passivation effect, instant install-and-use, maintenance free

Ultra thin Variable Design
Battery of variable dimensions can be selected to fit in the customer's design
Customize batteries and packs are available

Greater Safety
The structure of the battery offers greater safety to meet customer's requirement for special applications

Specification



Battery series Thin cell battery 3.0v ultra thin foil battery 1100mah
Model CP1202425
Voltage 3.0V
Capacity 1100mah
Size Max. 12.0*25.5*26.0mm
Weight 7.5g
Operating Temperature -40℃~+70℃
Max continuous current 300mA
Max pulse current 600mA
Terminals Can be customized
OEM and ODM Welcome

Main Characteristics:



a. High and stable working voltage



b. Wide operating temperature range



c. Longer storage life and higher reliability



d. High safety and non-pollution



Product feature:

CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery 0

CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery 1

CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery 2





Application Field:



RFID BATTERY / ID card battery / Payment system battery etc



a. Civilian field: AMR of common instruments and CMOS circuit boards



b. Various smart meters: smart electric meters, water meters, heat meters and gas meters



c. Memories and standby power supplies: memory backup, clock power supplies and data backup power supplies



d. Radio alarm equipment/sensors: smoke alarms and temperature monitors



e. Remote monitoring systems: positioning devices and marine telemetry systems



f. Automotive electronics: tire pressure monitoring systems



g. Industrial field: automation instrumentations and equipment, oil wells, mines, medical equipment, burglar alarm, wireless communication, sea survival, etc.



h. Modern national defense and military fields: aviation, spaceflight, marine electronics, air-sea-land weapons, etc.

CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery 3



Work Shop:



CP1202425 Primary Lithium Battery 1100mah 3 Volt Thin LiMnO2 Battery 4

Ultra thin batteires:



Model Size Nominal Voltage Nominal Capacity Max Continuous Discharge Current Max Pulse Discharge Current Dimension
T(mm) W(mm) H(mm)
CP042345 3V 35mAh 2mA 4mA 0.45 23±0.5 45±0.5
CP042529 3V 22mAh 2mA 4mA 0.45 25±0.5 29±0.5
CP042722 3V 15 mAh 1mA 2mA 0.45 27±0.5 22±0.5
CP042922 3V 15mAh 1mA 2mA 0.41 29 23
CP044040 3V 50mAh 5mA 10mA 0.45 40 40±0.5
CP044560 3V 100mAh 10mA 20mA 0.45 45.5 60
CP052039 3V 25 mAh 2 mA 4 mA 0.5 20 39
CP052722 3V 22mAh 1mA 2mA 0.5 27 22
CP053050 3V 80mAh 15mA 30mA 0.5 30 50
CP054248 3V 100mAh 20mA 40mA 0.5 48.5±0.5 48.5±0.5
CP064348 3V 200mAh 20mA 50mA 0.6 48.5±0.5 48.5±0.5
CP073545 3V 160mAh 10mA 20mA 0.7 35 45
CP082922 3V 50 mAh 20mA 80mA 0.8 29 22
CP084248 3V 320mAh 20mA 50mA 0.8 48.5±0.5 48.5±0.5
CP102015 3V 30mAh 2mA 5mA 1 20±0.5 15±0.5
CP104248 3V 420mAh 100mA 200mA 1.05 49 49
CP105050 3V 420mAh 100mA 200mA 1.05 50 50
CP105075 3V 450mAh 200mA 300mA 1.05 45.2 75
CP105256 3V 500mAh 30mA 50mA 1.05 52 56
CP124444 3V 420 mAh 75 mA 150mA 1.2 44 44
CP142828 3V 160mAh 25mA 50mA 1.4 28±1.0 28±1.0
CP142828H 3V 140mAh 50mA 100mA 1.4 28±1.0 28±1.0
CP151220 3V 35mAh 5mA 10mA 1.5 12±0.5 20±0.5
CP153030 3V 170mAh 40mA 80mA 1.5 30 30
CP153030H 3V 140mAh 50mA 100mA 1.5 30 30
CP154580 3V 1000mAh 150mA 300mA 1.5 45±0.5 80
CP151015 3V 18mAh 0.5mA 1mA 1.5 10±0.5 15±0.5
CP161220H 3V 20mAh 16mA 30mA 1.6 12±0.5 20±0.5
CP161230H 3V 45mAh 16mA 30mA 1.6 12±0.5 30±0.5
CP162235 3V 160mAh 30mA 50mA 1.6 22 35
CP164548 3V 700mAh 50mA 100mA 1.6 45.5 48.5
CP171234 3V 140mAh 20mA 50mA 3.6 35 13.5
CP181234 3V 125mAh 25mA 50mA 1.8 12±0.5 34
CP183123 3V 150mAh 45mA 75mA 1.8




FAQ

1. Could you tell me your main product?

Re: Our main production is LiMnO2 flexible battery(ultra thin cell), LiSoCl2 battery and Rechargeable battery.



2. What is your MOQ?

Re: For available items NO MOQ

For OEM designs MOQ is 500 pcs per item



3. Could we do our logo customized ?

Re: Yes,we could do your printing and also accept original design service.



4. What is sample Date?

Re: we will send out within 1 week after details confirmation.



5. What is the Order Deliver Date?

Re: For available items in our stock is 3-5 days is ok.

For OEM designs need 15-25 days



6. Could you tell me your payment item?

Payment Item:

1: T/T, credit card / Visa / Mastercard / Alipay

2: 30% deposit advance,70% balance paid before ship out.


7. What is your After-sell service.
Re: When you find the product are damaged ,pls take photos and send to the salesman you are talking with. We will handle this and give you a satisfied solution method.

8. Can we set order by alibaba online?
Re: Of course you can and we strongly support our customer to set orders on line. No matter you set order online or off-line, you get the quality guarantee by our company.

9. Could we visit you factory before setting orders.
Re: Yes. You can visit our factory when you are convenience. We are sure that you will trust us after your visiting. We will pick you up if you need.
