Product Details:
|
| Rechargeable Cell: | Yes | Protection: | PCM |
|---|---|---|---|
| Part Number: | LP702060 | Dimension: | 7*20*60 Mm |
| Voltage: | 3.7v | Capacity: | 1000mah |
| High Light: | 1000mA Lithium Polymer Battery,3.7V Lithium Polymer Battery,Handheld Printer LiPoly Battery |
||

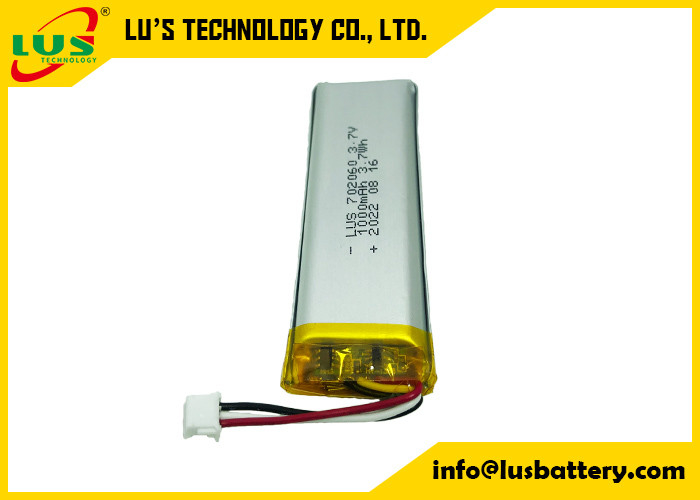

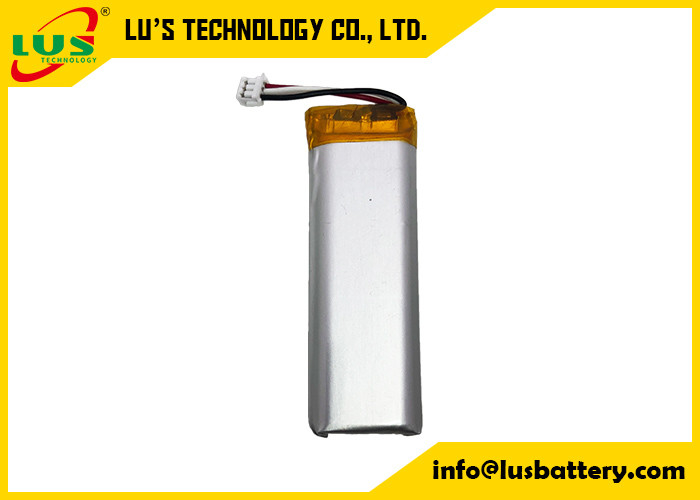

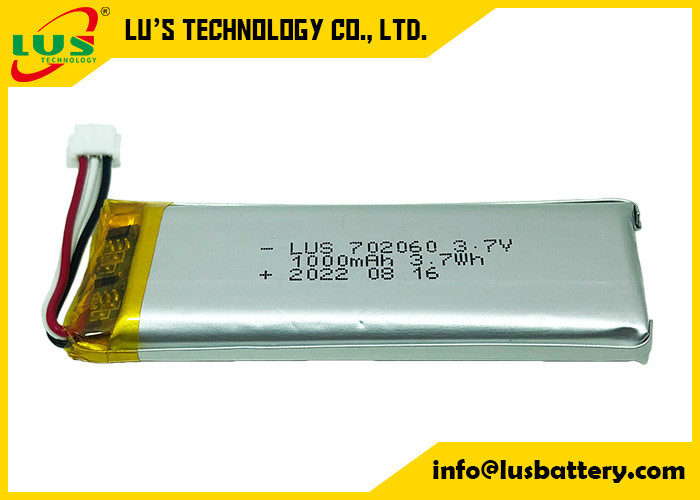

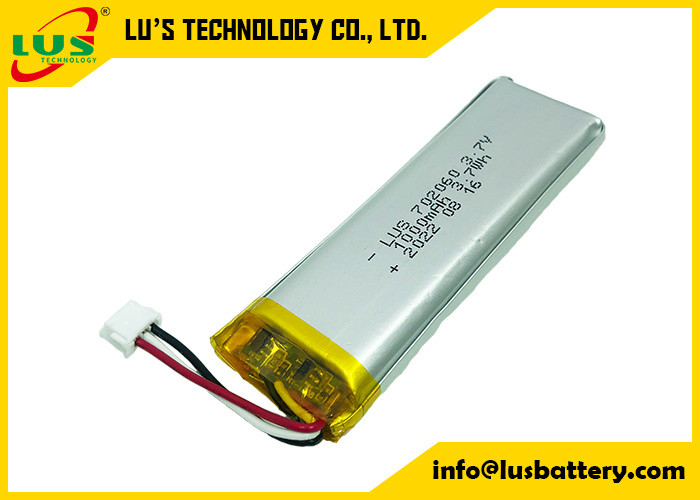

LP702060 Lithium Ion Battery PL702060 3.7V Lithium Polymer Battery for Hand-Held Mini Printer LiPoly Battery 3.7V 1000mA
This is rechargeable lithium polymer battery with voltage 3.7v capacity from 850mah to 1000mah
Protection board with PCM and NTC if needed
Terminals pins/wires/connector depends on your application
About Lithium Polymer Battery
Lithium polymer battery, also known as polymer lithium battery, is a kind of lithium ion battery of chemical battery.
Compared with other batteries, it has the characteristics of high energy, miniaturization, and light weight.
For the ultra-thin characteristics, it can be made into batteries of different shapes and capacities to meet the needs of some products.
The theoretical minimum thickness can reach 1.0mm.
Lithium polymer battery usually consists of several identical parallel secondary cells to increase the discharge current, or several battery packs in series to increase the available voltage.
|
Type |
Rechargeable |
|
Name |
lithium polymer batteires |
|
Part number |
702060 |
|
Voltage |
3.7v |
|
Capacity |
1000mah |
|
Dimension |
7*20*60.5 mm |
|
Cell weight |
17g |
|
Standard Charging Method |
0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C |
|
Standard Charging Current |
200mA (0.2C) |
|
Standard Charging Time |
6~7 hours |
|
Rapid Charging Current |
1000 mA |
|
Rapid Charging Time |
2 hours |
|
Max. Discharging Current |
1000 mA |
|
Operating humidity Range |
≤ 90%RH |
Communications equipment: Interphone, PHS phone, Bluetooth earphones
Audio-visual equipment: Digital cameras, Camcorders, Portable DVD, Portable television
Portable Devices: GPS, PMP, PSP, PDA, E-book, Shaver, Portable medical device etc.
Illuminate Devices: Miner lamp, Search light.
Others: RC models, Toys
Lu’s Technology Co., Limited is a Hi-Tech enterprise in China, Which is specialized in the research, design, production and sale of primary lithium battery and rechargeable batteries. Depending on the creative R&D center, the production base and the sale, service net, the company are offering its customers excellent products and services.
More product from LUS battery:
3.7V lithium polymer battery list:
| Model | Capacity | Model | Capacity |
| 102050 | 1000 | 602248 | 650 |
| 102540 | 1100 | 603030 | 550 |
| 103030 | 900 | 603040 | 750 |
| 103035 | 1000 | 603048 | 970 |
| 103040 | 1200 | 603443 | 850 |
| 103048 | 1500 | 603450 | 1200 |
| 103443 | 1500 | 604050 | 1500 |
| 103450 | 1800 | 605080 | 3000 |
| 103450 | 2000 | 606090 | 4000 |
| 103665 | 3000 | 626090 | 5000 |
| 104050 | 2500 | 654060 | 2000 |
| 123555 | 2500 | 702831 | 630 |
| 124065 | 4000 | 703035 | 750 |
| 303450 | 500 | 703040 | 800 |
| 307095 | 2500 | 703048 | 1100 |
| 317090 | 2200 | 703450 | 1300 |
| 327090 | 2000 | 703450 | 1350 |
| 327090 | 2200 | 704268 | 2200 |
| 337093 | 2500 | 752040 | 600 |
| 357095 | 2800 | 755060 | 3000 |
| 383450 | 750 | 755590 | 5000 |
| 402030 | 180/200 | 802025 | 350 |
| 402247 | 450 | 802035 | 500 |
| 454854 | 1500 | 802048 | 800 |
| 454261 | 1500 | 802530 | 550/600 |
| 493964 | 1500 | 802535 | 750 |
| 502030 | 200/250 | 802540 | 850 |
| 502535 | 420 | 803030 | 740 |
| 503035 | 580 | 803035 | 800 |
| 503040 | 600 | 803040 | 1000 |
| 503048 | 730 | 803048 | 1200 |
| 503048 | 750 | 803160 | 1800 |
| 503759 | 1200 | 803440 | 1200 |
| 505050 | 1500 | 803450 | 1500 |
| 505060 | 2000 | 804050 | 2000 |
| 505068 | 2000 | 804558 | 2500 |
| 505573 | 2000 | 805080 | 4000 |
| 505573 | 2500 | 902030 | 500 |
| 523450 | 1000 | 902535 | 800 |
| 602030 | 300 | 902530 | 700 |
| 602530 | 450 | 903035 | 1000 |
| 602535 | 550 | 903048 | 1500 |
| 602040 | 450 | 903450 | 1800 |
| 974058 | 3000 | 903659 | 2500 |
