Place of Origin:
China
Brand Name:
OEM
Certification:
UL
Model Number:
ER18505M spiral lithium battery
Primary Lithium battery Spiral type 3.6V 3600mAh Li-SOCl2 battery ER18505M UHR-ER18505
The ER18505M Lithium Battery 3.6v Li-SOCI2 Spiral A size D18,5x50,5mm 3,6V/3,6Ah/500mA standard Primary Batteries
ER18505M Li-SOCl2 Cylindrical Battery
Non-rechargeable Hermetic Sealing 3600mAh ER18505M Primary Lithium Thionyl Chloride Battery Spiral type 3.6V for electronic meter, smart meter, smoke detector.
High and Stable Voltage
Energy Density up to 899Wh/L
Long Shelf Life (less than 1% per year after 1 year of storage at +25℃)
Wide Operating Temperature (-55℃~+85℃)
The new lithium thionyl chloride A cell , the world leader in lithium 9V block batteries for smoke detectors.
The lithium thionyl chloride battery used in modern electrical appliances.
It is a primary battery (not rechargeable). Low self-discharge, high energy density, steel housing, suitable for use in temperatures from -55 to +85'C.
ER18505M
3.6V 3600mah Primary lithium batteries size A
Li-SOCl Power type
Technical data:
| Name | Lithium battery high power type | Li-SOCL2 Battery High Energy Type |
| Model | ER18505m | ER18505 |
| Nominal capacity (2mA~2V) | 3600mah | 4.0Ah |
| Rated voltage | 3.6v | 3.6V |
| Max constant current of discharge | 800mA | 120mA |
| Max discharge current(pulse) | 1500mA | 200mA |
| Operating temperature range | -55~85℃ | -55~85℃ |
| Weight | 30g | 30g |
Characteristics:
1. High energy density (620Wh/Kg); which is the highest among all lithium batteries.
2. High open circuit voltage (3.66V for single cell), high operating voltage (varying with load, normally ranging from 3.3V to 3.6V).
3. Wide range of operating temperature(-55C~+85C).
4. Stable voltage and current, over 90% of the cell capacity is discharged at high plateau voltage.
5. Long operating time (over 8 years) for continuous low current discharge with medium current pulses.
6. Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).
| International Model Size | Model Number | Max Dimension | Weight | Nominal | End Voltage | Nominal Capacity | Max Continuous Operating Current | Max Pulse Discharge Current |
| mm | g | Voltage | V | mAh | mA | mA | ||
| AAA | ER10450 | φ10.4X45.3 | 8 | 3.6 | 2 | 600(1mA) | 25 | 60 |
| ER11120 | φ11.5X12.0 | 2 | 3.6 | 2 | 100(0.2mA) | 2 | 4 | |
| ER13150 | φ13.5X15.0 | 6 | 3.6 | 2 | 450(0.5mA) | 10 | 30 | |
| L31 | ER13460 | φ13.5X46.0 | 14 | 3.6 | 2 | 1500(1mA) | 60 | 100 |
| 1/2AA | ER14250 | φ14.5X25.0 | 10 | 3.6 | 2 | 1200(0.5mA) | 20 | 45 |
| 2/3AA | ER14335 | φ14.5X33.5 | 13 | 3.6 | 2 | 1650(1.3mA) | 75 | 150 |
| AA | ER14505 | φ14.5X50.5 | 22 | 3.6 | 2 | 2400(2mA) | 100 | 200 |
| 2/3A | ER17335 | φ17.0X33.5 | 21 | 3.6 | 2 | 2100(2mA) | 100 | 200 |
| ER17505 | φ17.0X50.5 | 25 | 3.6 | 2 | 3400(4mA) | 120 | 200 | |
| A | ER18505 | φ18.8X50.5 | 30 | 3.6 | 2 | 4000(2mA) | 120 | 200 |
| C | ER26500 | φ26.2X50.0 | 53 | 3.6 | 2 | 8500(3mA) | 130 | 300 |
| D | ER34615 | φ34.0X61.5 | 108 | 3.6 | 2 | 19000(2mA) | 200 | 400 |
| International Model Size | Model Number | Max Dimension | Weight | Nominal | End Voltage | Nominal Capacity | Max Continuous Operating Current | Max Pulse Discharge Current |
| mm | g | Voltage | V | mAh | mA | mA | ||
| 1/2AA | ER14250M | φ14.5X25.2 | 10 | 3.6 | 2 | 750(4mA) | 120 | 250 |
| 2/3AA | ER14335M | φ14.5X33.5 | 13 | 3.6 | 2 | 1200(4mA) | 300 | 500 |
| AA | ER14505M | φ14.5X50.5 | 22 | 3.6 | 2 | 1800(10mA) | 500 | 1000 |
| 2/3A | ER17335M | φ17.0X33.5 | 21 | 3.6 | 2 | 1700(5mA) | 500 | 1000 |
| A | ER18505M | φ18.8X50.5 | 30 | 3.6 | 2 | 3200(10mA) | 800 | 1500 |
| C | ER26500M | φ26.2X50.0 | 53 | 3.6 | 2 | 6500(10mA) | 1000 | 2000 |
| D | ER34615M | φ34.0X61.5 | 108 | 3.6 | 2 | 14000(10mA) | 2000 | 3000 |
| Application:Utility Metering, Automatic Meter Reading, Medical Electronics, Memory Backup, Tracking Systems, Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Remote Monitory Systems, Electronic Toll Tags, Scientific Instruments, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring small size, high power batteries. | ||||||||

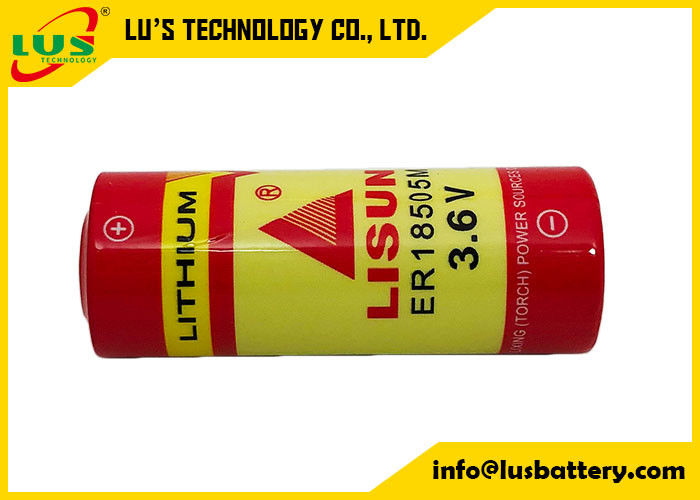

ER18505M Picture:
Work Shop:
