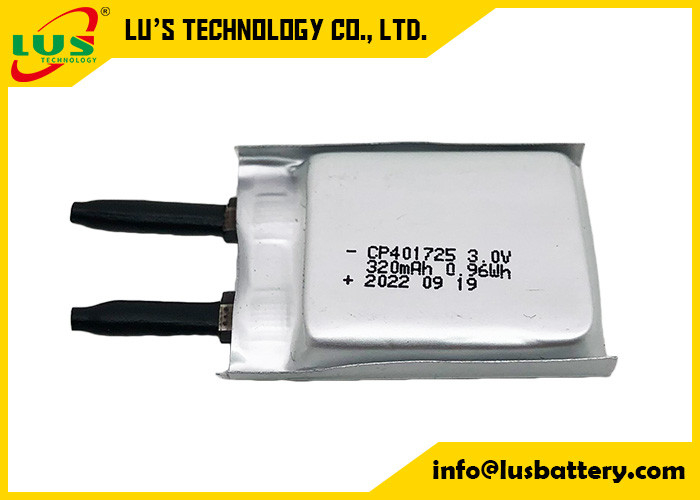

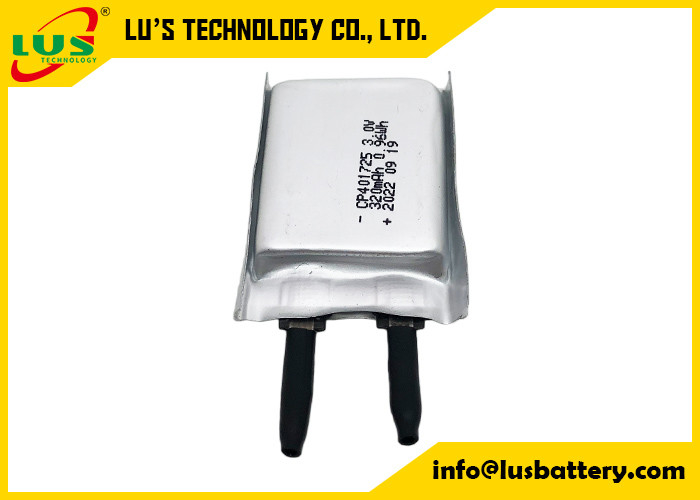

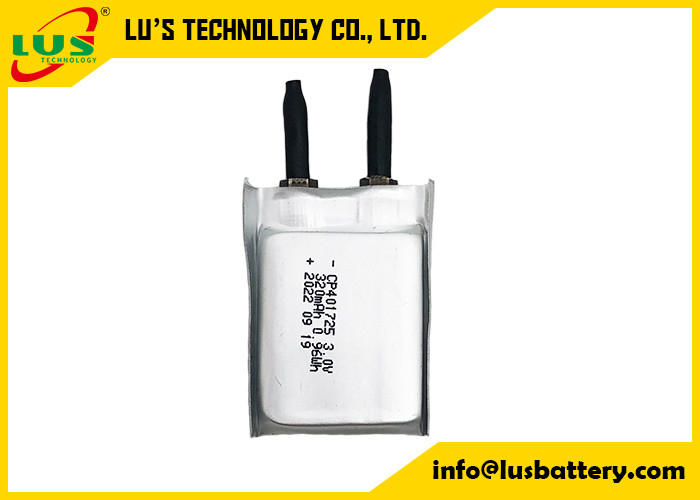

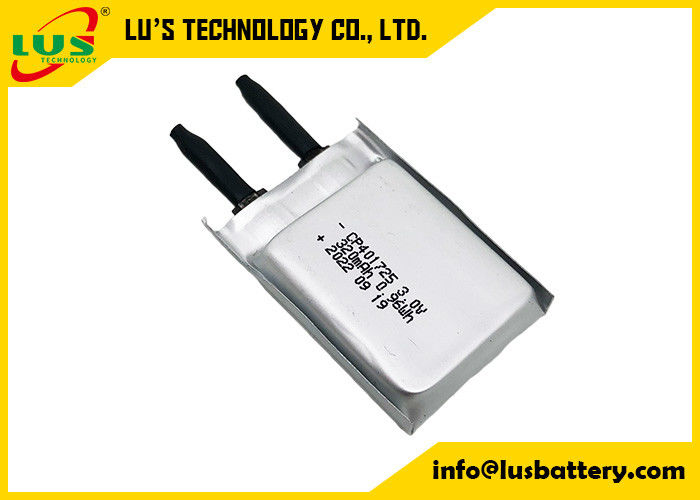

CP401725 Primary Lithium Battery 3v Limno2 Battery 320mah For Smart Card / RTLS

CP401725 Primary Lithium Battery 3v Limno2 Battery 320mah For Smart Card / RTLS
CP401725 Primary Lithium Battery 3v Limno2 Battery 320mah For Smart Card / RTLS
CP401725 Primary Lithium Battery 3v Limno2 Battery 320mah For Smart Card / RTLS CP401725 Primary Lithium Battery 3v Limno2 Battery 320mah For Smart Card / RTLS CP401725 Primary Lithium Battery 3v Limno2 Battery 320mah For Smart Card / RTLS CP401725 Primary Lithium Battery 3v Limno2 Battery 320mah For Smart Card / RTLS CP401725 Primary Lithium Battery 3v Limno2 Battery 320mah For Smart Card / RTLS

Large Image :  CP401725 Primary Lithium Battery 3v Limno2 Battery 320mah For Smart Card / RTLS

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: Meet UL
Model Number: CP401725 pouch cell
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Bargain
Packaging Details: cartons/tray
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs/days

CP401725 Primary Lithium Battery 3v Limno2 Battery 320mah For Smart Card / RTLS

Description
Model: CP401725 Printing: Welcomed Customized
PCM: No Needed, Can Use PTC Instead Terminals: Customized
Shape: Pouch Cell Material: Limno2 Battery Soft-pack
High Light:

CP401725 Primary Lithium Battery

,

RTLS Primary Lithium Battery

,

Limno2 Battery 320mah

primary lithium battery CP401725 3v limno2 battery cell 320mah for smart card battery CP401828 Pouch Cell Battery For RTLS battery CP401728

This is non  rechareable lithioum polymer battery with 3.0 volt 320mah 401725 lithium battery

Dimensions 4*18*28mm MAX so it also can call CP401828 CP401728 cp401825 ultra thin cell battery



Ultra thin Batteries are safe and light weight primary Lithium batteries.

These thin batteries use same chemistry as CR series coin cells but is packed in a soft polymer foil package same as used in Lithium Polymer batteries.

These Ultra Thin Cells have a operating voltage of 3.0V and comes in the range of 15mAh to 10000mAh capacity.



Data sheets:

Name ultra thin battery
Model Cp401725
Voltage 3.0V
Capacity 320 mah
Length MAX 28 mm
Width MAX 18mm
Thickness MAX 4.0mm
Temperature -40 to +70
Shelf life 10 years
Terminal Can be customized
OEM and ODM Welcome



CP401725 pouch cell lithium battery drawing:

CP401725 Primary Lithium Battery 3v Limno2 Battery 320mah For Smart Card / RTLS 0

Ultra thin cell CP series Limno2 batteries Advantage:



CP401725 Primary Lithium Battery 3v Limno2 Battery 320mah For Smart Card / RTLS 1

CP401725 Primary Lithium Battery 3v Limno2 Battery 320mah For Smart Card / RTLS 2











LU's battery is an experienced supplier of batteries specialized in the production of Lithium batteries.
Includes LiSOCL2 battery, LiMnO2 battery ,Ultra thin battery and custom-designed battery packs.
We welcome to OEM and ODM orders.Thanks.



Work Shop:

CP401725 Primary Lithium Battery 3v Limno2 Battery 320mah For Smart Card / RTLS 3
CP401725 Primary Lithium Battery 3v Limno2 Battery 320mah For Smart Card / RTLS 4


LUS Lithium maganese battery :


Model Maximum Appearance dimensions (mm) Weight
(g)
Rated voltage
(v)
Rated Capacity
(mAh)
Standard
Discharge Current (mA)
Max.Current (mA)
Continuous Pulse
CP042922 0.45×29×22 0.4 3.0 15 0.5 10 20
CP042345 0.45×23×45 0.8 3.0 30 0.5 20 35
CP104848 1.2×49×49 3.8 3.0 350 1.0 50 100
CP142828 1.5×29×29 1.5 3.0 100 1.0 15 30
CP153030 1.6×31×31 1.8 3.0 120 1.0 50 100
CP155050 1.6×51×51 6.0 3.0 650 5.0 500 1000
CP2012120 2.0×12×125 5.5 3.0 450 1.0 100 200
CP202850 2.2×28.5×50 3.6 3.0 380 1.0 100 200
CP224035 2.4×41×36 4.8 3.0 580 1.0 150 300
CP223045 2.4×31×46 4.2 3.0 480 1.0 150 300
CP224147 2.3×45×49 7.0 3.0 800 1.0 500 1200
CP265045 2.8×51×46 9.0 3.0 1200 1.0 300 500
CP264558 2.8×46×59 9.5 3.0 1250 5.0 300 500
CP305050 3.2×51×51 12.5 3.0 1600 5.0 600 1000
CP401720 4.2×18×21 2.0 3.0 220 1.0 50 120
CP401922 4.2×20×23 2.6 3.0 300 1.0 100 150
CP405050 4.2×51×51 17.0 3.0 2400 5.0 1000 1500
CP451728 4.5×18×29 3.2 3.0 380 1.0 120 200
CP502525 5.2×26×26 4.5 3.0 600 5.0 200 300
CP502440 5.2×25×42 8.5 3.0 1200 1.0 400 800
CP503742 5.2×38×43 13.0 3.0 1900 5.0 800 1200
CP504644 5.2×47×45 17.0 3.0 2500 5.0 1200 2000
CP505050 5.2×51×51 22.0 3.0 3000 10.0 1500 2000
CP602026 6.2×21×27 4.5 3.0 550 1.0 200 300
CP701725 7.2×18×26 4.5 3.0 520 1.0 150 300
CP783970 7.8×39×70 36.5 3.0 5500 10.0 3000 5000
CP7839109 7.8×39×109 63.0 3.0 10000 10.0 3000 5000
CP802060 8.0×20×60 15.5 3.0 2100 10.0 2000 3000
CP952434 9.7×25×35 11.5 3.0 1700 5.0 500 800
CP1003742 10.2×38×43 26.0 3.0 3900 5.0 1200 2000



Mode Voltage (V) Capacity (mAh) Discharge Current(mA) End Voltage(V) Diameter(mm) Height (mm) Weight (g) Testing Temp.(℃)
CR14250 3 650 10 2 14.5 25 10 23±3
CR14505 3 1500 10 2 14.5 50.5 17 23±3
CR17335 3 1500 10 2 17 33.5 17 23±3
CR17450 3 2000 10 2 17 50.5 23 23±3
CR17505 3 2500 10 2 17 50.5 25 23±3
CR17345(CR123A) 3 1500 10 2 17 34.5 17 23±3
CR11108(CR1/3N) 3 160 2 2 11.6 10.8 3.3 23±3
CR15H270(CR2) 3 850 10 2 15.6 27 11 23±3
CR-P2 6 1500 10 4 35x19.5x36 38 23±3
2CR5 6 1500 10 4 34x45x17 38 23±3
CR-V3 3 3000 20 2 29x14.5x53 38 23±3



Mode Voltage(V) Capacity(mAh) Dimension(mm) Weight(g) Chargeable or Non
CR2032 3 220 20.0*3.2 3 Non
CR2032 3 240 20.0*3.2 3 Non
CR1220 3 35 12.5*2.0 0.8 Non
CR1225 3 50 12.5*2.5 0.9 Non
CR1616 3 50 16.0*1.6 1.1 Non
CR1620 3 70 16.0*2.0 1.3 Non
CR1632 3 120 16.0*3.2 1.8 Non
CR2016 3 83 20.0*1.6 1.7 Non
CR2025 3 150 20.0*2.5 2.5 Non
CR2450 3 600 24.5*5.0 6.2 Non
CR3032 3 550 30.0*3.2 7 Non
ML1220 3 17 12.5*2.0 0.8 Yes
