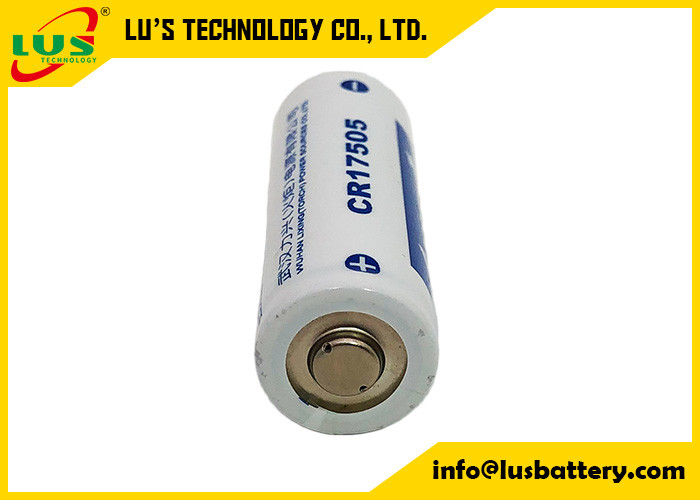

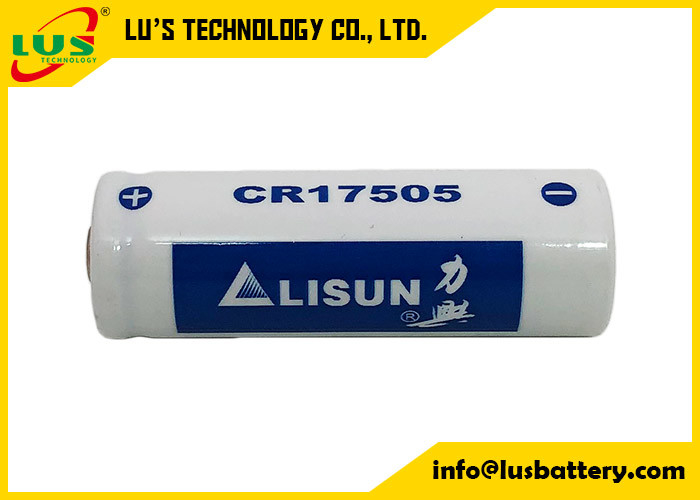

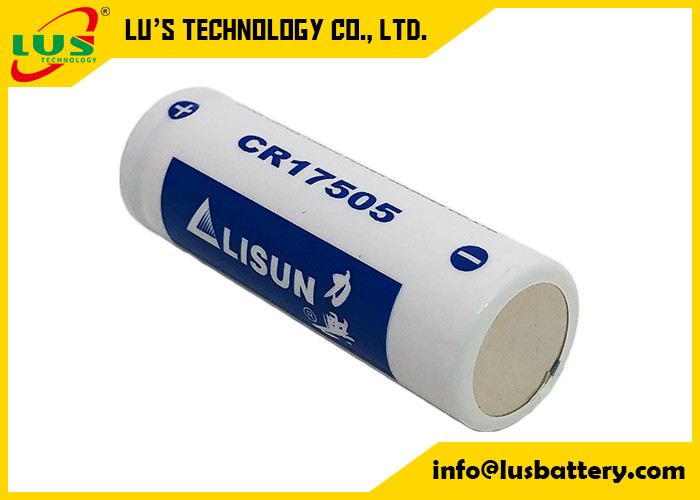

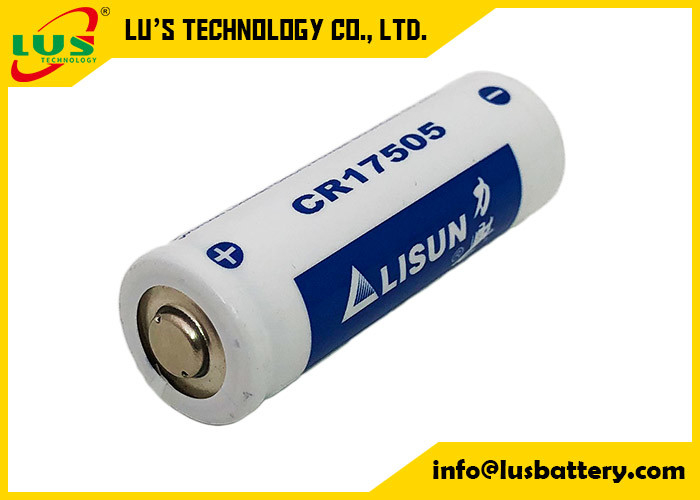

3V A Type CR17505 Battery 2500mAh Lithium Mno2 Battery For Memory Backup PLC

3V A Type CR17505 Battery 2500mAh Lithium Mno2 Battery For Memory Backup PLC
3V A Type CR17505 Battery 2500mAh Lithium Mno2 Battery For Memory Backup PLC 3V A Type CR17505 Battery 2500mAh Lithium Mno2 Battery For Memory Backup PLC 3V A Type CR17505 Battery 2500mAh Lithium Mno2 Battery For Memory Backup PLC 3V A Type CR17505 Battery 2500mAh Lithium Mno2 Battery For Memory Backup PLC

Large Image :  3V A Type CR17505 Battery 2500mAh Lithium Mno2 Battery For Memory Backup PLC

Product Details:
Place of Origin: China
Brand Name: OEM
Certification: UL
Model Number: CR17505
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Bargain
Packaging Details: cartons
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 pcs/Month

3V A Type CR17505 Battery 2500mAh Lithium Mno2 Battery For Memory Backup PLC

Description
Part Number: CR17505 Size: A
Discharge Current(mA): 10 End Voltage(V): 2
Weight(g): 25 LOGO: Welcome Customized
High Light:

A Type CR17505 Battery

,

2500mAh Lithium Mno2 Battery

,

PLC Lithium Mno2 Battery

CR17505 17505 3V A Type batteries 2500mAh lithium Li-MnO2 battery for Memory Backup PLC  3.0V 2500mAh CR17505 Lithium battery for Smart Wireless Sensor


CR17505 is none rechargeable lithium battery 3V LiMnO2 battery in size A Cylindrical Lithium Batteries Cr17505

Other hot sale CR14250 CR14505 CR14335 CR17450 CR17505 CR17345 CR123A CR11108 CR1/3N CR15H270 CR2 CR-P2 2CR5 CR-V3



Technical data

Type Not rechargeable cell
Material Limno2
Name Lithium primary batteries
Model CR17505
Voltage 3v
Capacity 2500mah
Discharge current 10mA
End voltage 2V
Diameter 17mm
Height 50.5mm
Weight 25g



3V A Type CR17505 Battery 2500mAh Lithium Mno2 Battery For Memory Backup PLC 0

Lithium Primary Batteries Li mno2 3V Key Features


1. High Energy Density


It is about 3 to 10 times more energy density than any other secondary battery. The energy


density of Li/MnO2 battery is up to 370Wh/kg and above.


2.High and Stable Operating Voltage


CR Series >2.7V (OCV 3.0V)


3.Wide Operating Current Range


To ensure the ten year service life, the cell operating current is merely at a few microamperes.


On the other hand, Forte also offers a wide range of options for varied needs; we can also


provide the cells with pulse current up to several amperes.


4.Wide Operating Temperature Range


For different cell types and under different operating current and applications, the operating


temperature endures from -40℃ to +70℃.


5.Long Shelf Life


Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly


capacity loss of the CR series less than 1% .


6. Outstanding Service Life


Up to 10 years operating life for some application based on different current.


7. Ultimate Safety


All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test


requirement.


Hermetically glass to metal sealed.


Blast resistant construction to assure the safety.


Non-flammable electrolyte


8.Green Energy


Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of


the wastes are naturally degradable and no long-term pollution to environment.


Lithium Manganese batteires 3V APPLICATION:

Utility meters (water, electricity, gas meters and AMR)


Alarm or security equipment (smoke alarm systems and detectors)


GPS tracking


Teal time clocks


Remote monitoring systems


Car electronics


Photo cameras

Cautions in use

To ensure proper use of the battery please read the manual carefully before using it.

Handling

Do not expose to, dispose of the battery in fire.

Do not put the battery in a charger or equipment with wrong terminals connected.

Avoid shorting the battery

Avoid excessive physical shock or vibration.

Do not disassemble or deform the battery.

Do not immerse in water.

Do not use the battery mixed with other different make, type, or model batteries.

Keep out of the reach of children.

Storage


Store the battery in a cool, dry and well-ventilated area.

Disposal

Regulations vary for different countries.

Dispose of in accordance with local regulations.

Note


Any other items which are not covered in this specification shall be agreed by both parties.



Lithium Manganese Dioxide Battery List:



Mode Voltage (V) Capacity (mAh) Discharge Current(mA) End Voltage(V) Diameter(mm) Height (mm) Weight (g) Testing Temp.(℃)
CR14250 3 650 10 2 14.5 25 10 23±3
CR14505 3 1500 10 2 14.5 50.5 17 23±3
CR17335 3 1500 10 2 17 33.5 17 23±3
CR17450 3 2000 10 2 17 50.5 23 23±3
CR17505 3 2500 10 2 17 50.5 25 23±3
CR17345(CR123A) 3 1500 10 2 17 34.5 17 23±3
CR11108(CR1/3N) 3 160 2 2 11.6 10.8 3.3 23±3
CR15H270(CR2) 3 850 10 2 15.6 27 11 23±3
CR-P2 6 1500 10 4 35x19.5x36 38 23±3
2CR5 6 1500 10 4 34x45x17 38 23±3
CR-V3 3 3000 20 2 29x14.5x53 38 23±3
