Product Details:
|
| Cut-off Voltage: | 2.0V | Standard Voltage: | 3.0 Volt |
|---|---|---|---|
| Capacity: | 1300mah | Terminals: | Pins/ Wires/ Connector |
| Part NO: | CP702236 | Type: | Limno2 Battery |
| High Light: | CP702236 Ultra Thin Battery,IOT Solution Flexible Limno2 Battery,IOT Solution Limno2 Battery |
||

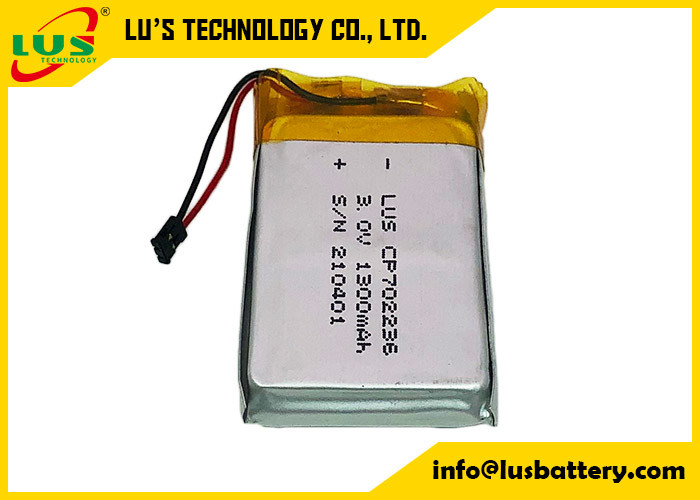

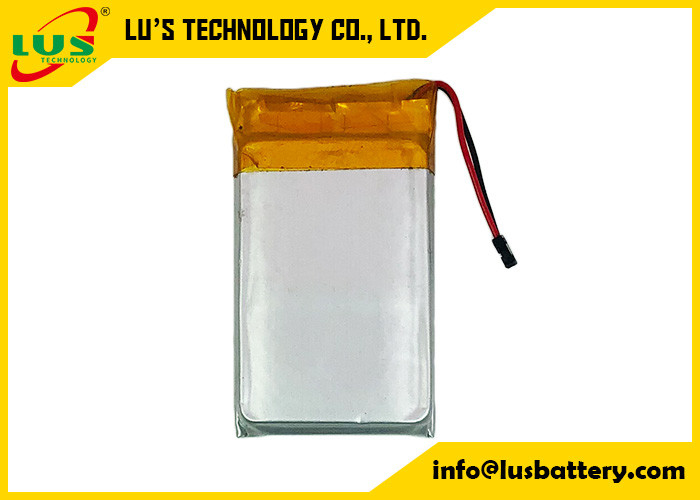

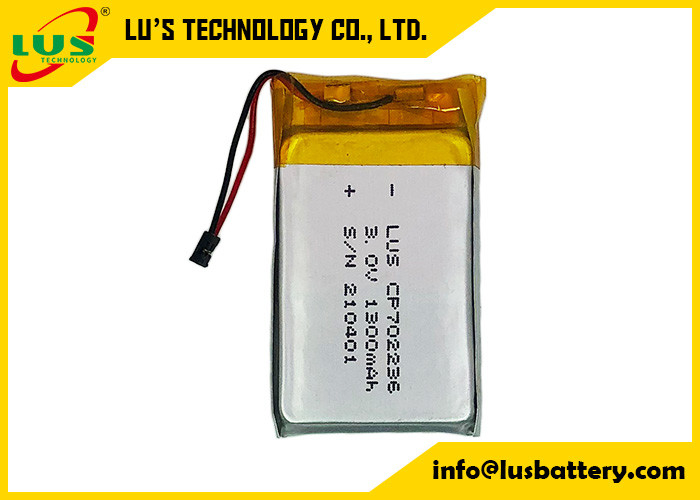

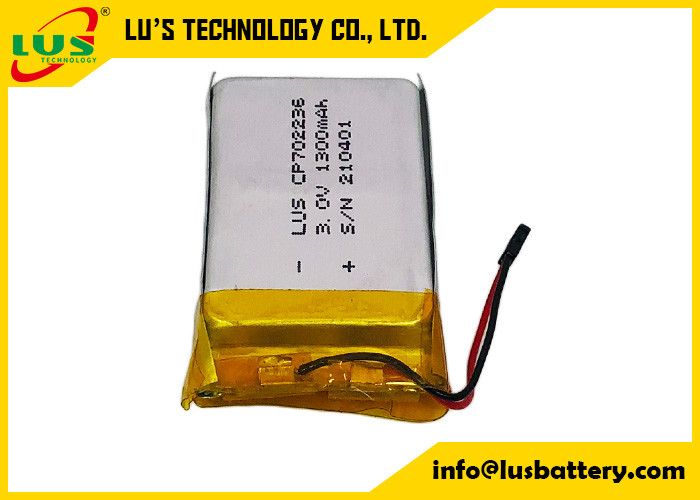

CP Ultra Thin Battery CP702236 1300mah flexible limno2 battery 3.0V widely used in IOT solution
This is Flexible Lithium Manganese Battery CP702236 Limno2 soft-pack lithium battery 1300mah voltage 3.0 volt
Variable Design
Battery of variable dimensions can be selected to fit in the customer’s design
Custom batteries and battery packs are also available
Greater Safety
The structure of the battery offers greater safety to meet customer’s requirement for special applications
Part number: CP702236 CP702240 CP702242
Voltage: 3.0 v
Capacity: 1300mah
Dimensions: Max.7.2*22.5*36.5mm
Max.Continuous Current: 500mA
Max.Pulse Current : 1000mA
it describes the Product Specification of soft-packed Li-MnO2 Battery CP702236 produced by LU’S.
| Name | Li-MnO2 Battery ultra thin cell | Note |
| Model | CP702236 | 1S1P |
| Voltage | 3.0V | When shipping, the voltage without load is between3.05V and 3.25V. |
| Capacity | 1300mah | Nominal Capacity refer to the capacity of 2 mA discharge to 1.8V cut-off voltage at 23℃. |
| Dimension | Max.7.2*22.5*36.5mm | Measured weight of 300gf at 25 ℃ ± 1 ℃.Not including battery drawing line. |
| Temperature | -40 to +60 | Exceed the operating temperature range could lead to battery operating voltage reduction or even a security risk. |
| Shelf life | Above 10 years | Relative humidity 45~75%RH Temperature -5 ℃~+35℃ |
| Max.Continuous Current (mA) | 500mA | At 25±2℃ the battery can discharge at least the max continuous discharge value which rated capacity 50% can permit. |
| Max.Pulse Current (mA) | 1000mA | At 23±2℃,battery discharge duration for 3 seconds and stand 27 seconds, it can discharge at least the max pulse discharge value which rated capacity 50% can permit |
| Terminals | Can be customized | such as pins, wires, connector |
| OEM and ODM | Welcome | Any battery pack acceptable |
Main points of flexible packaging lithium manganese battery
Flexible package structure design, special negative electrode structure design, self sealing diaphragm: improve battery safety;
Special raw material pretreatment: improve battery storage and comprehensive performance;
Continuous coating technology: improve battery performance, consistency and reliability;
Special electrolyte formula: improve battery environment, adaptability and storage performance;
HRL coating technology: improve battery safety performance and storage performance;
Battery integrated design technology: to ensure the highest safety performance of batteries, comprehensive design of the performance;
Large capacity flexible packaging lithium manganese battery technology: improve battery composition, group consistency;
Hybrid battery technology: both high specific energy and high pulse current performance.
Application Field:
RFID BATTERY / ID card battery / Payment system battery etc
CP042922 CP042345 CP0453730 CP263638 CP265040 CP092142 CP104848 CP142828 CP153030 CP155050 CP2012120 CP202850
CP224035 CP223045 CP224147 CP265045 CP264558 CP305050
CP401720 CP401922 CP405050 CP451728 CP502525 CP502440
CP503742 CP504644 CP505050 CP602026 CP701725 CP783970
CP7839109 CP802060 CP952434 CP1003742 CP383040 CR9V
We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC applications.
NO MOQ with fast lead time.
Welcome for any customized.
