Product Details:
|
| Battery Type: | Lithium Ion Battery | Series: | Lifepo4 Battery |
|---|---|---|---|
| Size: | 26650 | Current: | 1C 3C Up To 10C |
| Other Hot Sale: | 18650 21700 32700 32140 Etc | Samples: | Available |
| High Light: | LFP 3.2V Rechargeable Lithium Battery,Rechargeable Lithium Ion Battery,IFR26650 3.2V LiFePO4 Battery |
||
LFP 3.2V Rechargeable Lithium Battery 3200mah 3600mah 3800mah 4000mah
IFR26650 3000mAh 3.2V LiFePO4(LFP) Battery 3200mah 3600mah 3800mah 4000mah in size 26650 lithium ion battery

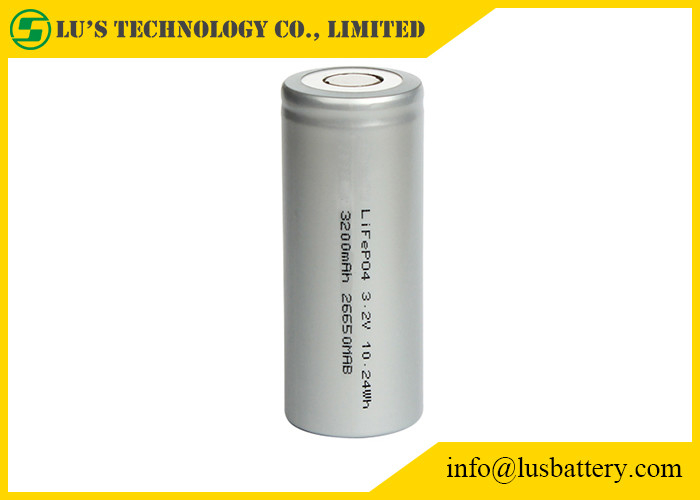

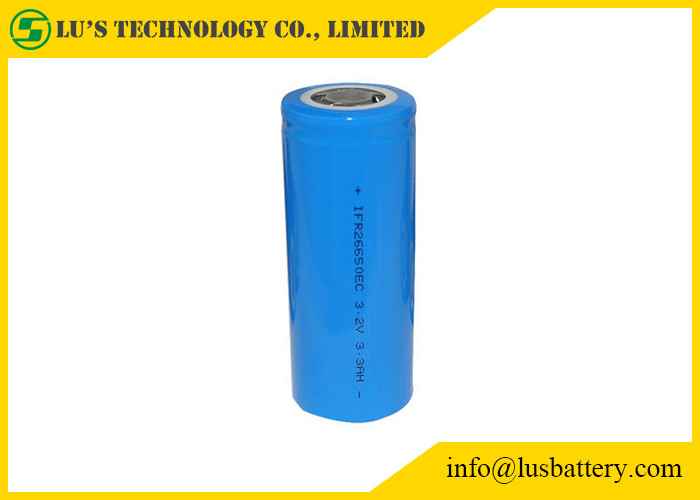

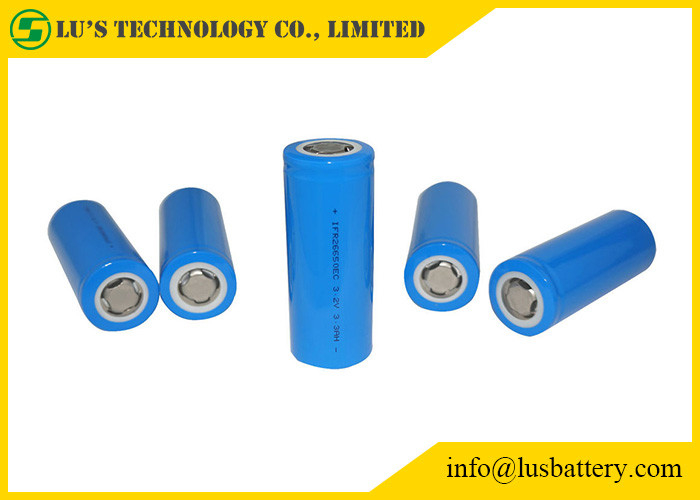

IFR26650 3.2V - 3.3V 3200mAh LiFePO4 (lithium iron phosphate) battery
LiFePO4 cell developed for energy storage systems. Besides long life and cycle stability the cell is environmentally friendly and safe.Lifetime 10x longer than Li-Ion batteries with approx. 1000 charging cycles.
LiFepo4 battery in number 26650 have 5 capacity range :
3200mah/3600mah/3800mah and 4000mah is capacity type, charge current from 0.5C to 1C, Max. discharge current 3C
But the power type capacity 3000mah, charge current 1C to 3C, discharge current 2C standard, 5C rapid, up 10C max.
Safety instructions:
Lithium cells may only be operated with protective electronics!
Please note that lithium cells may only be used by authorised personnel.
Incorrect handling or short-circuiting may result in fire or explosion.
Hot sale model 18650 / 26650
| Cell model | Voltage/V | Capacity/mAh | Capacity/mAh | Charge current | Discharge current | |||
| Standard | Max. | Standard | Rapid | Max. | ||||
| IFR18650-1600mAh-3.2V | 3.2 | 1600 | ≥1550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR18650-1800mAh-3.2V | 3.2 | 1800 | ≥1750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3200mAh-3.2V | 3.2 | 3200 | ≥3100 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3600mAh-3.2V | 3.2 | 3600 | ≥3550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3800mAh-3.2V | 3.2 | 3800 | ≥3750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-4000mAh-3.2V | 3.2 | 4000 | ≥3950 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFRP18650-1100mAh-3.2V | 3.2 | 1100 | ≥1050 | 2C | 5C | 5C | 10C | 30C |
| IFRP26650-3000mAh-3.2V | 3.2 | 3000 | ≥2900 | 1C | 3C | 2C | 5C | 10C |
| INR18650-2200mAh-3.6V | 3.6 | 2200 | ≥2150 | 0.5C | 1C | 0.5C | 1C | 3C |
| INR18650-2600mAh-3.6V | 3.6 | 2600 | ≥2550 | 0.3C | 0.5C | 0.5C | 1C | 2C |
| INR26650-5000mAh-3.6V | 3.6 | 5000 | ≥4900 | 0.5C | 1C | 0.5C | 1C | 2C |
Application of Lithium Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒ Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒ Electric drill, electric saw, lawn mower and so on
⇒ Remote control cars, boat, aircraft, toys
⇒ Medical devices, equipment and portable equipment
⇒ Bluetooth, GPS, Wearable device, Power supply, Wireless
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
Advantages:
High energy particle density.
Always stable with a certain voltage.
Reduce environmental pollution.
Long service life
Safe
Capacity and voltage are always stable.
High safety when the battery automatically disconnects when fully charged.
Batteries are manufactured and distributed from the factory
1-way current, low self-discharge capacity
Battery covered by PVC
