Product Details:
|
| Battery Type: | Lithium Ion Battery | Series: | Lifepo4 Battery 18650 |
|---|---|---|---|
| Combination: | 2S1P 18650 | Capacity: | 1500mah |
| Voltage: | 6.4v | Printing: | Standard Or Customized |
| High Light: | 2S1P Lithium Iron Phosphate Battery,IFR18650 Lithium Iron Phosphate Battery,Solar Lighting Rechargeable Lifepo4 Battery |
||

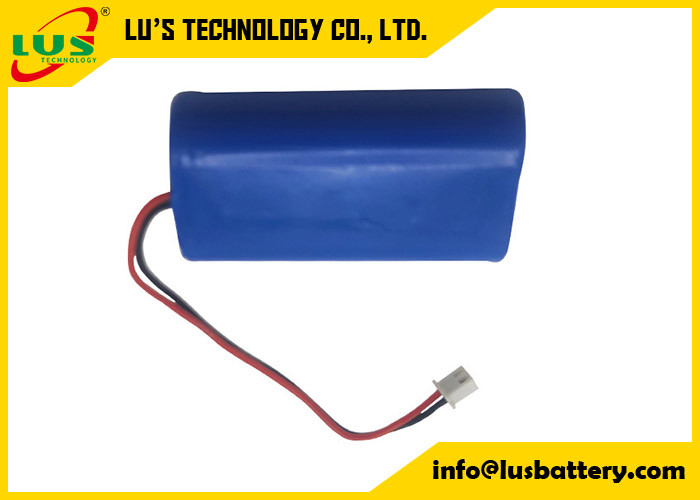

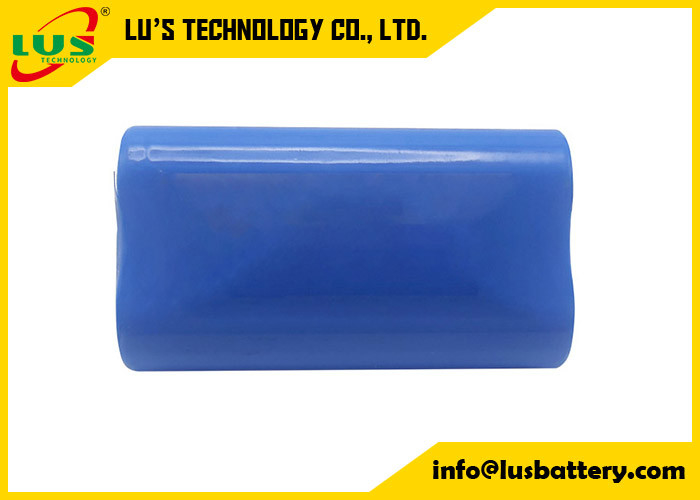

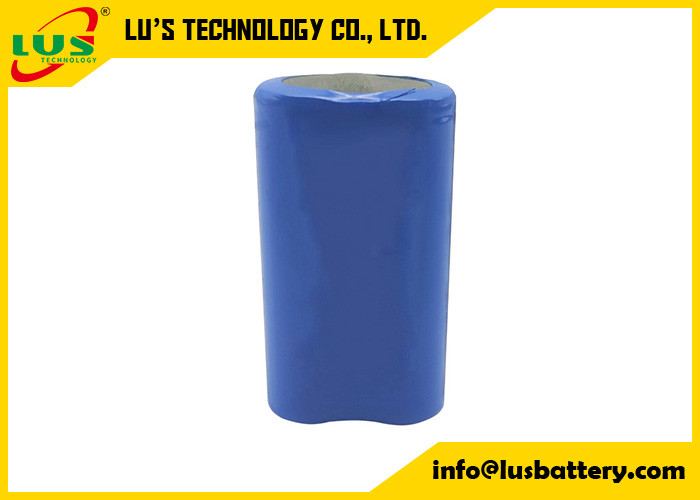

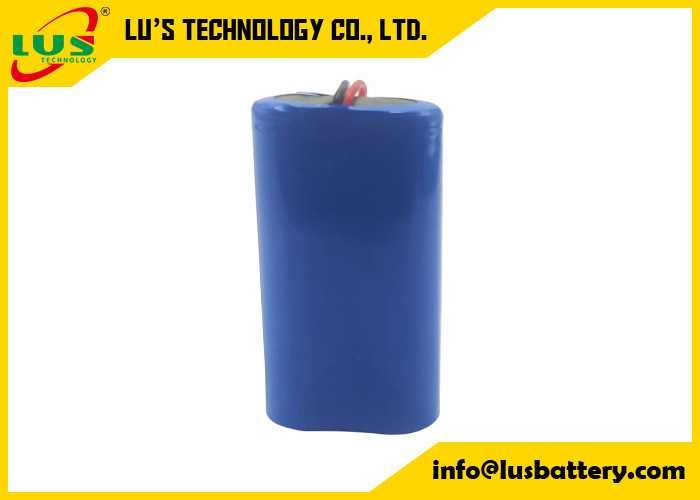

18650 2S1P Lithium Iron Phosphate Battery 6.4v 1.5ah For Solar LED Lighting
Lithium iron phosphate battery 18650 2S1P rechargeable 1500mah 6.4v 1.5ah lifepo4 battery for Solar LED lighting
Lithium iron phosphate battery 2S1P IFR18650 + PCM (9.6Wh) 6.4V 1.5Ah
LiFePO4 6.4V 1.5Ah rechargeable battery pack made of cylindrical 18650 cells with PCB for full protection, with high energy density, small sizes
6.4V battery pack technical:
Battery type: Lithium ion battery pack
Series: Lifepo4 battery
Size : 18650
Capaity: 1.5ah , 1500mah
Voltage: 3.2V single celll, 2S1P 6.4V
Resistance: 140mΩ
Battery pack dimension: 37*20*70mm
Weight : 90g
Charge current: 0.3A
Charge voltage: 7.2v
Discharge current: 1.5Ah
Discharge voltage : 5.0v
Hot sale model 18650 / 26650
| Cell model | Voltage/V | Capacity/mAh | Capacity/mAh | Charge current | Discharge current | |||
| Standard | Max. | Standard | Rapid | Max. | ||||
| IFR18650-1600mAh-3.2V | 3.2 | 1600 | ≥1550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR18650-1800mAh-3.2V | 3.2 | 1800 | ≥1750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3200mAh-3.2V | 3.2 | 3200 | ≥3100 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3600mAh-3.2V | 3.2 | 3600 | ≥3550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3800mAh-3.2V | 3.2 | 3800 | ≥3750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-4000mAh-3.2V | 3.2 | 4000 | ≥3950 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFRP18650-1100mAh-3.2V | 3.2 | 1100 | ≥1050 | 2C | 5C | 5C | 10C | 30C |
| IFRP26650-3000mAh-3.2V | 3.2 | 3000 | ≥2900 | 1C | 3C | 2C | 5C | 10C |
| INR18650-2200mAh-3.6V | 3.6 | 2200 | ≥2150 | 0.5C | 1C | 0.5C | 1C | 3C |
| INR18650-2600mAh-3.6V | 3.6 | 2600 | ≥2550 | 0.3C | 0.5C | 0.5C | 1C | 2C |
| INR26650-5000mAh-3.6V | 3.6 | 5000 | ≥4900 | 0.5C | 1C | 0.5C | 1C | 2C |
Application of Lithium Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒ Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒ Electric drill, electric saw, lawn mower and so on
⇒ Remote control cars, boat, aircraft, toys
⇒ Medical devices, equipment and portable equipment
⇒ Bluetooth, GPS, Wearable device, Power supply, Wireless
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
Advantages:
High energy particle density.
Always stable with a certain voltage.
Reduce environmental pollution.
Long service life
Safe
Capacity and voltage are always stable.
High safety when the battery automatically disconnects when fully charged.
Batteries are manufactured and distributed from the factory
1-way current, low self-discharge capacity
Battery covered by PVC
