Product Details:
|
| Battery Type: | Lithium Ion Battery | Combination: | 3S2P |
|---|---|---|---|
| Cell Model: | 18650 | Voltage: | 11.1v |
| Capacity: | 5200mah | ||
| High Light: | Vacuum Cleaner Rechargeable Lithium Battery,3S2P Lithium Ion Battery Pack,Vacuum Cleaner 18650 Lithium Ion Battery |
||

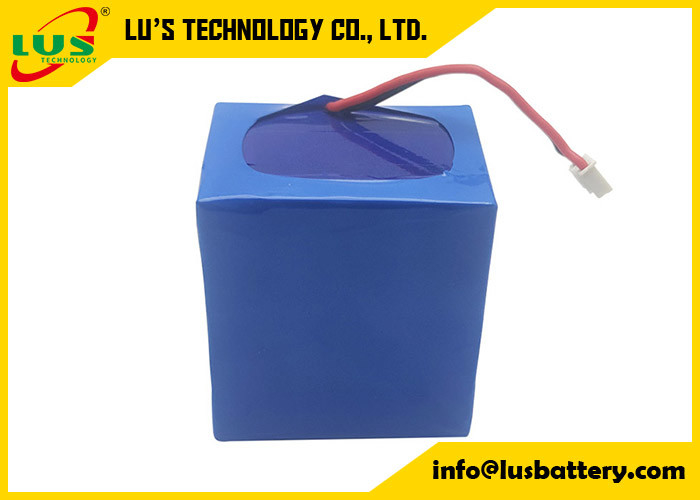

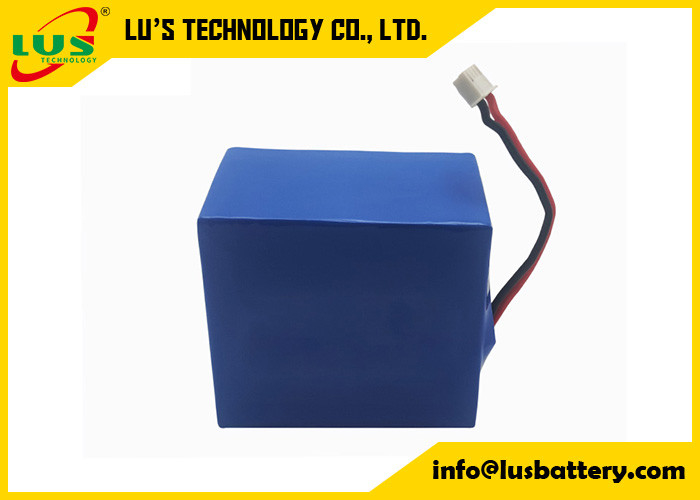

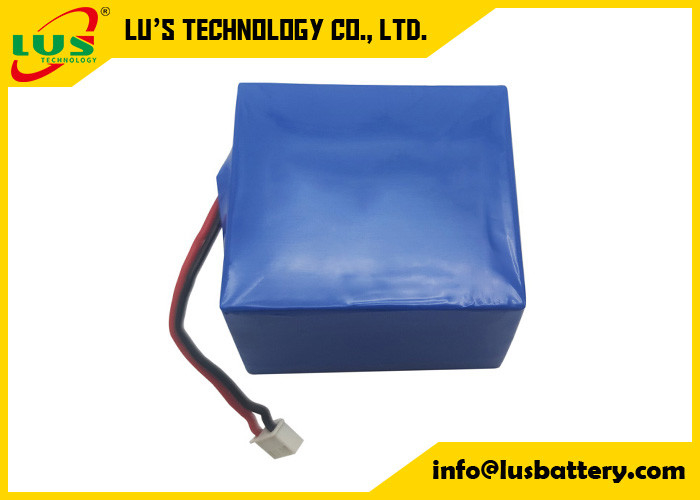

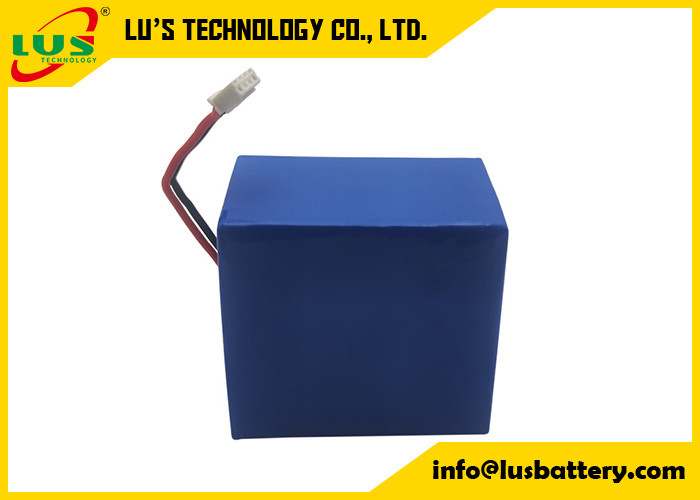

3S2P 18650 Rechargeable Lithium Battery Pack 11.1V 5.2Ah For Vacuum Cleaner
3s2p 18650 lithium ion battery 11.1V 5.2Ah lithium ion Battery Pack for Vacuum cleaner
3S2P 18650 Battery Pack 11.1 V 5200mAh with PCB Protection
Nominal capacity 5200mAh
Nominal voltage 11.1V
Nominal energy 57.72Wh
Charging voltage 12.60 ± 0.05V
Charging current 1040mA 丨2600mA
Charging time 6.0 hours 丨4.0 hours
Charging method CC - CV
Continuous discharge current 1040mA 丨4000mA
Peak discharge current 6A
Discharge end voltage 8.25V
Dimensions 37mm丨56mm丨72mm
Typical weight 298g
Charge temperature range +10 ~ +45°C
Discharge temperature range -20 ~ +60°C
Storage temperature -20 ~ +45°C
Hot sale model 18650 / 26650
| Cell model | Voltage/V | Capacity/mAh | Capacity/mAh | Charge current | Discharge current | |||
| Standard | Max. | Standard | Rapid | Max. | ||||
| IFR18650-1600mAh-3.2V | 3.2 | 1600 | ≥1550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR18650-1800mAh-3.2V | 3.2 | 1800 | ≥1750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3200mAh-3.2V | 3.2 | 3200 | ≥3100 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3600mAh-3.2V | 3.2 | 3600 | ≥3550 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-3800mAh-3.2V | 3.2 | 3800 | ≥3750 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFR26650-4000mAh-3.2V | 3.2 | 4000 | ≥3950 | 0.5C | 1C | 0.5C | 1C | 3C |
| IFRP18650-1100mAh-3.2V | 3.2 | 1100 | ≥1050 | 2C | 5C | 5C | 10C | 30C |
| IFRP26650-3000mAh-3.2V | 3.2 | 3000 | ≥2900 | 1C | 3C | 2C | 5C | 10C |
| INR18650-2200mAh-3.6V | 3.6 | 2200 | ≥2150 | 0.5C | 1C | 0.5C | 1C | 3C |
| INR18650-2600mAh-3.6V | 3.6 | 2600 | ≥2550 | 0.3C | 0.5C | 0.5C | 1C | 2C |
| INR26650-5000mAh-3.6V | 3.6 | 5000 | ≥4900 | 0.5C | 1C | 0.5C | 1C | 2C |
Application of Lithium Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒ Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒ Electric drill, electric saw, lawn mower and so on
⇒ Remote control cars, boat, aircraft, toys
⇒ Medical devices, equipment and portable equipment
⇒ Bluetooth, GPS, Wearable device, Power supply, Wireless
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
Advantages:
High energy particle density.
Always stable with a certain voltage.
Reduce environmental pollution.
Long service life
Safe
Capacity and voltage are always stable.
High safety when the battery automatically disconnects when fully charged.
Batteries are manufactured and distributed from the factory
1-way current, low self-discharge capacity
Battery covered by PVC
Other hot sale lithium ion battery pack:
