Product Details:
|
| Part Number: | ER18505 | Size: | A |
|---|---|---|---|
| Capacity: | 4.0ah | Terminals: | Tab / Pin / Wires / Connector |
| Weight: | 28g | OEM: | Welcomed |
| High Light: | Li-SOCl2 3.6V Lithium Battery,Nonrechargeable Li-SOCl2 Battery,ER18505 3.6V Lithium Battery |
||
ER18505 Nonrechargeable 3.6V Lithium Battery Li-SOCL₂ 4000mAh Single-Use 3.6V Lithium Thionyl Chloride Battery ER18505 3.6 V Lithium-Thionylchlorid 4000 mAh Replacement Battery
It is a round cell battery in 3.6V with a capacity of 4000mAh, which is used in very many different LoRaWAN sensors
ER18505 A 3.6V Primary Lithium Battery
Voltage: 3.6V Nominal Capacity: 4.0Ah
High and stable operating voltage
Higher power and higher energy for the whole battery life
Superior drain capability
Higher power applications
Low self-discharge rate (less than 1% after 1 year of storage at +20°C)
Battery life higher than 10 years, depending on the application
Hermetic glass-to-metal sealing
Avoid leakage, key for a higher than 10 year battery life
Non-flammable electrolyte
Safer operation in case of abuse
Description of ER18505 Battery Lithium Primary 3.6V:
| Type | Primary Lithium Battery |
| Model | ER18505 |
| Voltage | 3.6V |
| Capacity | 4000mah |
| Max constant current of discharge | 120mA |
| Max discharge current(pulse) | 200mA |
| Weight | 30g |
| Operating temperature range | -55～85℃ |
Main Applications for Lithium Battery LISOCL2:
Utility Metering,
Automatic Meter Reading,
Medical Electronics,
Memory Backup,
Tracking Systems,
Law Enforcement (RFID),
Earthquake Detectors,
Digital Control Devices,
Remote Monitory Systems,
Electronic Toll Tags,
Scientific Instruments,
Portable Communication
Equipment,
Military Radio Stations,
And other electric powered devices requiring small size,
High power batteries.
Important Notes:
Do not short or charge the battery.
Over-discharging, crushing, incinerating, and disassembling the battery are prohibited.
Do not heat/use the battery beyond the permitted temperature range.
Characteristics:
1. High energy density (620Wh/Kg); which is the highest among all lithium batteries.
2. High open circuit voltage (3.66V for single cell), high operating voltage (varying with load, normally ranging from 3.3V to 3.6V).
3. Wide range of operating temperature(-55C~+85C).
4. Stable voltage and current, over 90% of the cell capacity is discharged at high plateau voltage.
5. Long operating time (over 8 years) for continuous low current discharge with medium current pulses.
6. Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).
| International Model Size | Model Number | Max Dimension | Weight | Nominal | End Voltage | Nominal Capacity | Max Continuous Operating Current | Max Pulse Discharge Current |
| mm | g | Voltage | V | mAh | mA | mA | ||
| AAA | ER10450 | φ10.4X45.3 | 8 | 3.6 | 2 | 600(1mA) | 25 | 60 |
| ER11120 | φ11.5X12.0 | 2 | 3.6 | 2 | 100(0.2mA) | 2 | 4 | |
| ER13150 | φ13.5X15.0 | 6 | 3.6 | 2 | 450(0.5mA) | 10 | 30 | |
| L31 | ER13460 | φ13.5X46.0 | 14 | 3.6 | 2 | 1500(1mA) | 60 | 100 |
| 1/2AA | ER14250 | φ14.5X25.0 | 10 | 3.6 | 2 | 1200(0.5mA) | 20 | 45 |
| 2/3AA | ER14335 | φ14.5X33.5 | 13 | 3.6 | 2 | 1650(1.3mA) | 75 | 150 |
| AA | ER14505 | φ14.5X50.5 | 22 | 3.6 | 2 | 2400(2mA) | 100 | 200 |
| 2/3A | ER17335 | φ17.0X33.5 | 21 | 3.6 | 2 | 2100(2mA) | 100 | 200 |
| ER17505 | φ17.0X50.5 | 25 | 3.6 | 2 | 3400(4mA) | 120 | 200 | |
| A | ER18505 | φ18.8X50.5 | 30 | 3.6 | 2 | 4000(2mA) | 120 | 200 |
| C | ER26500 | φ26.2X50.0 | 53 | 3.6 | 2 | 8500(3mA) | 130 | 300 |
| D | ER34615 | φ34.0X61.5 | 108 | 3.6 | 2 | 19000(2mA) | 200 | 400 |
| International Model Size | Model Number | Max Dimension | Weight | Nominal | End Voltage | Nominal Capacity | Max Continuous Operating Current | Max Pulse Discharge Current |
| mm | g | Voltage | V | mAh | mA | mA | ||
| 1/2AA | ER14250M | φ14.5X25.2 | 10 | 3.6 | 2 | 750(4mA) | 120 | 250 |
| 2/3AA | ER14335M | φ14.5X33.5 | 13 | 3.6 | 2 | 1200(4mA) | 300 | 500 |
| AA | ER14505M | φ14.5X50.5 | 22 | 3.6 | 2 | 1800(10mA) | 500 | 1000 |
| 2/3A | ER17335M | φ17.0X33.5 | 21 | 3.6 | 2 | 1700(5mA) | 500 | 1000 |
| A | ER18505M | φ18.8X50.5 | 30 | 3.6 | 2 | 3200(10mA) | 800 | 1500 |
| C | ER26500M | φ26.2X50.0 | 53 | 3.6 | 2 | 6500(10mA) | 1000 | 2000 |
| D | ER34615M | φ34.0X61.5 | 108 | 3.6 | 2 | 14000(10mA) | 2000 | 3000 |
| Application:Utility Metering, Automatic Meter Reading, Medical Electronics, Memory Backup, Tracking Systems, Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Remote Monitory Systems, Electronic Toll Tags, Scientific Instruments, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring small size, high power batteries. | ||||||||

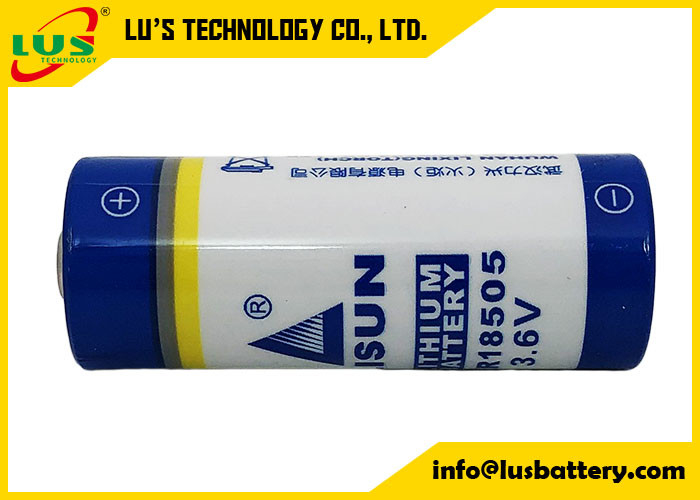

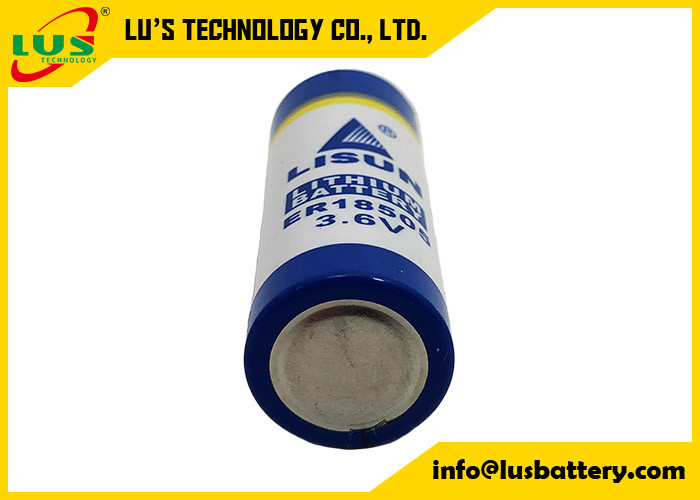

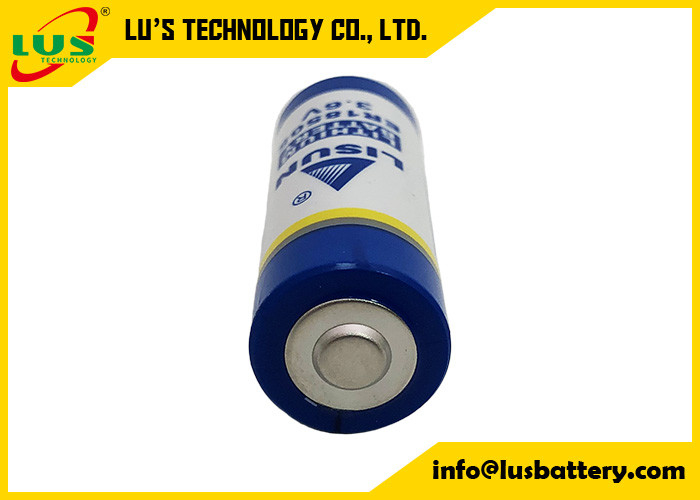

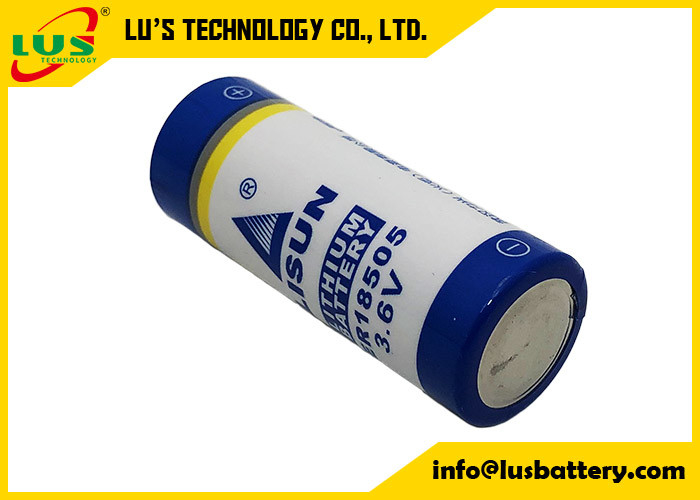

ER18505 Picture:
