Product Details:
|
| Model: | ER14250 | Material: | Li Socl 2 |
|---|---|---|---|
| Jacket: | Waterproof Case | Voltage: | 3.6v |
| Capacity: | 1200mah | Terminals: | Depends On You |
| High Light: | 3.6V 1200mAh Bobbin Cell,1/2-AA Bobbin Cell,ER14250 Primary Lithium Battery |
||

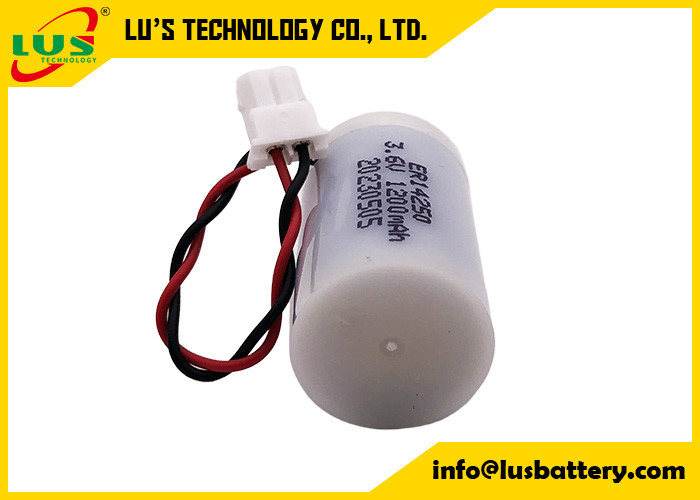

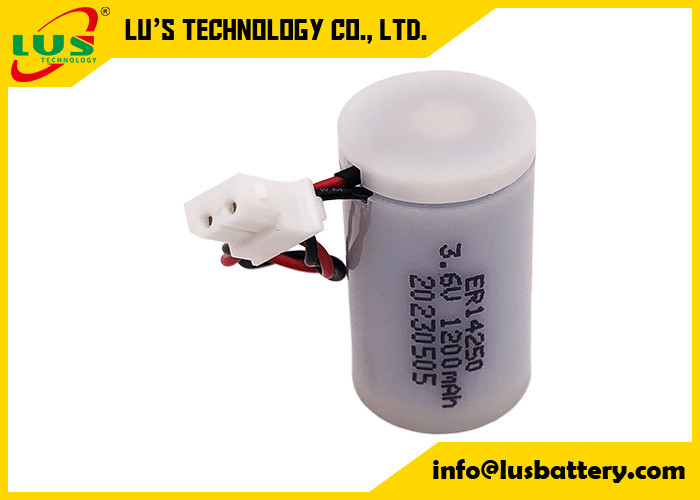

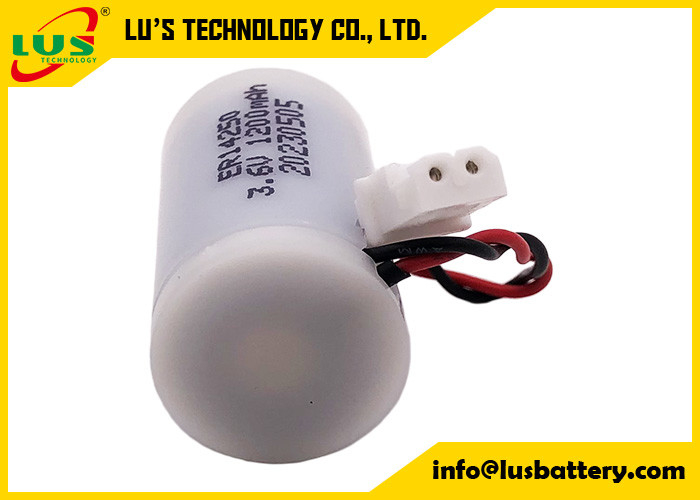

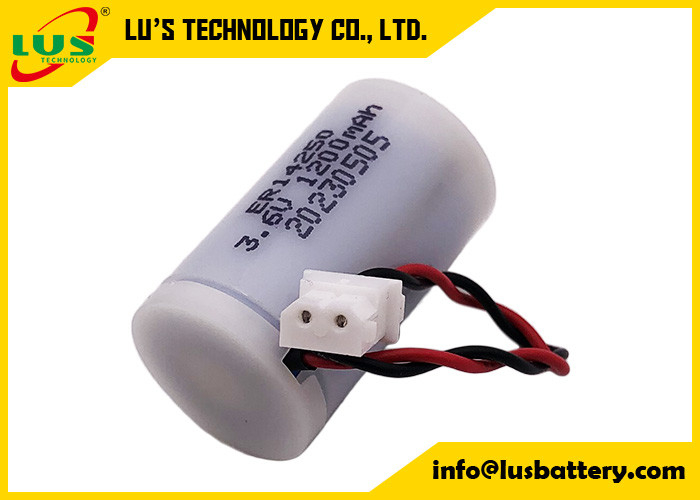

ER14250 3.6V 1200mAh 1/2-AA BOBBIN CELL ER14250 1/2 AA 3.6V Primary Lithium Battery
The ER14250 1/2AA size, 3.6V, 1200mAh Lithium-Thionyl Chloride Battery is used in intelligent instruments, including water meter, electricity meter, gas meter, industrial PC, computer RAM/CMOS circuit memory power, medical devices, radio communication equipment, CNC machine tools, taxi meter, etc.
ER14250: The Reliable and Long-lasting Lithium Battery
3.6v lithium battery ER14250 Technical data:
| Model | ER14250 |
| Voltage | 3.6V |
| Capacity | 1.2Ah |
| Max constant current of discharge | 50mA |
| Max discharge current(pulse) | 100mA |
| Weight | 10g |
| Operating temperature range | -55~85℃ |
| Jacket | PVC or Plastic case |
| Terminals | Pins/tabs/customized |
| Samples | Available |
Application:
Utility Metering
Automatic Meter Reading
Medical Electronics
Memory Backup
Tracking Systems
Law Enforcement (RFID)
Earthquake Detectors
Digital Control Devices
Remote Monitory Systems
Electronic Toll Tags
Scientific Instruments
Portable Communication Equipment
And other electric powered devices requiring small size
High power batteries.
Lithium Thionyl Chloride Battery 3.6V List:
| International Model Size | Model Number | Max Dimension | Weight | Nominal | End Voltage | Nominal Capacity | Max Continuous Operating Current | Max Pulse Discharge Current |
| mm | g | Voltage | V | mAh | mA | mA | ||
| AAA | ER10450 | φ10.4X45.3 | 8 | 3.6 | 2 | 600(1mA) | 25 | 60 |
| ER11120 | φ11.5X12.0 | 2 | 3.6 | 2 | 100(0.2mA) | 2 | 4 | |
| ER13150 | φ13.5X15.0 | 6 | 3.6 | 2 | 450(0.5mA) | 10 | 30 | |
| L31 | ER13460 | φ13.5X46.0 | 14 | 3.6 | 2 | 1500(1mA) | 60 | 100 |
| 1/2AA | ER14250 | φ14.5X25.0 | 10 | 3.6 | 2 | 1200(0.5mA) | 20 | 45 |
| 2/3AA | ER14335 | φ14.5X33.5 | 13 | 3.6 | 2 | 1650(1.3mA) | 75 | 150 |
| AA | ER14505 | φ14.5X50.5 | 22 | 3.6 | 2 | 2400(2mA) | 100 | 200 |
| 2/3A | ER17335 | φ17.0X33.5 | 21 | 3.6 | 2 | 2100(2mA) | 100 | 200 |
| ER17505 | φ17.0X50.5 | 25 | 3.6 | 2 | 3400(4mA) | 120 | 200 | |
| A | ER18505 | φ18.8X50.5 | 30 | 3.6 | 2 | 4000(2mA) | 120 | 200 |
| C | ER26500 | φ26.2X50.0 | 53 | 3.6 | 2 | 8500(3mA) | 130 | 300 |
| D | ER34615 | φ34.0X61.5 | 108 | 3.6 | 2 | 19000(2mA) | 200 | 400 |
| International Model Size | Model Number | Max Dimension | Weight | Nominal | End Voltage | Nominal Capacity | Max Continuous Operating Current | Max Pulse Discharge Current |
| mm | g | Voltage | V | mAh | mA | mA | ||
| 1/2AA | ER14250M | φ14.5X25.2 | 10 | 3.6 | 2 | 750(4mA) | 120 | 250 |
| 2/3AA | ER14335M | φ14.5X33.5 | 13 | 3.6 | 2 | 1200(4mA) | 300 | 500 |
| AA | ER14505M | φ14.5X50.5 | 22 | 3.6 | 2 | 1800(10mA) | 500 | 1000 |
| 2/3A | ER17335M | φ17.0X33.5 | 21 | 3.6 | 2 | 1700(5mA) | 500 | 1000 |
| A | ER18505M | φ18.8X50.5 | 30 | 3.6 | 2 | 3200(10mA) | 800 | 1500 |
| C | ER26500M | φ26.2X50.0 | 53 | 3.6 | 2 | 6500(10mA) | 1000 | 2000 |
| D | ER34615M | φ34.0X61.5 | 108 | 3.6 | 2 | 14000(10mA) | 2000 | 3000 |
| Application:Utility Metering, Automatic Meter Reading, Medical Electronics, Memory Backup, Tracking Systems, Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Remote Monitory Systems, Electronic Toll Tags, Scientific Instruments, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring small size, high power batteries. | ||||||||
Drawing:
