Product Details:
|
| Cells Type: | 18650/26650/21700/32650/32700 | Color: | Black, Grey Or Customized |
|---|---|---|---|
| Lead Time: | 3-5 Days | Material: | ABS+PC, ABS |
| Shipping: | Express, Sea Or Air | Small Order: | Welcomed |
| High Light: | 1x3 18650 Battery Spacer,Plastic 18650 Battery Holder |
||

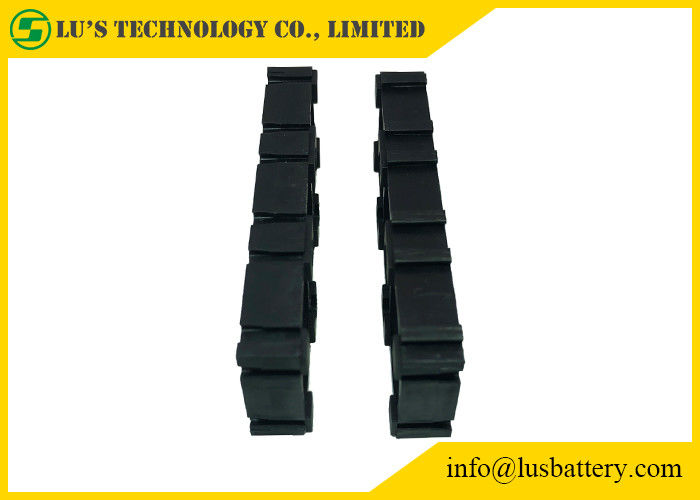

3pcs 1x3 18650 Battery Spacer Plastic Holder 3×1 Battery Cell Spacer/Holder a cylindrical battery spacer 21700
3x1 18650 Battery Cell Holder, Spacer, Lithium Ion Battery Support Bracket
18650 1×3 Battery Cell Spacer/Holder is a cylindrical battery spacer, made of flame retardant ABS+PC materials, with high-temperature resistance and crack resistance.
There are slots on the edge of the holder, can be combined into many different sizes and shapes of the battery pack.
This Battery Holder is compatible with our 18650 battery which you need to buy separately.
Application:
Design for Radiating Complex Battery Packs. Safe and Stable, Perfect Build for eBike!
ADVANTAGE:
Very simple to operation
Very flexible, it is easy to assemble any type of battery packs
Radiating during high rate discharge.
Makes your battery pack Solid and Reliable!
| Super Features: |
| Stronger Connection: The traditional battery holder replaces the traditional ordinary glue, which is the best choice for the battery combination.Flexible disassembled or assembled with your requirements. |
| Free Combination: The battery holder has a card slot on the edge, you can freely combine the battery. |
| Easy To Dissipate Heat: The battery pack bracket supports the battery, which makes the battery easy to dissipate and maintain. |
| High Quality: It is made of high-quality plastic and is small in size and easy to store. |
| Application Range: Cylindrical Battery Bracket/Battery Holder is suitable for 18650/21700/26650/3260/ lithium-ion batteries, the number can meet your needs. |
| Advantage: |
| Drop-resistant and Explosion-proof |
| Good Stability |
| Variety of size/custom size |
| Life Service support |
| Free Battery Pack and BMS Technology Assessment |
LUS Plastic holders list:
| Name | Description/MM | Diameter/MM | Distance/MM | Weight/G | Remark |
| 18650 battery holders | |||||
| 18650 1P spacers | 20.2*20.2 | 18.2/18.5 | - | 1.6 | |
| 18650 2P spacers | 40.5*20.25 | 18.2/18.4/18.5 | 20.2 | 2.6 | |
| 18650 3P spacers | 60.75*20.25 | 18.2/18.4/18.5 | 20.2 | 3.6 | |
| 18650 2P spacers | 765A and 12.65x12.65 nickels | 18.4/18.5 | 19.5 | 2.6 | |
| 18650 3P spacers | 765A and 12.65x12.65 nickels | 18.4/18.5 | 19.5 | 3.6 | |
| 18650/3*5 | 101.25*60.75 | 18.2/18.4/18.5 | 20.2 | 12.3 | |
| 18650/4*5 | 107.25*81 | 18.2/18.4/18.5 | 20.2 | 17.5 | |
| 18650/3*6 | 122.7*60.75 | 18.4 | 20.2 | 13 | |
| 18650/4*6 | 122.7*81 | 18.4 | 20.2 | 21 | |
| 26650 spacers | |||||
| 26650 2P | 55*27.5 | 26.3 | 28 | 3.6 | |
| 26650 3P | 87.5*27.5 | 26.3 | 28 | 6 | |
| 32650 battery holders | |||||
| 32650 2P | 70.5*36 | 32.5 | 34.5 | 6.5 | |
| 32650 3P | 105*36 | 32.5 | 34.5 | 8.5 | |
| 32650 2x3 | |||||
| 21700 HOLDERS | |||||
| 21700 2p | 46.8*23.4 | 21.2/21.7 | 23.4 | 3.1 | |
| 217002p | 46.8*23.4 | 21.2 | 23 | 3.1 | |
| 21700 3p | 69.2*23.4 | 21.2/21.7 | 23.4 | 4.3 | |
| 21700 3p | 69.2*23.4 | 21.2 | 23 | 4.3 | |
| 21700-3x4 | 69.2*23.4 | 21.7 | 23.4 | ||
| 21700S 3P | 21.2/21.7 | 22.7 | 3.1 | ||
| 21700s 4p | 21.2/21.7 | 22.7 | 3.1 | ||
| 21700s 5p | 21.2/21.7 | 22.7 | |||
| 21700s 6p | 21.2/21.7 | 22.7 | |||
| 21700s 10p | 21.2/21.7 | 22.7 | |||
| 21700s 13p | 21.2/21.7 | 22.7 | |||
| 18650 Dislocation holder | |||||
| 10P | 18.4 | 19.5 | 5 | ||
| 13P | 18.4 | 19.5 | 6.5 | ||
| 2P | 18.4 | 19.5 | 1 | ||
| 3P | 18.4 | 19.5 | 1.5 | ||
| 4P | 18.4 | 19.5 | 2 | ||
| 5P | 18.4 | 19.5 | 2.5 | ||
| 6P | 18.4 | 19.5 | 3 | ||
| 186503P Triangular bracket | 18.4 | 19.5 | 2 | ||
More battery accesories interested please feel free to contact us for the detial
Such as Pure nickel strips for 18650 18500 26650 32650 21700 32700 Ni plated steel strip
