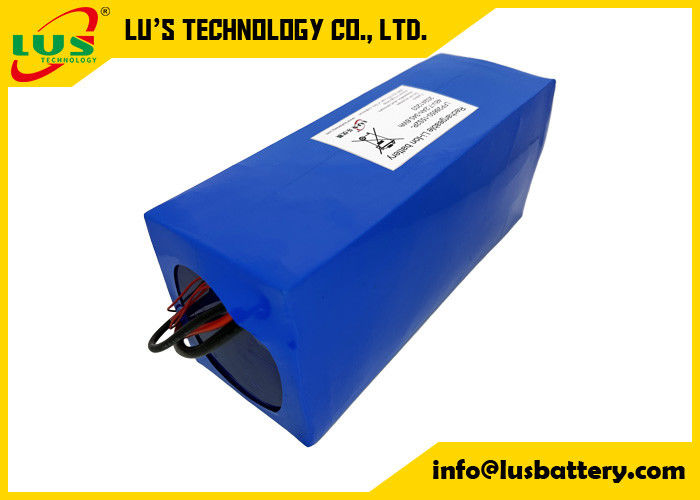

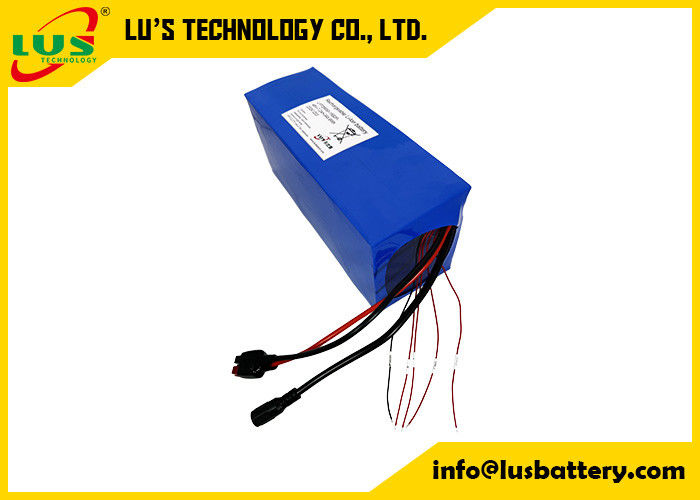

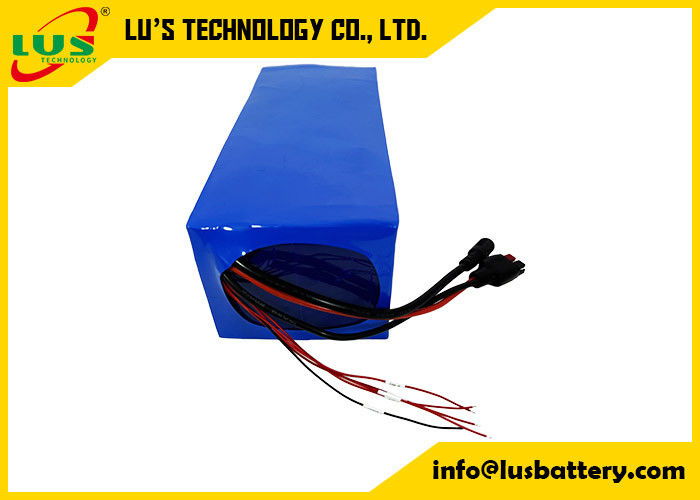

48v rechargeable li-ion battery 7.2Ah lithium battery LFP26650 15S2P battery pack 48V Lithium iron Phosphate Battery 7200mah lithium ion battery 48V battery with size 235*100*85mm and RS485 comunications protocol lithium battery module
This is 48V lithium battery made with LFP26650 battery cell 15S2P with RS485 comnunication functins
LUS battery welcome any customizations .
Li ion battery 48V data sheet
| Battery type |
Lithium ion battery 48V 7.2ah Lifepo4 battery pack |
| Battery cell |
LFP26650 |
| Combination |
15SS2p |
| Voltage |
48V |
| Capacity |
7.2AH |
| Communication |
RS485 |
| Weight |
2.8Kg |
| Size |
235*100*85 |
| Terminals |
Depends on your needed |
Hot sale model 18650 / 26650
| Cell model |
Voltage/V |
Capacity/mAh |
Capacity/mAh |
Charge current |
Discharge current |
| Standard |
Max. |
Standard |
Rapid |
Max. |
| IFR18650-1600mAh-3.2V |
3.2 |
1600 |
≥1550 |
0.5C |
1C |
0.5C |
1C |
3C |
| IFR18650-1800mAh-3.2V |
3.2 |
1800 |
≥1750 |
0.5C |
1C |
0.5C |
1C |
3C |
| IFR26650-3200mAh-3.2V |
3.2 |
3200 |
≥3100 |
0.5C |
1C |
0.5C |
1C |
3C |
| IFR26650-3600mAh-3.2V |
3.2 |
3600 |
≥3550 |
0.5C |
1C |
0.5C |
1C |
3C |
| IFR26650-3800mAh-3.2V |
3.2 |
3800 |
≥3750 |
0.5C |
1C |
0.5C |
1C |
3C |
| IFR26650-4000mAh-3.2V |
3.2 |
4000 |
≥3950 |
0.5C |
1C |
0.5C |
1C |
3C |
| IFRP18650-1100mAh-3.2V |
3.2 |
1100 |
≥1050 |
2C |
5C |
5C |
10C |
30C |
| IFRP26650-3000mAh-3.2V |
3.2 |
3000 |
≥2900 |
1C |
3C |
2C |
5C |
10C |
| INR18650-2200mAh-3.6V |
3.6 |
2200 |
≥2150 |
0.5C |
1C |
0.5C |
1C |
3C |
| INR18650-2600mAh-3.6V |
3.6 |
2600 |
≥2550 |
0.3C |
0.5C |
0.5C |
1C |
2C |
| INR26650-5000mAh-3.6V |
3.6 |
5000 |
≥4900 |
0.5C |
1C |
0.5C |
1C |
2C |
Application of Lithium Battery
⇒ UPS, Solar, Wind, Mobile generator, Back up power
⇒ Solar power bank, Solar LED lighting, Solar street light
⇒ Scooter, E-bike, Golf cart, E-motor, E-tour car, tricycle
⇒ Electric drill, electric saw, lawn mower and so on
⇒ Remote control cars, boat, aircraft, toys
⇒ Medical devices, equipment and portable equipment
⇒ Bluetooth, GPS, Wearable device, Power supply, Wireless
1. Back-up System and UPS: Telecom Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment.
2. Energy Storage: Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome / Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehicle.
3. Other Applications: Security and Electronics / Mobile POS, Mining Light/ Torch / LED Light / Emergency Light / LED Backup / Engine Starting Battery,etc.
The lifepo4 battery pack is widely used for RV, Camper, Yacht, Golf cart, Solar energy storage system, electric bicycle, electric bike, electric wheelchair, power tools, electric scooter,emergency light,etc
Advantages:
-
High energy particle density.
-
Always stable with a certain voltage.
-
Reduce environmental pollution.
-
Long service life
-
Safe
-
Capacity and voltage are always stable.
-
High safety when the battery automatically disconnects when fully charged.
-
Batteries are manufactured and distributed from the factory
-
1-way current, low self-discharge capacity
-
Battery covered by PVC
