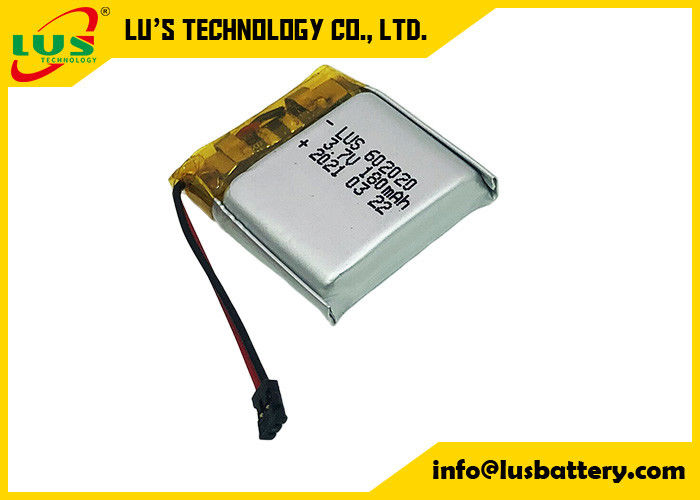

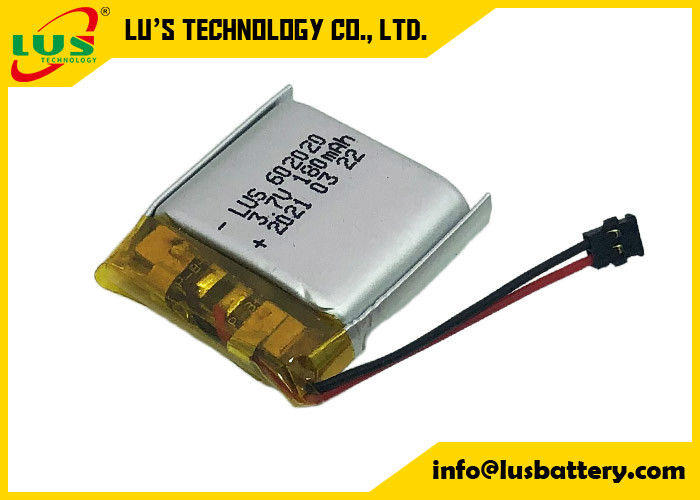

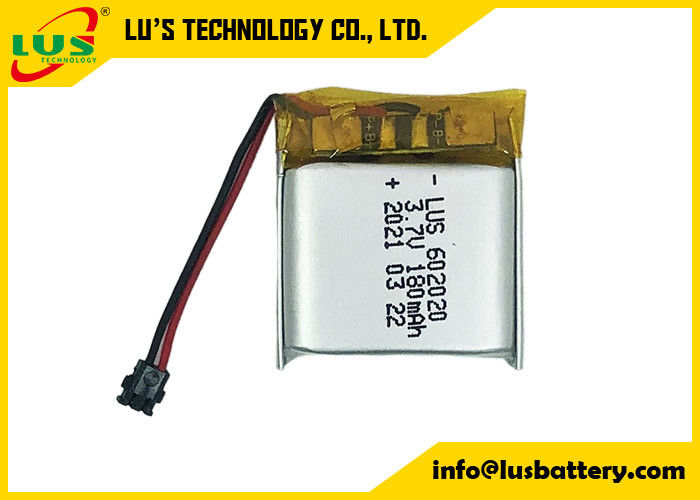

Part number: LP602020
Voltage:3.7V
Capacity:180mAh
Dimension :6mm x 20mm x 20mm
Standard charge current :0.5C (180mA)
Standard discharge current:0.5C (180mA)
Max. continous charge current:1C (180mA)
Max. continous Discharge current:1C (180mA)
|
Item
|
Rating
|
|
Model
|
LP602020
|
|
Nominal capacity
|
180mAh
|
|
Nominal voltage
|
3.7V
|
|
Cut-off charge voltage
|
4.2V
|
|
Cut-off discharge voltage
|
3.0V
|
|
Initial impedance
|
Max: 140mΩ
|
|
Weight
|
Approx:3.7g
|
|
Standard Charge
|
0.2C CC(constant current) charge to 4.2V,then
CV(constant voltage 4.2V)till current decline to ≤0.01C
|
|
Max. Constant Charging Current
|
180mA(1.0C)
|
|
Standard Discharge
|
Discharge at 0.2 C5A to 3.0V
|
|
Max. Continuous Discharging Current
|
180mA(1.0C)
|
|
Operating Temperature
|
Charge 0～+45℃
|
|
Discharge –20～+60℃
|
|
Storage Temperature
|
-10～+55℃≤1 month
|
|
-10～+45℃≤3months
|
|
-10～+25℃≤12months
|
|
Storage Humidity
|
45-75%RH
|
Appearance
There shall be no such defect as flaw, crack, rust, leakage, which may adversely affect
commercial value of battery.
Standard Test Conditions:
Test should be conducted with new batteries within one week after shipment from our factory
and the cells shall not be cycled more than five times before the test.
Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃
and relative humidity of 45~85%.
If it is judged that the test results are not affected by such conditions, the tests may be
conducted at temperature 15~30℃ and humidity 25~85%RH.
More rechargeable lithium ion battery list:
| Model |
Capacity(mah) |
Dimension(mm) |
| T±0.1 |
W±0.5 |
L±0.5 |
| 1254 |
60 |
5.4 |
12 |
|
| 1040 |
35 |
4.2 |
10 |
|
| 1038 |
30 |
3.8 |
10 |
|
| 301030 |
70 |
3.0 |
10.0 |
30.5 |
| 301525 |
80 |
3.0 |
15.0 |
25.5 |
| 302020 |
90 |
3.0 |
20.0 |
20.5 |
| 302025 |
110 |
3.0 |
20.0 |
25.5 |
| 302030 |
120 |
3.0 |
20.0 |
30.5 |
| 303048 |
400 |
3.0 |
30.0 |
48.5 |
| 350926 |
60 |
3.0 |
9.0 |
26.5 |
| 380926 |
70 |
3.8 |
9.0 |
26.5 |
| 400808 |
18 |
4.0 |
8.1 |
8.2 |
| 400820 |
40 |
4.0 |
8.3 |
20.5 |
| 400835 |
100 |
4.0 |
8.3 |
35.5 |
| 400838 |
110 |
4.0 |
8.3 |
38.5 |
| 400909 |
25 |
4.0 |
9.1 |
9.2 |
| 400912 |
30 |
4.0 |
9.0 |
12.5 |
| 400930 |
80 |
4.0 |
9.0 |
30.5 |
| 401010 |
25 |
4.0 |
10.0 |
10.5 |
| 401012 |
35 |
4.0 |
10.0 |
12.5 |
| 401015 |
40 |
4.0 |
10.0 |
15.5 |
| 401020 |
55 |
4.0 |
10.0 |
15.5 |
| 401025 |
70 |
4.0 |
10.0 |
25.5 |
| 401030 |
90 |
4.0 |
10.0 |
30.5 |
| 401035 |
110 |
4.0 |
10.0 |
35.5 |
| 401230 |
110 |
4.0 |
12.0 |
30.5 |
| 401235 |
130 |
4.0 |
12.0 |
35.5 |
| 401730 |
150 |
4.0 |
17.0 |
30.5 |
| 402020 |
110 |
4.0 |
20.0 |
20.5 |
| 402025 |
150 |
4.0 |
20.0 |
25.5 |
| 402030 |
200 |
4.0 |
20.0 |
30.5 |
| 402035 |
230 |
4.0 |
20.0 |
35.5 |
| 402050 |
400 |
4.0 |
20.0 |
50.5 |
| 403040 |
400 |
4.0 |
30.0 |
40.5 |
| 403450 |
680 |
4.0 |
24.0 |
50.5 |
| 450833 |
110 |
4.5 |
8.3 |
33.0 |
| 400835 |
110 |
4.0 |
8.3 |
35.0 |
| 450845 |
165 |
4.5 |
8.3 |
45.0 |
| 450909 |
30 |
4.5 |
9.1 |
9.2 |
| 450912 |
35 |
4.5 |
9.0 |
12.5 |
| 500830 |
100 |
5.0 |
8.3 |
30.5 |
| 500843 |
160 |
5.0 |
8.3 |
43.0 |
| 500930 |
110 |
5.0 |
9.1 |
30.5 |
| 500935 |
130 |
5.0 |
9.1 |
35.5 |
| 500945 |
190 |
5.0 |
9.1 |
45.0 |
| 501012 |
43 |
5.0 |
10.0 |
12.5 |
| 501015 |
50 |
5.0 |
10.0 |
15.5 |
| 501030 |
110 |
5.0 |
10.0 |
30.5 |
| 501035 |
150 |
5.0 |
10.0 |
35.5 |
| 501220 |
85 |
5.0 |
12.0 |
20.5 |
| 501225 |
110 |
5.0 |
12.0 |
25.5 |
| 501230 |
120 |
5.0 |
12.0 |
30.5 |
| 501235 |
150 |
5.0 |
12.0 |
35.5 |
| 501240 |
200 |
5.0 |
12.0 |
40.5 |
| 501245 |
250 |
5.0 |
12.0 |
45.5 |
| 501525 |
150 |
5.0 |
15.0 |
25.5 |
| 501535 |
230 |
5.0 |
15.0 |
35.5 |
| 502020 |
150 |
5.0 |
20.0 |
20.5 |
| 502025 |
200 |
5.0 |
20.0 |
25.5 |
| 502030 |
250 |
5.0 |
20.0 |
30.5 |
| 502035 |
320 |
5.0 |
20.0 |
35.5 |
| 502248 |
500 |
5.0 |
22.0 |
48.5 |
| 502530 |
320 |
5.0 |
25.0 |
30.5 |
| 502535 |
400 |
5.0 |
25.0 |
35.5 |
| 502540 |
550 |
5.0 |
25.0 |
40.5 |
| 503030 |
450 |
5.0 |
30.0 |
30.5 |
| 503035 |
500 |
5.0 |
30.0 |
35.5 |
| 503040 |
600 |
5.0 |
30.0 |
40.5 |
| 503048 |
750 |
5.0 |
30.0 |
48.5 |
| 503759 |
1200 |
5.0 |
37.0 |
59.5 |
| 523450 |
1000 |
5.2 |
34.0 |
50.5 |
| 551012 |
50 |
5.5 |
10.0 |
12.5 |
| 551015 |
55 |
5.5 |
10.0 |
15.5 |
| 551145 |
250 |
5.5 |
11.3 |
45.5 |
| 551240 |
230 |
5.5 |
12.0 |
40.5 |
| 552535 |
450 |
5.5 |
10.1 |
35.5 |
| 581013 |
52 |
5.8 |
10.2 |
13.5 |
| 582728 |
400 |
5.8 |
27.2 |
28.5 |
| 601012 |
55 |
6.0 |
10.2 |
12.5 |
| 601015 |
60 |
6.0 |
10.2 |
15.5 |
| 601040 |
200 |
6.0 |
10.2 |
40.5 |
| 601043 |
250 |
6.0 |
10.2 |
43.0 |
| 601220 |
110 |
6.0 |
12.0 |
20.5 |
| 601230 |
180 |
6.0 |
12.0 |
30.5 |
| 601235 |
200 |
6.0 |
12.0 |
35.5 |
| 601435 |
280 |
6.0 |
14.0 |
35.5 |
| 601730 |
250 |
6.0 |
17.0 |
30.5 |
| 602020 |
180 |
6.0 |
20.0 |
20.5 |
| 602025 |
250 |
6.0 |
20.0 |
25.5 |
| 602030 |
300 |
6.0 |
20.0 |
30.5 |
| 602035 |
400 |
6.0 |
20.0 |
35.5 |
| 602040 |
450 |
6.0 |
20.0 |
40.5 |
| 602045 |
500 |
6.0 |
20.0 |
45.5 |
| 602530 |
400 |
6.0 |
25.0 |
30.5 |
| 602535 |
500 |
6.0 |
25.0 |
35.5 |
| 602540 |
600 |
6.0 |
25.0 |
40.5 |
| 602626 |
400 |
6.0 |
26.0 |
26.5 |
| 603030 |
500 |
6.0 |
30.0 |
30.5 |
| 603035 |
600 |
6.0 |
30.0 |
35.5 |
| 603040 |
750 |
6.0 |
30.0 |
40.5 |
| 603048 |
850 |
6.0 |
30.0 |
48.5 |
| 603450 |
1200 |
6.0 |
34.0 |
50.5 |
| 651730 |
300 |
6.8 |
17.0 |
30.5 |
| 681345 |
400 |
6.8 |
13.0 |
45.5 |
| 701230 |
220 |
7.0 |
12.2 |
30.5 |
| 701250 |
400 |
7.0 |
12.2 |
50.5 |
| 701435 |
320 |
7.0 |
14.0 |
35.5 |
| 702020 |
210 |
7.0 |
20.0 |
20.5 |
| 702025 |
300 |
7.0 |
20.0 |
25.5 |
| 702030 |
380 |
7.0 |
20.0 |
30.5 |
| 702035 |
450 |
7.0 |
20.0 |
35.5 |
| 702040 |
500 |
7.0 |
20.0 |
40.5 |
| 702530 |
500 |
7.0 |
25.0 |
30.5 |
| 702535 |
600 |
7.0 |
25.0 |
35.5 |
| 703040 |
800 |
7.0 |
30.0 |
40.5 |
| 703048 |
1100 |
7.0 |
30.0 |
48.5 |
| 751425 |
240 |
7.5 |
14.0 |
25.5 |
| 751535 |
380 |
7.5 |
15.0 |
35.5 |
| 801230 |
250 |
8.0 |
12.5 |
30.5 |
| 801350 |
500 |
8.0 |
13.0 |
50.5 |
| 802025 |
350 |
8.0 |
20.0 |
25.5 |
| 802030 |
420 |
8.0 |
20.0 |
30.5 |
| 802035 |
500 |
8.0 |
20.0 |
35.5 |
| 802040 |
650 |
8.0 |
20.0 |
40.5 |
| 802050 |
800 |
8.0 |
20.0 |
50.5 |
| 802530 |
600 |
8.0 |
25.0 |
30.5 |
| 802535 |
700 |
8.0 |
25.0 |
35.5 |
| 802540 |
800 |
8.0 |
25.0 |
40.5 |
| 803030 |
750 |
8.0 |
30.0 |
30.5 |
| 803035 |
800 |
8.0 |
30.0 |
35.5 |
| 803040 |
900 |
8.0 |
30.0 |
40.5 |
| 803048 |
1200 |
8.0 |
30.0 |
48.5 |
| 803450 |
1500 |
8.0 |
34.0 |
50.5 |
| 902025 |
400 |
9.0 |
20.0 |
25.5 |
| 902030 |
500 |
9.0 |
20.0 |
30.5 |
| 902035 |
600 |
9.0 |
20.0 |
35.5 |
| 902040 |
700 |
9.0 |
20.0 |
40.5 |
| 902535 |
800 |
9.0 |
25.0 |
35.5 |
| 101550 |
800 |
10.0 |
15.0 |
50.5 |
| 102050 |
1000 |
10.0 |
20.0 |
50.5 |
| 102530 |
800 |
10.0 |
25.0 |
30.5 |
| 102540 |
1100 |
10.0 |
25.0 |
40.5 |
| 103040 |
1200 |
10.0 |
30.0 |
40.5 |
| 103048 |
1650 |
10.0 |
30.0 |
48.5 |
| 103450 |
2000 |
10.0 |
34.0 |
50.5 |
Li-Polymer battery Product Advantages:
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 or 1000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90% within 10 min.
10) Thickness can be adjusted while width and height keep the same
Major Application:
1)MP3/MP4 player, bluetooth, speakers, car GPS and all possible electronics products
2)Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.
