Place of Origin:
China
Brand Name:
OEM
Certification:
Meet UL
Model Number:
Li504450AR battery

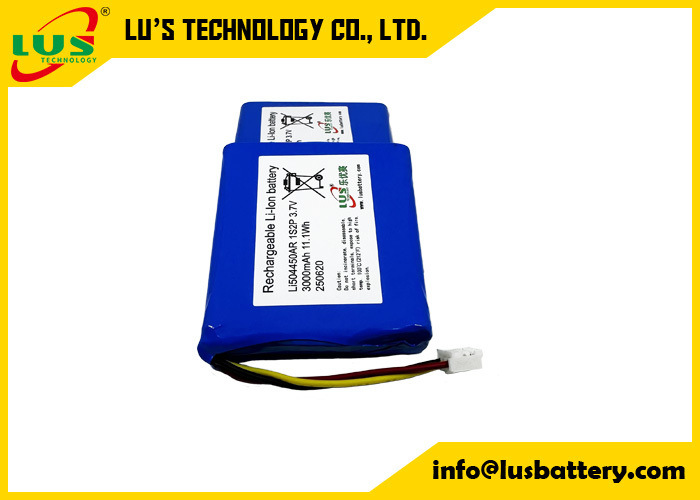

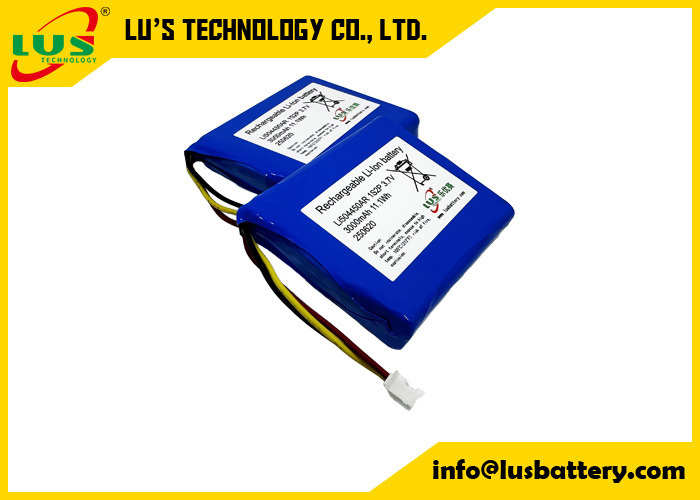

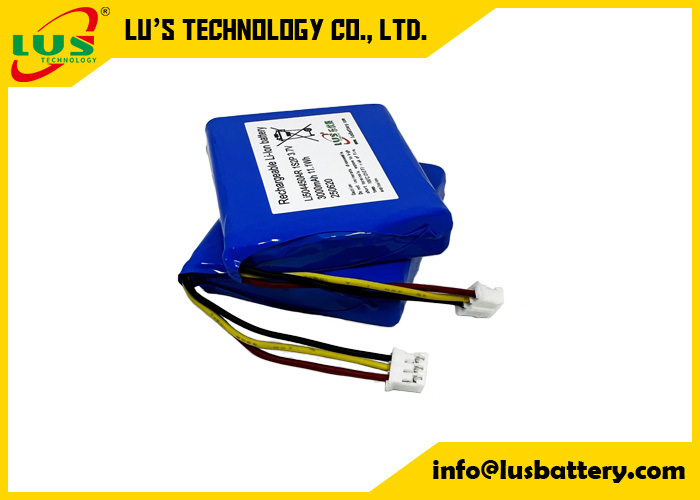

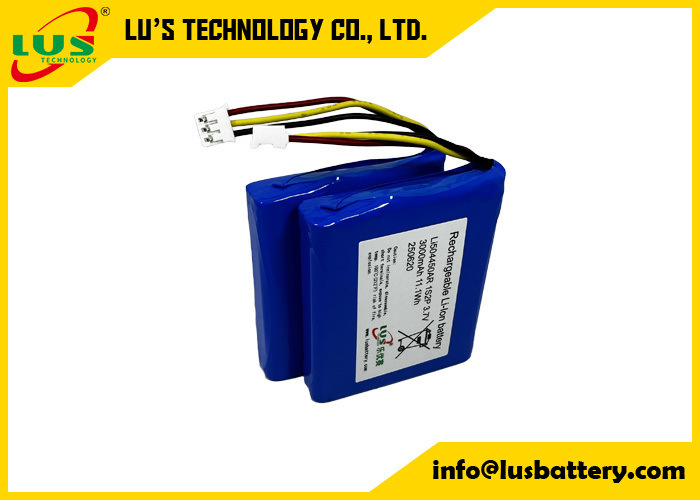

3.7V 3000mah lithium ion battery pack LI504450-2P liion battery custom
The 504450 lithium battery is a aluminum case lithium ion rechargeable battery
LI504450AR rechargeable lithium ion cell 3.7V 1500mah li-ion battery can be making any battery pack you are needed
Lithium battery 504450 rechargeable battery pack 3000mah lithium battery 504450 battery OEM
Li504450 battery Specification
Battery name | Lithium ion battery |
Battery model | Li504450 rechargeable battery |
Battery voltage | 3.7Volt battery |
Combination | 1S2P lithium battery pack |
Capacity | 3000mah lithium battery pack |
Charge current | 0.2C to 0.5C |
Discharge current | 0.2C to 0.5C |
Dimension | Max 10.5*45*52mm |
Protection | PCM |
Terminals | Pins/wires/connector depends on your needed |
Appearance
There shall be no such defect as flaw, crack, rust, leakage, which may adversely affect
commercial value of battery.
Standard Test Conditions:
Test should be conducted with new batteries within one week after shipment from our factory
and the cells shall not be cycled more than five times before the test.
Unless otherwise specified, test and measurement shall be done under temperature of 20±5℃
and relative humidity of 45~85%.
If it is judged that the test results are not affected by such conditions, the tests may be
conducted at temperature 15~30℃ and humidity 25~85%RH.
Lithium Battery 3.7V Li504450 rechargeable battery pack:
More rechargeable lithium ion battery list:
Model | Capacity(mah) | Dimension(mm) | ||
T±0.1 | W±0.5 | L±0.5 | ||
1254 | 60 | 5.4 | 12 | |
1040 | 35 | 4.2 | 10 | |
1038 | 30 | 3.8 | 10 | |
301030 | 70 | 3.0 | 10.0 | 30.5 |
301525 | 80 | 3.0 | 15.0 | 25.5 |
302020 | 90 | 3.0 | 20.0 | 20.5 |
302025 | 110 | 3.0 | 20.0 | 25.5 |
302030 | 120 | 3.0 | 20.0 | 30.5 |
303048 | 400 | 3.0 | 30.0 | 48.5 |
350926 | 60 | 3.0 | 9.0 | 26.5 |
380926 | 70 | 3.8 | 9.0 | 26.5 |
400808 | 18 | 4.0 | 8.1 | 8.2 |
400820 | 40 | 4.0 | 8.3 | 20.5 |
400835 | 100 | 4.0 | 8.3 | 35.5 |
400838 | 110 | 4.0 | 8.3 | 38.5 |
400909 | 25 | 4.0 | 9.1 | 9.2 |
400912 | 30 | 4.0 | 9.0 | 12.5 |
400930 | 80 | 4.0 | 9.0 | 30.5 |
401010 | 25 | 4.0 | 10.0 | 10.5 |
401012 | 35 | 4.0 | 10.0 | 12.5 |
401015 | 40 | 4.0 | 10.0 | 15.5 |
401020 | 55 | 4.0 | 10.0 | 15.5 |
401025 | 70 | 4.0 | 10.0 | 25.5 |
401030 | 90 | 4.0 | 10.0 | 30.5 |
401035 | 110 | 4.0 | 10.0 | 35.5 |
401230 | 110 | 4.0 | 12.0 | 30.5 |
401235 | 130 | 4.0 | 12.0 | 35.5 |
401730 | 150 | 4.0 | 17.0 | 30.5 |
402020 | 110 | 4.0 | 20.0 | 20.5 |
402025 | 150 | 4.0 | 20.0 | 25.5 |
402030 | 200 | 4.0 | 20.0 | 30.5 |
402035 | 230 | 4.0 | 20.0 | 35.5 |
402050 | 400 | 4.0 | 20.0 | 50.5 |
403040 | 400 | 4.0 | 30.0 | 40.5 |
403450 | 680 | 4.0 | 24.0 | 50.5 |
450833 | 110 | 4.5 | 8.3 | 33.0 |
400835 | 110 | 4.0 | 8.3 | 35.0 |
450845 | 165 | 4.5 | 8.3 | 45.0 |
450909 | 30 | 4.5 | 9.1 | 9.2 |
450912 | 35 | 4.5 | 9.0 | 12.5 |
500830 | 100 | 5.0 | 8.3 | 30.5 |
500843 | 160 | 5.0 | 8.3 | 43.0 |
500930 | 110 | 5.0 | 9.1 | 30.5 |
500935 | 130 | 5.0 | 9.1 | 35.5 |
500945 | 190 | 5.0 | 9.1 | 45.0 |
501012 | 43 | 5.0 | 10.0 | 12.5 |
501015 | 50 | 5.0 | 10.0 | 15.5 |
501030 | 110 | 5.0 | 10.0 | 30.5 |
501035 | 150 | 5.0 | 10.0 | 35.5 |
501220 | 85 | 5.0 | 12.0 | 20.5 |
501225 | 110 | 5.0 | 12.0 | 25.5 |
501230 | 120 | 5.0 | 12.0 | 30.5 |
501235 | 150 | 5.0 | 12.0 | 35.5 |
501240 | 200 | 5.0 | 12.0 | 40.5 |
501245 | 250 | 5.0 | 12.0 | 45.5 |
501525 | 150 | 5.0 | 15.0 | 25.5 |
501535 | 230 | 5.0 | 15.0 | 35.5 |
502020 | 150 | 5.0 | 20.0 | 20.5 |
502025 | 200 | 5.0 | 20.0 | 25.5 |
502030 | 250 | 5.0 | 20.0 | 30.5 |
502035 | 320 | 5.0 | 20.0 | 35.5 |
502248 | 500 | 5.0 | 22.0 | 48.5 |
502530 | 320 | 5.0 | 25.0 | 30.5 |
502535 | 400 | 5.0 | 25.0 | 35.5 |
502540 | 550 | 5.0 | 25.0 | 40.5 |
503030 | 450 | 5.0 | 30.0 | 30.5 |
503035 | 500 | 5.0 | 30.0 | 35.5 |
503040 | 600 | 5.0 | 30.0 | 40.5 |
503048 | 750 | 5.0 | 30.0 | 48.5 |
503759 | 1200 | 5.0 | 37.0 | 59.5 |
523450 | 1000 | 5.2 | 34.0 | 50.5 |
551012 | 50 | 5.5 | 10.0 | 12.5 |
551015 | 55 | 5.5 | 10.0 | 15.5 |
551145 | 250 | 5.5 | 11.3 | 45.5 |
551240 | 230 | 5.5 | 12.0 | 40.5 |
552535 | 450 | 5.5 | 10.1 | 35.5 |
581013 | 52 | 5.8 | 10.2 | 13.5 |
582728 | 400 | 5.8 | 27.2 | 28.5 |
601012 | 55 | 6.0 | 10.2 | 12.5 |
601015 | 60 | 6.0 | 10.2 | 15.5 |
601040 | 200 | 6.0 | 10.2 | 40.5 |
601043 | 250 | 6.0 | 10.2 | 43.0 |
601220 | 110 | 6.0 | 12.0 | 20.5 |
601230 | 180 | 6.0 | 12.0 | 30.5 |
601235 | 200 | 6.0 | 12.0 | 35.5 |
601435 | 280 | 6.0 | 14.0 | 35.5 |
601730 | 250 | 6.0 | 17.0 | 30.5 |
602020 | 180 | 6.0 | 20.0 | 20.5 |
602025 | 250 | 6.0 | 20.0 | 25.5 |
602030 | 300 | 6.0 | 20.0 | 30.5 |
602035 | 400 | 6.0 | 20.0 | 35.5 |
602040 | 450 | 6.0 | 20.0 | 40.5 |
602045 | 500 | 6.0 | 20.0 | 45.5 |
602530 | 400 | 6.0 | 25.0 | 30.5 |
602535 | 500 | 6.0 | 25.0 | 35.5 |
602540 | 600 | 6.0 | 25.0 | 40.5 |
602626 | 400 | 6.0 | 26.0 | 26.5 |
603030 | 500 | 6.0 | 30.0 | 30.5 |
603035 | 600 | 6.0 | 30.0 | 35.5 |
603040 | 750 | 6.0 | 30.0 | 40.5 |
603048 | 850 | 6.0 | 30.0 | 48.5 |
603450 | 1200 | 6.0 | 34.0 | 50.5 |
651730 | 300 | 6.8 | 17.0 | 30.5 |
681345 | 400 | 6.8 | 13.0 | 45.5 |
701230 | 220 | 7.0 | 12.2 | 30.5 |
701250 | 400 | 7.0 | 12.2 | 50.5 |
701435 | 320 | 7.0 | 14.0 | 35.5 |
702020 | 210 | 7.0 | 20.0 | 20.5 |
702025 | 300 | 7.0 | 20.0 | 25.5 |
702030 | 380 | 7.0 | 20.0 | 30.5 |
702035 | 450 | 7.0 | 20.0 | 35.5 |
702040 | 500 | 7.0 | 20.0 | 40.5 |
702530 | 500 | 7.0 | 25.0 | 30.5 |
702535 | 600 | 7.0 | 25.0 | 35.5 |
703040 | 800 | 7.0 | 30.0 | 40.5 |
703048 | 1100 | 7.0 | 30.0 | 48.5 |
751425 | 240 | 7.5 | 14.0 | 25.5 |
751535 | 380 | 7.5 | 15.0 | 35.5 |
801230 | 250 | 8.0 | 12.5 | 30.5 |
801350 | 500 | 8.0 | 13.0 | 50.5 |
802025 | 350 | 8.0 | 20.0 | 25.5 |
802030 | 420 | 8.0 | 20.0 | 30.5 |
802035 | 500 | 8.0 | 20.0 | 35.5 |
802040 | 650 | 8.0 | 20.0 | 40.5 |
802050 | 800 | 8.0 | 20.0 | 50.5 |
802530 | 600 | 8.0 | 25.0 | 30.5 |
802535 | 700 | 8.0 | 25.0 | 35.5 |
802540 | 800 | 8.0 | 25.0 | 40.5 |
803030 | 750 | 8.0 | 30.0 | 30.5 |
803035 | 800 | 8.0 | 30.0 | 35.5 |
803040 | 900 | 8.0 | 30.0 | 40.5 |
803048 | 1200 | 8.0 | 30.0 | 48.5 |
803450 | 1500 | 8.0 | 34.0 | 50.5 |
902025 | 400 | 9.0 | 20.0 | 25.5 |
902030 | 500 | 9.0 | 20.0 | 30.5 |
902035 | 600 | 9.0 | 20.0 | 35.5 |
902040 | 700 | 9.0 | 20.0 | 40.5 |
902535 | 800 | 9.0 | 25.0 | 35.5 |
101550 | 800 | 10.0 | 15.0 | 50.5 |
102050 | 1000 | 10.0 | 20.0 | 50.5 |
102530 | 800 | 10.0 | 25.0 | 30.5 |
102540 | 1100 | 10.0 | 25.0 | 40.5 |
103040 | 1200 | 10.0 | 30.0 | 40.5 |
103048 | 1650 | 10.0 | 30.0 | 48.5 |
103450 | 2000 | 10.0 | 34.0 | 50.5 |
Li-ion battery Product Advantages:
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 or 1000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90% within 10 min.
10) Thickness can be adjusted while width and height keep the same
Major Application:
1)MP3/MP4 player, bluetooth, speakers, car GPS and all possible electronics products
2)Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.
