1100mah rechargeable Lithium Ion Polymer Battery 3.7V battery LP802060 lipo battery factory
LP802060 is a rechargeable Lithium Ion Polymer Battery that works perfectly to power your projects.
The 802060 battery has a capacity of 1100mAh at 3.7V Rechargeable lithium battery
3.7V 1100Mah PL802060 Li Polymer Ion Battery For Power DVD Gps Mp3.
3.7 V 1100mAh lithium-ion battery LP802060 boasts lightweight construction and high energy density, making it ideal for portable devices like smartphones, GPS trackers.
3.7V 1100mAH Li-ion battery lp802060 Small Thin Flat Lithium Polymer Battery Pack 802060 Li ion Battery PL802060 battery
lithium battery LP802060 Features:
High energy density and high voltage of 3.7V battery
Lighter and thinner, size could be flexible according to requirement
Extremely safe, low self-discharge and has long cycle life
Pollution-free, green product
Wide operation temperature: -20ºC~60ºC
LP802060 lithium battery data sheet
|
Item
|
Rating
|
|
Model
|
LP802060
|
|
Nominal capacity
|
1100mAh
|
|
Nominal voltage
|
3.7V
|
|
Cut-off charge voltage
|
4.2V
|
|
Cut-off discharge voltage
|
3.0V
|
|
Initial impedance
|
Max: 140mΩ
|
|
Weight
|
Approx:21.8g
|
|
Standard Charge
|
0.2C CC(constant current) charge to 4.2V,then
CV(constant voltage 4.2V)till current decline to ≤0.01C
|
|
Max. Constant Charging Current
|
1.0C
|
|
Standard Discharge
|
Discharge at 0.2 C5A to 3.0V
|
|
Max. Continuous Discharging Current
|
1.0C
|
|
Operating Temperature
|
Charge 0～+45℃
|
|
Discharge –20～+60℃
|
|
Storage Temperature
|
-10～+55℃≤1 month
|
|
-10～+45℃≤3months
|
|
-10～+25℃≤12months
|
|
Storage Humidity
|
45-75%RH
|

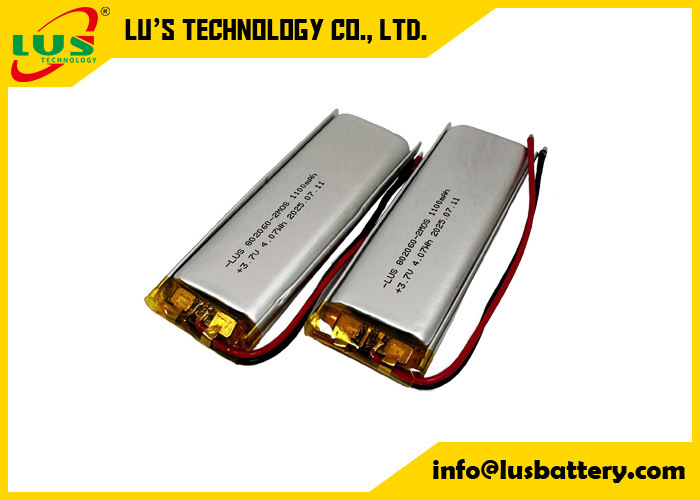

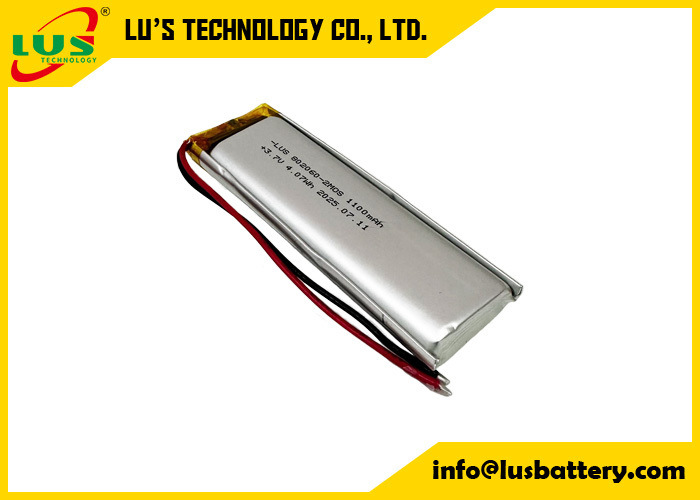

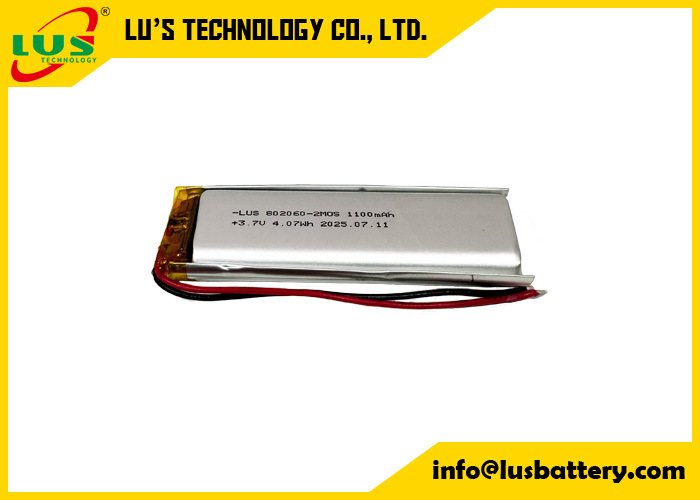

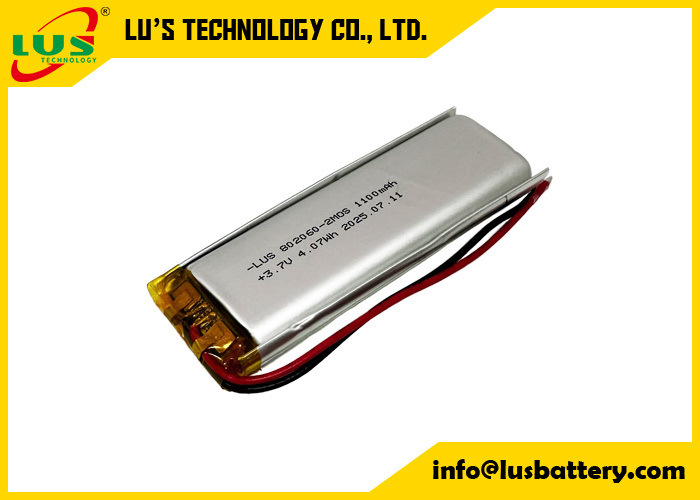

Lithium ion battery 802060 lipo battery picture:
More rechargeable lithium polymer battery list:
| Model |
Capacity(mah) |
Dimension(mm) |
| T±0.1 |
W±0.5 |
L±0.5 |
| 1254 |
60 |
5.4 |
12 |
|
| 1040 |
35 |
4.2 |
10 |
|
| 1038 |
30 |
3.8 |
10 |
|
| 301030 |
70 |
3.0 |
10.0 |
30.5 |
| 301525 |
80 |
3.0 |
15.0 |
25.5 |
| 302020 |
90 |
3.0 |
20.0 |
20.5 |
| 302025 |
110 |
3.0 |
20.0 |
25.5 |
| 302030 |
120 |
3.0 |
20.0 |
30.5 |
| 303048 |
400 |
3.0 |
30.0 |
48.5 |
| 350926 |
60 |
3.0 |
9.0 |
26.5 |
| 380926 |
70 |
3.8 |
9.0 |
26.5 |
| 400808 |
18 |
4.0 |
8.1 |
8.2 |
| 400820 |
40 |
4.0 |
8.3 |
20.5 |
| 400835 |
100 |
4.0 |
8.3 |
35.5 |
| 400838 |
110 |
4.0 |
8.3 |
38.5 |
| 400909 |
25 |
4.0 |
9.1 |
9.2 |
| 400912 |
30 |
4.0 |
9.0 |
12.5 |
| 400930 |
80 |
4.0 |
9.0 |
30.5 |
| 401010 |
25 |
4.0 |
10.0 |
10.5 |
| 401012 |
35 |
4.0 |
10.0 |
12.5 |
| 401015 |
40 |
4.0 |
10.0 |
15.5 |
| 401020 |
55 |
4.0 |
10.0 |
15.5 |
| 401025 |
70 |
4.0 |
10.0 |
25.5 |
| 401030 |
90 |
4.0 |
10.0 |
30.5 |
| 401035 |
110 |
4.0 |
10.0 |
35.5 |
| 401230 |
110 |
4.0 |
12.0 |
30.5 |
| 401235 |
130 |
4.0 |
12.0 |
35.5 |
| 401730 |
150 |
4.0 |
17.0 |
30.5 |
| 402020 |
110 |
4.0 |
20.0 |
20.5 |
| 402025 |
150 |
4.0 |
20.0 |
25.5 |
| 402030 |
200 |
4.0 |
20.0 |
30.5 |
| 402035 |
230 |
4.0 |
20.0 |
35.5 |
| 402050 |
400 |
4.0 |
20.0 |
50.5 |
| 403040 |
400 |
4.0 |
30.0 |
40.5 |
| 403450 |
680 |
4.0 |
24.0 |
50.5 |
| 450833 |
110 |
4.5 |
8.3 |
33.0 |
| 400835 |
110 |
4.0 |
8.3 |
35.0 |
| 450845 |
165 |
4.5 |
8.3 |
45.0 |
| 450909 |
30 |
4.5 |
9.1 |
9.2 |
| 450912 |
35 |
4.5 |
9.0 |
12.5 |
| 500830 |
100 |
5.0 |
8.3 |
30.5 |
| 500843 |
160 |
5.0 |
8.3 |
43.0 |
| 500930 |
110 |
5.0 |
9.1 |
30.5 |
| 500935 |
130 |
5.0 |
9.1 |
35.5 |
| 500945 |
190 |
5.0 |
9.1 |
45.0 |
| 501012 |
43 |
5.0 |
10.0 |
12.5 |
| 501015 |
50 |
5.0 |
10.0 |
15.5 |
| 501030 |
110 |
5.0 |
10.0 |
30.5 |
| 501035 |
150 |
5.0 |
10.0 |
35.5 |
| 501220 |
85 |
5.0 |
12.0 |
20.5 |
| 501225 |
110 |
5.0 |
12.0 |
25.5 |
| 501230 |
120 |
5.0 |
12.0 |
30.5 |
| 501235 |
150 |
5.0 |
12.0 |
35.5 |
| 501240 |
200 |
5.0 |
12.0 |
40.5 |
| 501245 |
250 |
5.0 |
12.0 |
45.5 |
| 501525 |
150 |
5.0 |
15.0 |
25.5 |
| 501535 |
230 |
5.0 |
15.0 |
35.5 |
| 502020 |
150 |
5.0 |
20.0 |
20.5 |
| 502025 |
200 |
5.0 |
20.0 |
25.5 |
| 502030 |
250 |
5.0 |
20.0 |
30.5 |
| 502035 |
320 |
5.0 |
20.0 |
35.5 |
| 502248 |
500 |
5.0 |
22.0 |
48.5 |
| 502530 |
320 |
5.0 |
25.0 |
30.5 |
| 502535 |
400 |
5.0 |
25.0 |
35.5 |
| 502540 |
550 |
5.0 |
25.0 |
40.5 |
| 503030 |
450 |
5.0 |
30.0 |
30.5 |
| 503035 |
500 |
5.0 |
30.0 |
35.5 |
| 503040 |
600 |
5.0 |
30.0 |
40.5 |
| 503048 |
750 |
5.0 |
30.0 |
48.5 |
| 503759 |
1200 |
5.0 |
37.0 |
59.5 |
| 523450 |
1000 |
5.2 |
34.0 |
50.5 |
| 551012 |
50 |
5.5 |
10.0 |
12.5 |
| 551015 |
55 |
5.5 |
10.0 |
15.5 |
| 551145 |
250 |
5.5 |
11.3 |
45.5 |
| 551240 |
230 |
5.5 |
12.0 |
40.5 |
| 552535 |
450 |
5.5 |
10.1 |
35.5 |
| 581013 |
52 |
5.8 |
10.2 |
13.5 |
| 582728 |
400 |
5.8 |
27.2 |
28.5 |
| 601012 |
55 |
6.0 |
10.2 |
12.5 |
| 601015 |
60 |
6.0 |
10.2 |
15.5 |
| 601040 |
200 |
6.0 |
10.2 |
40.5 |
| 601043 |
250 |
6.0 |
10.2 |
43.0 |
| 601220 |
110 |
6.0 |
12.0 |
20.5 |
| 601230 |
180 |
6.0 |
12.0 |
30.5 |
| 601235 |
200 |
6.0 |
12.0 |
35.5 |
| 601435 |
280 |
6.0 |
14.0 |
35.5 |
| 601730 |
250 |
6.0 |
17.0 |
30.5 |
| 602020 |
180 |
6.0 |
20.0 |
20.5 |
| 602025 |
250 |
6.0 |
20.0 |
25.5 |
| 602030 |
300 |
6.0 |
20.0 |
30.5 |
| 602035 |
400 |
6.0 |
20.0 |
35.5 |
| 602040 |
450 |
6.0 |
20.0 |
40.5 |
| 602045 |
500 |
6.0 |
20.0 |
45.5 |
| 602530 |
400 |
6.0 |
25.0 |
30.5 |
| 602535 |
500 |
6.0 |
25.0 |
35.5 |
| 602540 |
600 |
6.0 |
25.0 |
40.5 |
| 602626 |
400 |
6.0 |
26.0 |
26.5 |
| 603030 |
500 |
6.0 |
30.0 |
30.5 |
| 603035 |
600 |
6.0 |
30.0 |
35.5 |
| 603040 |
750 |
6.0 |
30.0 |
40.5 |
| 603048 |
850 |
6.0 |
30.0 |
48.5 |
| 603450 |
1200 |
6.0 |
34.0 |
50.5 |
| 651730 |
300 |
6.8 |
17.0 |
30.5 |
| 681345 |
400 |
6.8 |
13.0 |
45.5 |
| 701230 |
220 |
7.0 |
12.2 |
30.5 |
| 701250 |
400 |
7.0 |
12.2 |
50.5 |
| 701435 |
320 |
7.0 |
14.0 |
35.5 |
| 702020 |
210 |
7.0 |
20.0 |
20.5 |
| 702025 |
300 |
7.0 |
20.0 |
25.5 |
| 702030 |
380 |
7.0 |
20.0 |
30.5 |
| 702035 |
450 |
7.0 |
20.0 |
35.5 |
| 702040 |
500 |
7.0 |
20.0 |
40.5 |
| 702530 |
500 |
7.0 |
25.0 |
30.5 |
| 702535 |
600 |
7.0 |
25.0 |
35.5 |
| 703040 |
800 |
7.0 |
30.0 |
40.5 |
| 703048 |
1100 |
7.0 |
30.0 |
48.5 |
| 751425 |
240 |
7.5 |
14.0 |
25.5 |
| 751535 |
380 |
7.5 |
15.0 |
35.5 |
| 801230 |
250 |
8.0 |
12.5 |
30.5 |
| 801350 |
500 |
8.0 |
13.0 |
50.5 |
| 802025 |
350 |
8.0 |
20.0 |
25.5 |
| 802030 |
420 |
8.0 |
20.0 |
30.5 |
| 802035 |
500 |
8.0 |
20.0 |
35.5 |
| 802040 |
650 |
8.0 |
20.0 |
40.5 |
| 802050 |
800 |
8.0 |
20.0 |
50.5 |
| 802530 |
600 |
8.0 |
25.0 |
30.5 |
| 802535 |
700 |
8.0 |
25.0 |
35.5 |
| 802540 |
800 |
8.0 |
25.0 |
40.5 |
| 803030 |
750 |
8.0 |
30.0 |
30.5 |
| 803035 |
800 |
8.0 |
30.0 |
35.5 |
| 803040 |
900 |
8.0 |
30.0 |
40.5 |
| 803048 |
1200 |
8.0 |
30.0 |
48.5 |
| 803450 |
1500 |
8.0 |
34.0 |
50.5 |
| 902025 |
400 |
9.0 |
20.0 |
25.5 |
| 902030 |
500 |
9.0 |
20.0 |
30.5 |
| 902035 |
600 |
9.0 |
20.0 |
35.5 |
| 902040 |
700 |
9.0 |
20.0 |
40.5 |
| 902535 |
800 |
9.0 |
25.0 |
35.5 |
| 101550 |
800 |
10.0 |
15.0 |
50.5 |
| 102050 |
1000 |
10.0 |
20.0 |
50.5 |
| 102530 |
800 |
10.0 |
25.0 |
30.5 |
| 102540 |
1100 |
10.0 |
25.0 |
40.5 |
| 103040 |
1200 |
10.0 |
30.0 |
40.5 |
| 103048 |
1650 |
10.0 |
30.0 |
48.5 |
| 103450 |
2000 |
10.0 |
34.0 |
50.5 |
Li-Polymer battery Product Advantages:
1) Environmental friendly
2) High density of energy
3) Light weight
4) Low self-discharge
5) Low internal resistance
6) Long cycle life, chargeable up to 500 or 1000 times
7) No memory effect
8) Doesn’t contain Mercury, No fire, No explosion, No leakage
9) Very good and quick charge, capability can be charged to 90% within 10 min.
10) Thickness can be adjusted while width and height keep the same
