AA1500mah rechargeable battery 3.6V 1500mah nimh battery pack customized factory
AA1500 is a standard rechargeable battery with a capacity of 1500 mAh and operates at 1.2 V nimh battery
1.2V AA 1500mAh Rechargeable NiMh Batteries AA1500 Rechargeable NiMH Battery Pack
Nickel Metal Hydride Battery Pack 3.6v 1500mah AA 1500 mAh 1.2V NiMH Rechargeable Battery Cell
Ni-MH AA 1500mAh Rechargeable Battery AA1500 Non-standard battery AA rechargeable battery 1.2volt AA rechargeable batteries can be widely used for Remote controller, Solar garden lights, Cameras, Handle game pad, Alarm-clock, Toys, Key board
Model: NIMH Nickel Metal Hydride Battery AA1500mah 3.6V rechargeable battery
Nickel Metal Hydride Battery AA size 1.2V NIMH Battery Pack 3.6Volt 1500mah NIMH battery
AA Nickel Metal Hydride Battery 1500mah 3.6V nimh battery
3.6V nimh battery pack 1500mah AA battery data sheet:
| Description |
Specification |
Conditions |
| Nominal Voltage |
3.6V |
|
| Nominal Capacity |
1500mAh |
Standard Charge / Discharge |
| Standard charge |
150mA(0.1C);16H |
Ta=20±5ºC |
| Standard discharge |
300mA(0.2C) |
Ta=0-40ºC
Humidity:65±20%
cell cutoff:3.0V/pack |
| Weight |
72g |
|
| Dimension |
Max 53*44*15mm |
|
| IEC Cycles Life Test |
≥500 |
IEC 61951-2(2017)/7.5.1.2 |
| Color |
Green PVC or customized |
|
| Storage Temperature |
-20ºC~30 within 1 year
-20ºC~40 within 6 month
-20ºC~50 within 1 month
-20ºC~55 within 1 week |
Relative humidity:65±20% |
| Terminals |
Wires/connector depends on your needed |
|

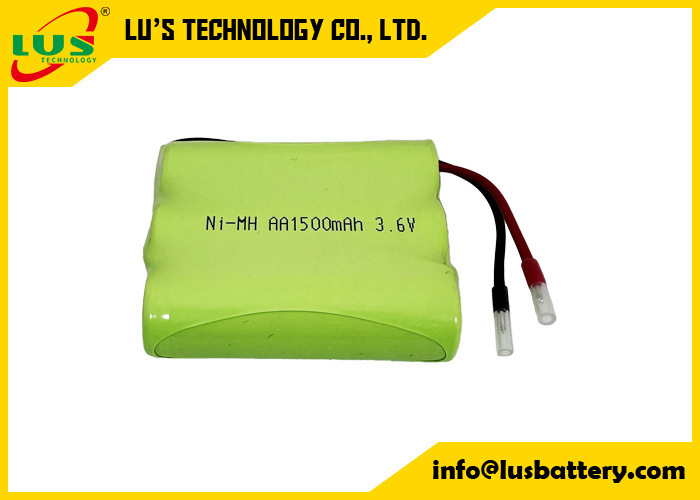

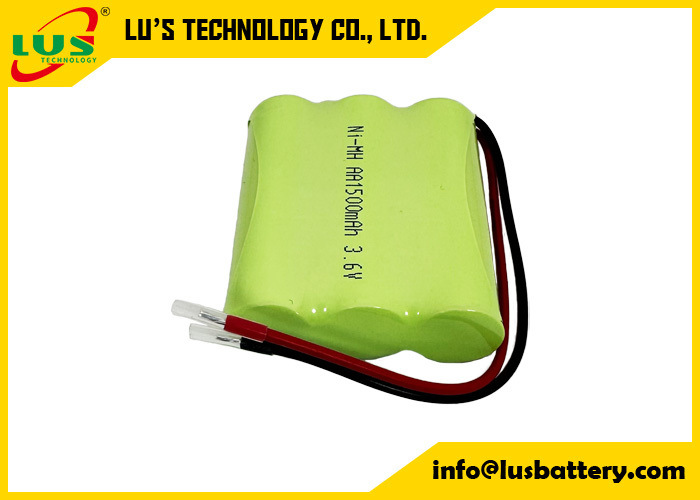

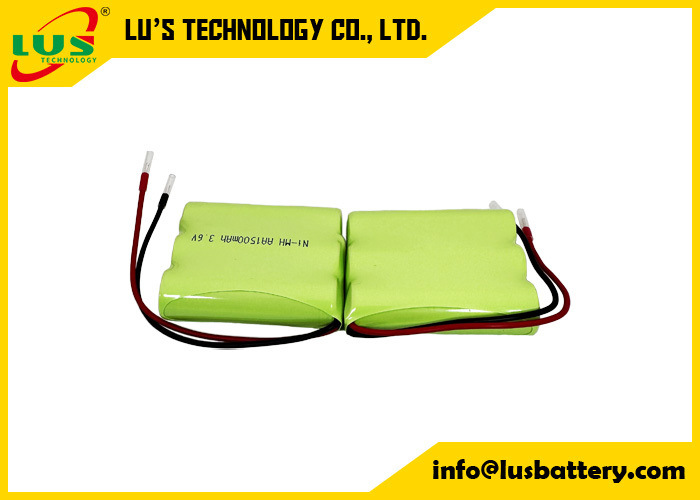

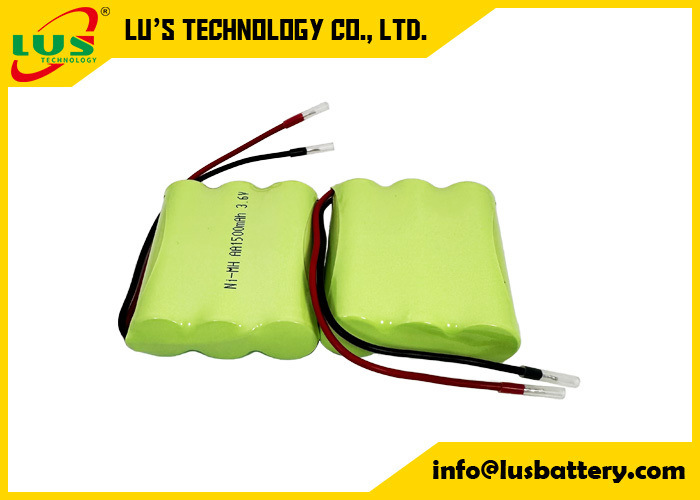

AA1500 nimh battery 3.6V nimh battery 1500mah picture:
NIMH Application:
MP3, Walkman, E-toys, E-tooth brusher, Brushes shaver, LED torch, Alarm system, Fire
alarm, Mining light, Sex toys, Adult toys.
1.2Volt rechargeable NIMH battery Features:
1) High energy density
2) Low self-discharge
3) Long service life
4) Chargeable up to 500 or 1000 times
5) Excellent performance of high rate charge and discharge
6) Low internal resistance
Notes:
1: Ta: Ambient Temperature
2: Approximate charge time from discharged state, for reference only.
3: IEC 61951:2003 Cycle Life Test:
| Cycle number |
Charge |
Rest |
Discharge |
| 1 |
0.1C×16hrs |
None |
0.25C× 2hrs20mins |
| 2-48 |
0.25C× 3hrs10mins |
None |
0.25C×2hrs20mins |
| 49 |
0.25C× 3hrs10mins |
None |
0.25C× 1.0V/cell |
| 50 |
0.1C×16hrs |
1-4hr(s) |
0.2C×1.0V/cell |
| Cycles 1 to 50 shall be repeated until the discharge duration on any 50th cycle becomes less than 3hrs |
Caution:
1. Reverse charging is not acceptable.
2. Charge before use. The cells / batteries are delivered in an uncharged state.
3. Do not charge / discharge with more than the specified current.
4. Do not short circuit the cell / battery. Permanent damage to the cell / battery may result.
5. Do not incinerate or mutilate the cell /battery.
6. Do not solder directly to the cell /battery.
7. The life expectancy may be reduced if the cell / battery is subjected to adverse conditions like:extreme temperature , deep cycling , excessive overcharge / overdischarge.
8. Store the cell / battery uncharged in a cool dry place. Always discharge batteries before bulk storage or shipment.
9. In order to prevent the decay of battery performance,battery / batteries at least every three
months to conduct a charge-discharge cycle.
10. Keep away from children. If swallowed, contact a physician at once.
11. Air ventilation should be provided in the plastic case of batteries,otherwise it may have a
risk of accumulating gas (oxygen gas, hydrogen gas)generated inside the cell resulting in
explosion triggered by fire sources (motors or switches).
Airtight battery compartments are strongly discouraged.
12.The batteries comply with Restrictions on Hazardous Substances (RoHS) Direction.
NIMH battery list:
| NI-MH rechargeable battery |
| Type |
Voltage(V) |
Capacity(mAh) |
High(mm) |
Diameter(mm) |
| AAA |
1.2 |
600 |
44.0±0.5 |
10.0±0.2 |
| AAA |
1.2 |
600 |
43.5±0.5 |
10.0±0.2 |
| AAA |
1.2 |
650 |
44.0±0.5 |
10.0±0.2 |
| AAA |
1.2 |
650 |
43.5±0.5 |
10.0±0.2 |
| AAA |
1.2 |
700 |
44.0±0.5 |
10.0±0.2 |
| AAA |
1.2 |
700 |
43.5±0.5 |
10.0±0.2 |
| AAA |
1.2 |
800 |
44.0±0.5 |
10.1±0.2 |
| AAA |
1.2 |
800 |
43.5±0.5 |
10.0±0.2 |
| AAA |
1.2 |
850 |
44.0±0.5 |
10.1±0.2 |
| AAA |
1.2 |
850 |
43.5±0.5 |
10.0±0.2 |
| 1/4AAA |
1.2 |
70 |
10.5±0.5 |
10.1±0.2 |
| 2/5AAA |
1.2 |
200 |
20.2±0.5 |
10.0±0.2 |
| 1/3AAA |
1.2 |
120 |
14.6±0.5 |
10.0±0.2 |
| 1/2AAA |
1.2 |
230 |
23.5±0.5 |
10.0±0.2 |
| 2/3AAA |
1.2 |
300 |
27.5±0.5 |
10.0±0.2 |
| 4/5AAA |
1.2 |
500 |
37.5±0.5 |
10.0±0.2 |
| 5/4AAA |
1.2 |
750 |
50.5±0.5 |
10.0±0.2 |
| AA |
1.2 |
600 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
900 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
900 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1100 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1100 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1200 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1200 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1300 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1300 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1500 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1500 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1600 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1600 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1700 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1700 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1800 |
50.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
1800 |
48.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2000 |
50.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2000 |
48.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2200 |
50.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2200 |
48.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2300 |
50.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2400 |
50.0±0.5 |
14.2±0.2 |
| 1/3AA |
1.2 |
300 |
16.3±0.5 |
13.9±0.2 |
| 2/5AA |
1.2 |
400 |
21.0±0.5 |
13.9±0.2 |
| 1/2AA |
1.2 |
500 |
24.0±0.5 |
13.9±0.2 |
| 2/3AA |
1.2 |
300 |
28.1±0.5 |
13.9±0.2 |
| 2/3AA |
1.2 |
600 |
28.1±0.5 |
13.9±0.2 |
| 2/3AA |
1.2 |
650 |
28.1±0.5 |
13.9±0.2 |
| 2/3AA |
1.2 |
700 |
28.1±0.5 |
13.9±0.2 |
| 4/5AA |
1.2 |
1200 |
42.6±0.5 |
13.9±0.2 |
| 7/5AA |
1.2 |
1800 |
64.5±0.5 |
13.9±0.2 |
| A |
1.2 |
2100 |
49.0±0.5 |
16.60±0.2 |
| 1/2A |
1.2 |
1000 |
27.4±0.5 |
16.3±0.2 |
| 1/2A |
1.2 |
1100 |
27.4±0.5 |
16.3±0.2 |
| 2/5A |
1.2 |
600 |
21.5±0.5 |
16.60±0.2 |
| 4/5A |
1.2 |
1800 |
42.1±0.5 |
16.60±0.2 |
| 4/5A |
1.2 |
2000 |
42.1±0.5 |
16.60±0.2 |
| 7/5A |
1.2 |
3500 |
66.0±0.5 |
16.60±0.2 |
| 7/5A |
1.2 |
3800 |
66.0±0.5 |
16.60±0.2 |
| SC |
1.2 |
2400 |
42.0±0.5 |
22.0±0.2 |
| SC |
1.2 |
2800 |
42.0±0.5 |
22.0±0.2 |
| SC |
1.2 |
3000 |
42.0±0.5 |
22.0±0.2 |
| SC |
1.2 |
3300 |
42.0±0.5 |
22.0±0.2 |
| 4/5SC |
1.2 |
2000 |
32.5±0.5 |
22.0±0.2 |
| 5/4SC |
1.2 |
3500 |
49.0±0.5 |
22.0±0.2 |
| C |
1.2 |
2500 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
2500 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
3300 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
3300 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
3700 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
3700 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
4000 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
4000 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
4500 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
4500 |
49.0±0.5 |
25.2±0.2 |
| D |
1.2 |
5000 |
60.5±0.5 |
32.1±0.2 |
| D |
1.2 |
5000 |
59.0±0.5 |
32.1±0.2 |
| D |
1.2 |
8000 |
60.5±0.5 |
32.3±0.2 |
| D |
1.2 |
8000 |
59.0±0.5 |
32.1±0.2 |
| D |
1.2 |
8500 |
59.0±0.5 |
32.1±0.2 |
| D |
1.2 |
9000 |
60.5±0.5 |
32.1±0.2 |
| D |
1.2 |
9000 |
59.0±0.5 |
32.1±0.2 |
| 1/2D |
1.2 |
3500 |
36.5±0.5 |
32.1±0.2 |
| 1/2D |
1.2 |
3500 |
35.0±0.5 |
32.1±0.2 |
| F |
1.2 |
14000 |
90.5±0.5 |
32.1±0.2 |
| F |
1.2 |
13000 |
89.0±0.5 |
32.1±0.2 |
| 9V |
9 |
280 |
17.5 |
48.5*26.5 |
