1500mAh NiMH AA cell battery
Chemical System: Nickel Metal Hydride.
Name: Ni-MH battery
Type. AA size rechargeable battery or AA battery
Nominal Voltage 1,2V single cell
Nominal Capacity 1500mah
This is a Nickel Metal Hydride Battery pack 3.6Volt battery is size AA 1500mah rechargeable battery
Nickel Metal Hydride Battery 1500mah is a recahrgeable AA battery NIMh battery cell 1.2V
NIMH Battery Pack 3.6Volt 1500mah NIMH AA battery pack customization service from LUS battery factory
AA battery 1500mah Nickel Metal Hydride Battery AA1500mah NI/MH battery 3.6V nimh battery
3.6V 1500mah AA NIHMH battery data sheet:
| Description |
Specification |
Conditions |
| Nominal Voltage |
3.6V |
|
| Nominal Capacity |
1500mAh |
Standard Charge / Discharge |
| Standard charge |
150mA(0.1C);16H |
Ta=20±5ºC |
| Standard discharge |
300mA(0.2C) |
Ta=0-40ºC
Humidity:65±20%
cell cutoff:3.0V/pack |
| Weight |
72g |
|
| Dimension |
Max 53*44*15mm |
|
| IEC Cycles Life Test |
≥500 |
IEC 61951-2(2017)/7.5.1.2 |
| Color |
Green PVC or customized |
|
| Storage Temperature |
-20ºC~30 within 1 year
-20ºC~40 within 6 month
-20ºC~50 within 1 month
-20ºC~55 within 1 week |
Relative humidity:65±20% |
| Terminals |
Wires/connector depends on your needed |
|

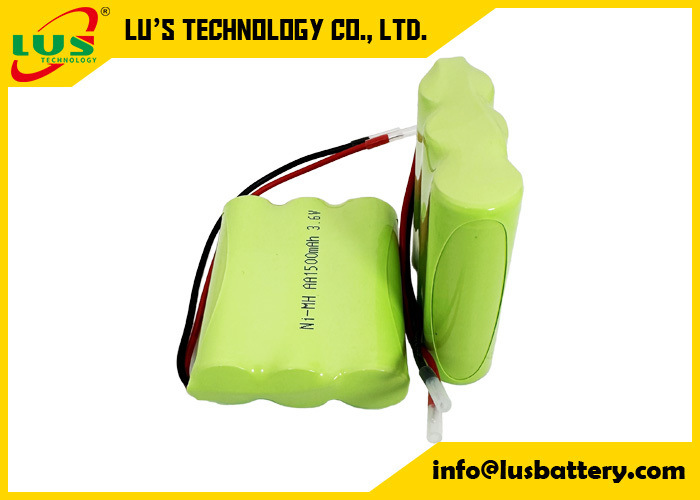

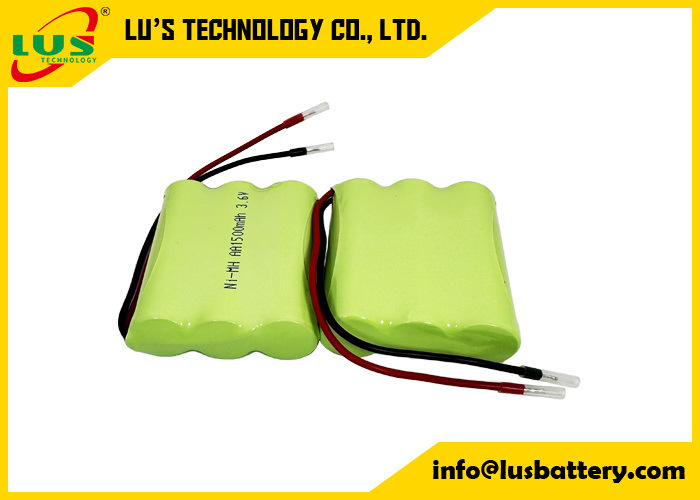

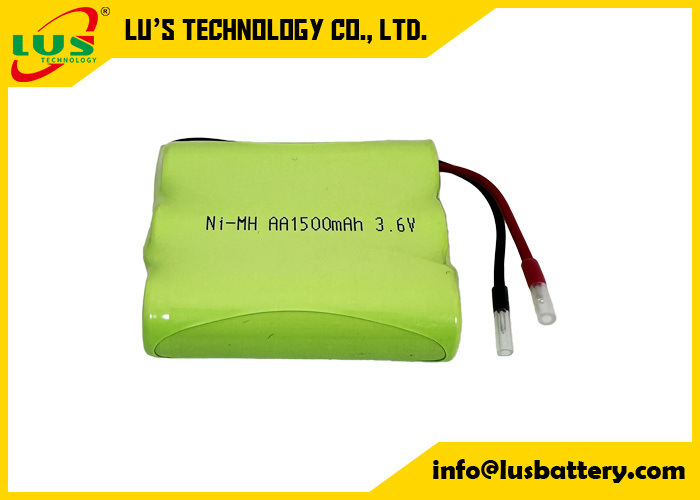

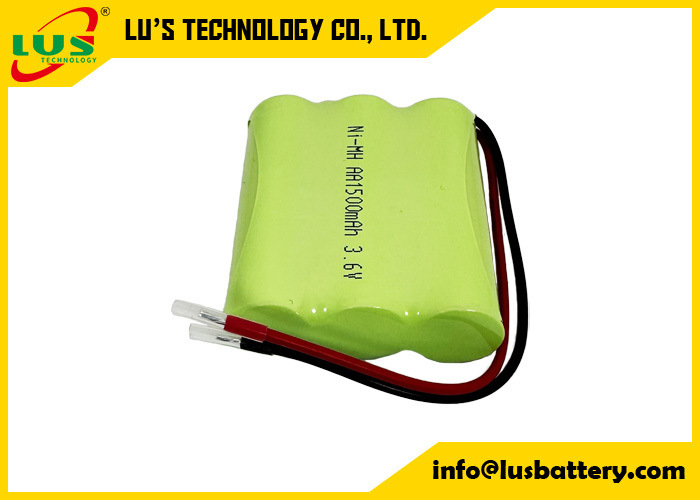

1500mah rechargeable nimh battery 3.6V battery AA1500mah picture:
NIMH Application:
MP3, Walkman, E-toys, E-tooth brusher, Brushes shaver, LED torch, Alarm system, Fire
alarm, Mining light, Sex toys, Adult toys.
1.2Volt rechargeable battery NIMH batteries Features:
1) High energy density
2) Low self-discharge
3) Long service life
4) Chargeable up to 500 or 1000 times
5) Excellent performance of high rate charge and discharge
6) Low internal resistance
Notes:
1: Ta: Ambient Temperature
2: Approximate charge time from discharged state, for reference only.
3: IEC 61951:2003 Cycle Life Test:
| Cycle number |
Charge |
Rest |
Discharge |
| 1 |
0.1C×16hrs |
None |
0.25C× 2hrs20mins |
| 2-48 |
0.25C× 3hrs10mins |
None |
0.25C×2hrs20mins |
| 49 |
0.25C× 3hrs10mins |
None |
0.25C× 1.0V/cell |
| 50 |
0.1C×16hrs |
1-4hr(s) |
0.2C×1.0V/cell |
| Cycles 1 to 50 shall be repeated until the discharge duration on any 50th cycle becomes less than 3hrs |
Caution:
1. Reverse charging is not acceptable.
2. Charge before use. The cells / batteries are delivered in an uncharged state.
3. Do not charge / discharge with more than the specified current.
4. Do not short circuit the cell / battery. Permanent damage to the cell / battery may result.
5. Do not incinerate or mutilate the cell /battery.
6. Do not solder directly to the cell /battery.
7. The life expectancy may be reduced if the cell / battery is subjected to adverse conditions like:extreme temperature , deep cycling , excessive overcharge / overdischarge.
8. Store the cell / battery uncharged in a cool dry place. Always discharge batteries before bulk storage or shipment.
9. In order to prevent the decay of battery performance,battery / batteries at least every three
months to conduct a charge-discharge cycle.
10. Keep away from children. If swallowed, contact a physician at once.
11. Air ventilation should be provided in the plastic case of batteries,otherwise it may have a
risk of accumulating gas (oxygen gas, hydrogen gas)generated inside the cell resulting in
explosion triggered by fire sources (motors or switches).
Airtight battery compartments are strongly discouraged.
12.The batteries comply with Restrictions on Hazardous Substances (RoHS) Direction.
NIMH battery list:
| NI-MH rechargeable battery |
| Type |
Voltage(V) |
Capacity(mAh) |
High(mm) |
Diameter(mm) |
| AAA |
1.2 |
600 |
44.0±0.5 |
10.0±0.2 |
| AAA |
1.2 |
600 |
43.5±0.5 |
10.0±0.2 |
| AAA |
1.2 |
650 |
44.0±0.5 |
10.0±0.2 |
| AAA |
1.2 |
650 |
43.5±0.5 |
10.0±0.2 |
| AAA |
1.2 |
700 |
44.0±0.5 |
10.0±0.2 |
| AAA |
1.2 |
700 |
43.5±0.5 |
10.0±0.2 |
| AAA |
1.2 |
800 |
44.0±0.5 |
10.1±0.2 |
| AAA |
1.2 |
800 |
43.5±0.5 |
10.0±0.2 |
| AAA |
1.2 |
850 |
44.0±0.5 |
10.1±0.2 |
| AAA |
1.2 |
850 |
43.5±0.5 |
10.0±0.2 |
| 1/4AAA |
1.2 |
70 |
10.5±0.5 |
10.1±0.2 |
| 2/5AAA |
1.2 |
200 |
20.2±0.5 |
10.0±0.2 |
| 1/3AAA |
1.2 |
120 |
14.6±0.5 |
10.0±0.2 |
| 1/2AAA |
1.2 |
230 |
23.5±0.5 |
10.0±0.2 |
| 2/3AAA |
1.2 |
300 |
27.5±0.5 |
10.0±0.2 |
| 4/5AAA |
1.2 |
500 |
37.5±0.5 |
10.0±0.2 |
| 5/4AAA |
1.2 |
750 |
50.5±0.5 |
10.0±0.2 |
| AA |
1.2 |
600 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
900 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
900 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1100 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1100 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1200 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1200 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1300 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1300 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1500 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1500 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1600 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1600 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1700 |
49.5±0.5 |
13.9±0.2 |
| AA |
1.2 |
1700 |
48.0±0.5 |
13.9±0.2 |
| AA |
1.2 |
1800 |
50.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
1800 |
48.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2000 |
50.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2000 |
48.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2200 |
50.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2200 |
48.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2300 |
50.0±0.5 |
14.2±0.2 |
| AA |
1.2 |
2400 |
50.0±0.5 |
14.2±0.2 |
| 1/3AA |
1.2 |
300 |
16.3±0.5 |
13.9±0.2 |
| 2/5AA |
1.2 |
400 |
21.0±0.5 |
13.9±0.2 |
| 1/2AA |
1.2 |
500 |
24.0±0.5 |
13.9±0.2 |
| 2/3AA |
1.2 |
300 |
28.1±0.5 |
13.9±0.2 |
| 2/3AA |
1.2 |
600 |
28.1±0.5 |
13.9±0.2 |
| 2/3AA |
1.2 |
650 |
28.1±0.5 |
13.9±0.2 |
| 2/3AA |
1.2 |
700 |
28.1±0.5 |
13.9±0.2 |
| 4/5AA |
1.2 |
1200 |
42.6±0.5 |
13.9±0.2 |
| 7/5AA |
1.2 |
1800 |
64.5±0.5 |
13.9±0.2 |
| A |
1.2 |
2100 |
49.0±0.5 |
16.60±0.2 |
| 1/2A |
1.2 |
1000 |
27.4±0.5 |
16.3±0.2 |
| 1/2A |
1.2 |
1100 |
27.4±0.5 |
16.3±0.2 |
| 2/5A |
1.2 |
600 |
21.5±0.5 |
16.60±0.2 |
| 4/5A |
1.2 |
1800 |
42.1±0.5 |
16.60±0.2 |
| 4/5A |
1.2 |
2000 |
42.1±0.5 |
16.60±0.2 |
| 7/5A |
1.2 |
3500 |
66.0±0.5 |
16.60±0.2 |
| 7/5A |
1.2 |
3800 |
66.0±0.5 |
16.60±0.2 |
| SC |
1.2 |
2400 |
42.0±0.5 |
22.0±0.2 |
| SC |
1.2 |
2800 |
42.0±0.5 |
22.0±0.2 |
| SC |
1.2 |
3000 |
42.0±0.5 |
22.0±0.2 |
| SC |
1.2 |
3300 |
42.0±0.5 |
22.0±0.2 |
| 4/5SC |
1.2 |
2000 |
32.5±0.5 |
22.0±0.2 |
| 5/4SC |
1.2 |
3500 |
49.0±0.5 |
22.0±0.2 |
| C |
1.2 |
2500 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
2500 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
3300 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
3300 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
3700 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
3700 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
4000 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
4000 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
4500 |
49.0±0.5 |
25.2±0.2 |
| C |
1.2 |
4500 |
49.0±0.5 |
25.2±0.2 |
| D |
1.2 |
5000 |
60.5±0.5 |
32.1±0.2 |
| D |
1.2 |
5000 |
59.0±0.5 |
32.1±0.2 |
| D |
1.2 |
8000 |
60.5±0.5 |
32.3±0.2 |
| D |
1.2 |
8000 |
59.0±0.5 |
32.1±0.2 |
| D |
1.2 |
8500 |
59.0±0.5 |
32.1±0.2 |
| D |
1.2 |
9000 |
60.5±0.5 |
32.1±0.2 |
| D |
1.2 |
9000 |
59.0±0.5 |
32.1±0.2 |
| 1/2D |
1.2 |
3500 |
36.5±0.5 |
32.1±0.2 |
| 1/2D |
1.2 |
3500 |
35.0±0.5 |
32.1±0.2 |
| F |
1.2 |
14000 |
90.5±0.5 |
32.1±0.2 |
| F |
1.2 |
13000 |
89.0±0.5 |
32.1±0.2 |
| 9V |
9 |
280 |
17.5 |
48.5*26.5 |
Button nimh battery 1.2volt cion nimh battery list:
| Cell model |
Voltage(V) |
Capacity(mah) |
Diameter(mm) |
Height(mm) |
Charge current(mA) |
Discharge current(mA) |
Weight(g) |
Temperature(°C) |
| 20H |
1.2 |
20 |
11.7±0.1 |
3.2±0.2 |
2 |
4 |
1.5 |
0~45 |
| 40H |
1.2 |
40 |
11.7±0.1 |
5.2±0.2 |
4 |
8 |
1.8 |
0~45 |
| 60H |
1.2 |
60 |
15.3±0.1 |
6.1±0.2 |
6 |
12 |
2 |
0~45 |
| 80H |
1.2 |
80 |
15.3±0.1 |
6.1±0.2 |
8 |
16 |
3.5 |
0~45 |
| 110H |
1.2 |
110 |
15.3±0.1 |
7.7±0.2 |
10 |
20 |
4.5 |
0~45 |
| 160H |
1.2 |
150 |
24.5*14±0.1 |
5.2±0.2 |
15 |
30 |
6 |
0~45 |
| 250H |
1.2 |
250 |
25±0.1 |
6.3±0.2 |
25 |
50 |
10 |
0~45 |
| 330H |
1.2 |
330 |
25±0.1 |
8.4±0.2 |
30 |
60 |
12.5 |
0~45 |
