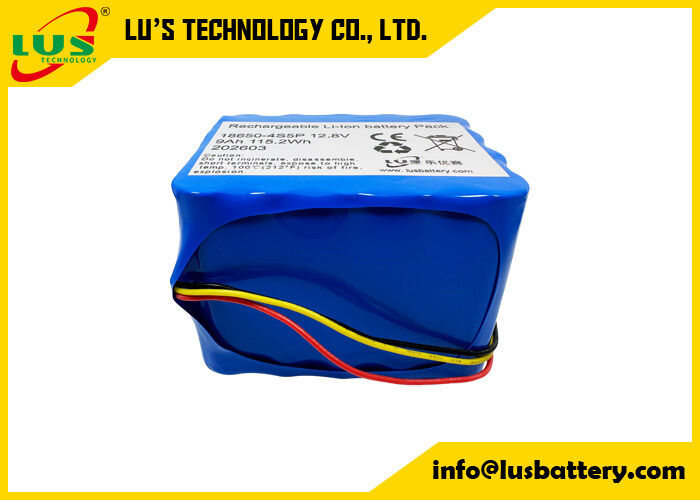

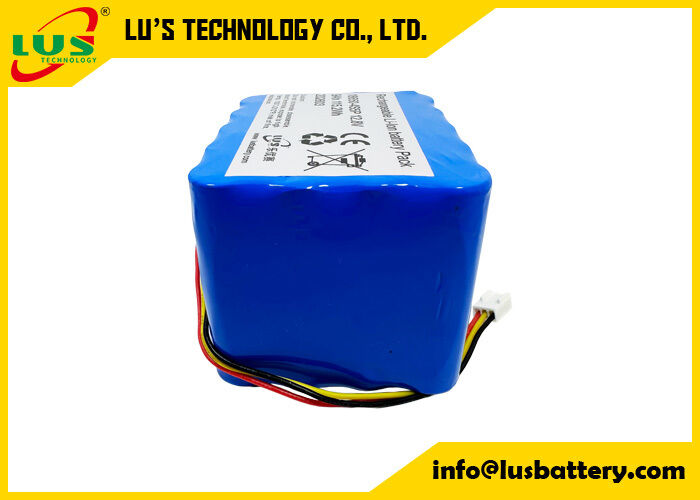

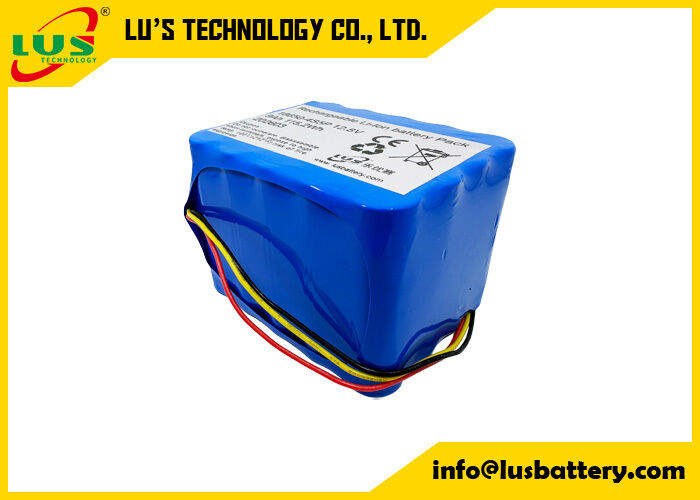

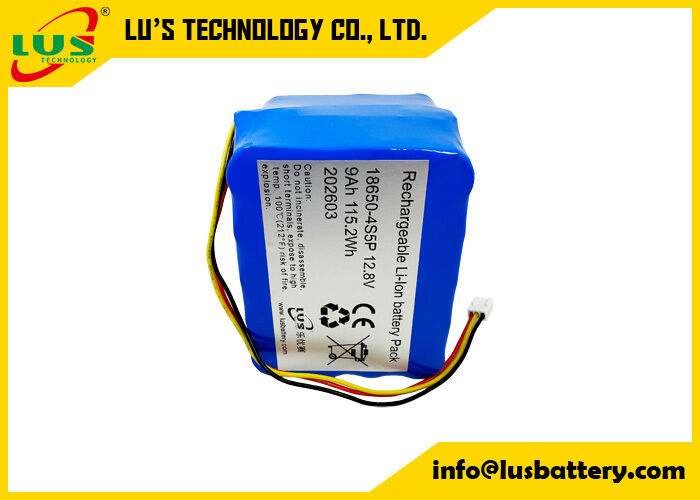

12V 9Ah battery 12.8V 9000mah lithium ion battery pack custom 12Volt battery factory LUS battery OEM and ODM
LiFePO4 battery 12.8V 9Ah 115.2Wh rechargeable li ion battery 12V 7.0Ah lithium battery 12V 7.2Ah li ion battery 12V 9.0Ah rechargeable battery 12.8V 9.6Ah LiFePo4 battery 12.8V 9Ah lithium battery is technology lithium iron phosphate cell battery superior safety and thousands of cycles, 100% DOD, under normal conditions Lithium Battery 12.8V / 9Ah LiFePO4 Battery 9AH 12.8V rechargeable deep cycle battery 12.8V 9Ah LiFePO4 Lithium Iron Phosphate Rechargeable Battery Custom 12V 9Ah LiFePO4 Battery Pack Design Services for all the customers
Battery series: Lifepo4 battery
Battery combination 4S5P lithium battery pack
Voltage 12V 12.8Volt
Capacity 9000mah 9AH li ion batteries
Made with IFR18650 3.2V lifepo4 battery cell
IFR18650 lithium ion battery pack 12V lithium battery 9AH lithium rechargeable battery specification
| Battery series |
rechargeable Lithium-ion battery |
| Combination |
IFR18650 3.2V 1800mah 4S5P |
| Voltage |
12.8Volt |
| Capacity |
9000mah |
| Dimension |
97*75*67.5mm |
| Weight |
880g |
| Max Charge Voltage |
14.6V |
| Standard Charging Current |
500mA |
| Max Continuous Charging Current |
1000mA |
| Max Continuous Discharge Current |
2000mA |
| Protection |
BMS |
| Terminals |
Wires/connector depends on your needed |
LiFePO4 lithium iron phosphate battery 12.8V 9Ah rechargeable ion battery pack 18650 1800mah 4S5P lithium ion battery custom lithium battery pack 9000mah lithium battery 12Volt batteries OEM from LUS battery
Other hot sale 18650 lithium ion battery list:
| Model |
Capacity |
Min. capacity |
Continuous discharge |
Internal resistance |
Certificate |
| 18650F56 |
2200 |
2180mAh |
1C |
≤ 60mΩ |
ULCBBISUNBSMI |
| 18650F8R |
2600 |
2550mAh |
1C(2550mA) |
≤ 60mΩ |
ULCBBISUNBSMI |
| 18650F9L |
3350 |
3250mAh |
0.5C (1625mA)(-20~5℃)
1.5C (4875mA)(5~50℃) |
≤ 60mΩ |
ULCBBISUNBSMI |
| 18650F30 |
3000 |
2900mAh |
1C |
≤ 60mΩ |
ULCBBISUNBSMI |
| 18650F30P |
3000 |
2900mAh |
20A
30A( 80℃) |
≤ 18mΩ |
ULCBBISUNBSMI |
| 21700F2E |
5000 |
4900mAh |
3.0C(14400mA)
(70℃) |
≤ 25mΩ |
ULCBBISUNBSMI |
| 18650F8L |
2600 |
2500mAh |
3C |
≤ 25mΩ(≥ 4.15V) |
ULCBBISUNBSMI |
| 18650F8M7 |
2600 |
2500mAh |
3C |
≤ 30mΩ |
ULCBBISUNBSMI |
| 18650F8P |
2500 |
2500mAh |
20A
30A(80℃) |
≤ 18mΩ |
ULCBBISUNBSMI |
| 18650F9E |
3500 |
3450mAh |
10000mA |
≤ 40mΩ |
ULCBBISUNBSMI |
| 18650F9M |
3200 |
3100mAh |
3.0C(9300mA) |
≤ 40mΩ |
ULCBBISUNBSMI |
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
Other hot sale lithium ion battery pack:
Cost Performance
♦ Long-run Cost: LiFePO4 battery could work at 60°c, with long life 5-10 years.
♦ Smaller Space: 1/3 of the lead acid battery.
♦ Low Maintenance Cost: maintenance free, centralized monitoring and module installatin also to reduce cost for transportation.
♦ Safety Cost: stable discharge platform to avoid euipmet exception.
♦ Save Electricity Power: with same capacity, LiFePO4 battery is more powerful hank lead acid battery, and could support longer.
Outstanding Performance of BMS
Self-Checking
Defect Alerting Function
Capacity (SOC) Calculating
High Voltage Leakage Warning
Charging and Discharging Management
Collection of Voltage, Current and Temperature
Over Current, Over Volt, Temperature Protection
Communication: display / car can bus communication, data transferring
Electric Propelling Applications
Engine Starting Battery
Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
Intellectual Robots
Power tools: electric drills, toys
Energy Storage
Solar-Wind Power System
City Grid (On/Off)
Community and Family
Back-up System and UPS
Telcom Base, CATV system, Computer Server Center, Medical Instrumnt
Other Applications
Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
Cells part number
18650 26650 18500 18350 17500 17650 16340 14500 14430 10440 10280 20700 21700 32140
