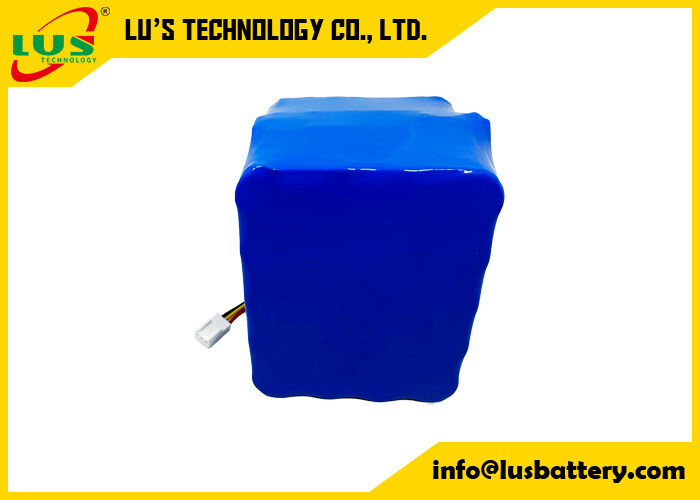

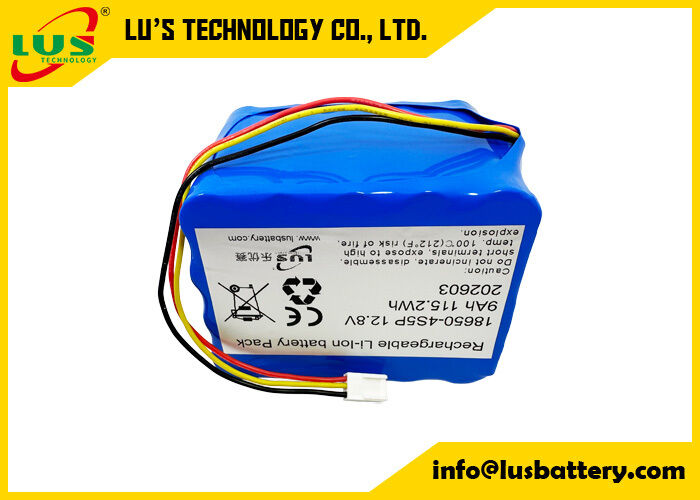

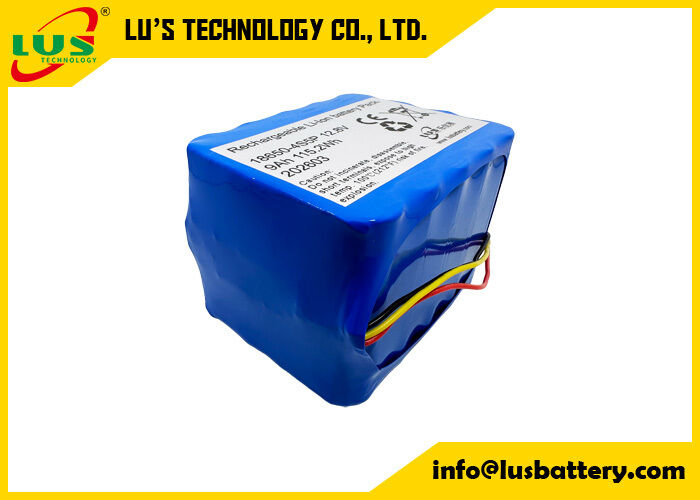

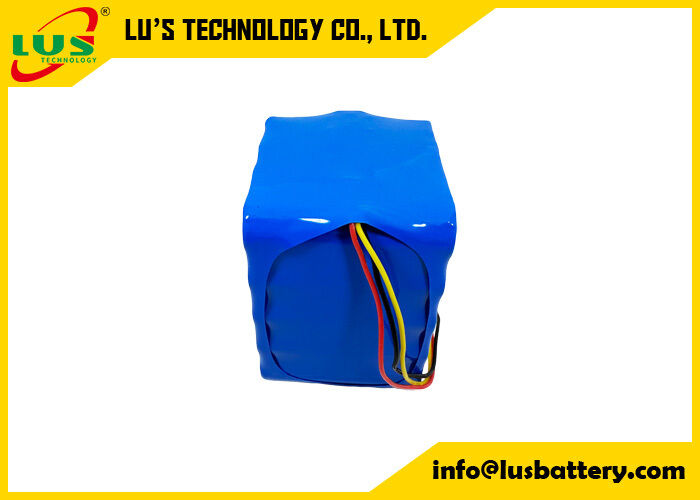

Custom Lithium Ion Battery Pack 9000mah 12.8V LiFepo4 rechargeable battery 12Volt battery
Lithium Ion Battery 12V 9ah Replacement Solar Battery12.8V 9Ah lifepo4 Battery pack 12volt lifepo4 battery pack lfp18650 4S5P 9ah lithium battery 12.8v LFP modules 12.8 V 1800mAh 4S5P LiFePO4 battery pack 4S5P Li-Ion rechargeable battery Module 12.8V Deep Cycles 9Ah LiFePO4 Battery 9000mah LiFePO4 lithium iron phosphate battery 12.8V 9Ah battery 12.8V 9AH Lithium Iron Phosphate LiFePO4 Battery 12V Rechargeable Solar Energy Storage System Battery 12.8V battery replacement Lead-acid Replacement Battery 12.8V battery 9Ah 12.8Ah lithium battery 20Ah 28Ah 38Ah 40Ah 55Ah 100Ah 220Ah Lithium iron Phosphate battery OEM
Lithium 12V-9AH LiFePO4 Lithium Battery 12.8V 9Ah LiFePO4 Battery specification
12V rechargeable lithium ion rechargeable battery 12.8V made with 4S5P LFP18650 3.2V 1800mah battery cell
| Battery series |
rechargeable Lithium-ion battery |
| Combination |
IFR18650 3.2V 1800mah 4S5P |
| Voltage |
12.8Volt |
| Capacity |
9000mah |
| Dimension |
97*75*67.5mm |
| Weight |
880g |
| Max Charge Voltage |
14.6V |
| Standard Charging Current |
500mA |
| Max Continuous Charging Current |
1000mA |
| Max Continuous Discharge Current |
2000mA |
| Protection |
BMS |
| Terminals |
Wires/connector depends on your needed |
12V LiFePO4 battery packs 6Ah 7Ah 9Ah 10Ah 12.8V Lithium battery pack IFR18650 Rechargeable LiFePO4 Battery 12.8V 9ah Lithium Ion Battery 9000mah Rechargeable Battery 9Ah Rechargeable LiFePO4 Battery Pack 12.8V 9Ah 115.2Wh lithium iron phosphate battery
Other hot sale 18650 lithium ion battery list:
| Model |
Capacity |
Min. capacity |
Continuous discharge |
Internal resistance |
Certificate |
| 18650F56 |
2200 |
2180mAh |
1C |
≤ 60mΩ |
ULCBBISUNBSMI |
| 18650F8R |
2600 |
2550mAh |
1C(2550mA) |
≤ 60mΩ |
ULCBBISUNBSMI |
| 18650F9L |
3350 |
3250mAh |
0.5C (1625mA)(-20~5℃)
1.5C (4875mA)(5~50℃) |
≤ 60mΩ |
ULCBBISUNBSMI |
| 18650F30 |
3000 |
2900mAh |
1C |
≤ 60mΩ |
ULCBBISUNBSMI |
| 18650F30P |
3000 |
2900mAh |
20A
30A( 80℃) |
≤ 18mΩ |
ULCBBISUNBSMI |
| 21700F2E |
5000 |
4900mAh |
3.0C(14400mA)
(70℃) |
≤ 25mΩ |
ULCBBISUNBSMI |
| 18650F8L |
2600 |
2500mAh |
3C |
≤ 25mΩ(≥ 4.15V) |
ULCBBISUNBSMI |
| 18650F8M7 |
2600 |
2500mAh |
3C |
≤ 30mΩ |
ULCBBISUNBSMI |
| 18650F8P |
2500 |
2500mAh |
20A
30A(80℃) |
≤ 18mΩ |
ULCBBISUNBSMI |
| 18650F9E |
3500 |
3450mAh |
10000mA |
≤ 40mΩ |
ULCBBISUNBSMI |
| 18650F9M |
3200 |
3100mAh |
3.0C(9300mA) |
≤ 40mΩ |
ULCBBISUNBSMI |
Warning & Tips
1. Keep the battery against high temperature. Otherwise it will cause battery heat, get into fire or lose some functions and reduce the life;
2. When the battery run out of power, please charge it within 15 days；
3. Please use the original or recommended charger for this battery;
4. If the battery leaks and get into the eyes or skin, do not wipe, instead, rinse it with clean water and see doctor immediately;
Other hot sale lithium ion battery pack:
Cost Performance
♦ Long-run Cost: LiFePO4 battery could work at 60°c, with long life 5-10 years.
♦ Smaller Space: 1/3 of the lead acid battery.
♦ Low Maintenance Cost: maintenance free, centralized monitoring and module installatin also to reduce cost for transportation.
♦ Safety Cost: stable discharge platform to avoid euipmet exception.
♦ Save Electricity Power: with same capacity, LiFePO4 battery is more powerful hank lead acid battery, and could support longer.
Outstanding Performance of BMS
Self-Checking
Defect Alerting Function
Capacity (SOC) Calculating
High Voltage Leakage Warning
Charging and Discharging Management
Collection of Voltage, Current and Temperature
Over Current, Over Volt, Temperature Protection
Communication: display / car can bus communication, data transferring
Electric Propelling Applications
Engine Starting Battery
Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
Intellectual Robots
Power tools: electric drills, toys
Energy Storage
Solar-Wind Power System
City Grid (On/Off)
Community and Family
Back-up System and UPS
Telcom Base, CATV system, Computer Server Center, Medical Instrumnt
Other Applications
Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
Cells part number
18650 26650 18500 18350 17500 17650 16340 14500 14430 10440 10280 20700 21700 32140
