Product Details:
|
| Capacity: | 1.2Ah | Voltage: | 3.6v |
|---|---|---|---|
| Storage Temperature (recommended): | +30C | Max. Pulse Current: | 100mA |
| Weight: | Approx 10 G | Size: | 1/2AA |
| High Light: | 3.6V 1.2Ah Lithium Thionyl Chloride Battery,ER14250 Lithium Thionyl Chloride Battery,Thionyl Chloride Lithium Metal Battery |
||
Consumer Battery & Photo Battery 3.6V 1200mAh 1/2-AA BOBBIN CELL 1/2 AA size lithium thionyl chloride battery ER14250
ER14250 1/2AA 3.6V Lithium Battery
Battery Lithium 1/2AA 3,6V 1200mAh D14,5x25,4mm - Primary Batteries
ER14250 Lithium battery 3.6V 1/2 AA for ESM series sensors
Technical data:
Size: 1/2 AA
Voltage: 3.6 V
Capacity: 1.2 Ah
Maximum continuous current: 15mA
Max Pulse Current: 50mA (1 sec)
Dimensions: Diameter: 14.5 mm; Height: 25.4 mm
Weight: 10g
Replaces the batteries:
XENO Energy: XL-050F (1.2)
Tadiran: TL-2150 (0.95), TL-4902 (1.2), TL-5101 (0.95), TL-5151 (0.7), TL-5902 (1.2)
Sonnenschein: SL-350 (1.0), SL-750 (0.95)
Toshiba: ER3V (1.0), ER4V (1.2)
Maxell: ER3S (0.79)
Eagle Picher: LTC-9C (0.95)
SAFT: LS14250
Vitzro: SB-AA02 (1.2), SB-AA02P (1.2)
EEMB/GMB: ER14250 (1.1)
These are batteries with a very wide range of applications, m.in:
Memory Retention
Industrial and office equipment
Medical devices
Alarms and alarm Systems
Gas flow meters, water
Professional Electronics
Locational buje
Signalling devices
Vehicle Electronics
Other manufacturers ' designations:
SAFT LST 14250 CNA, SAFT LS-14250, SAFT LS14250CNA, Sonnenschein SL-150, SL150/P, Sonnenschein SL-350, SL-350/S, SL-350/P, SL-350/T, SL-350/PR, SL-350/PT, Sonnenschein SL-550, SL-550/T, SL-550/P, SL-550/PR, SL-550/PT, Sonnenschein SL-750, SL-750/P, SL750, SL-750S, SL-750/T, SL-750/PR, SL-750/PT, Sonnenschein SL-850, Maxell ER3S, ER3S-TC Maxell, Tadiran TL-2150, Tadiran-4902, Tadiran-5101, Tadiran-5111, Tadiran 5151, Tadiran 5902, Toshiba ER3V, Tekcell SB-AA02, Tekcell SB-AA02P, Tekcell SB-AA02 TC, Tekcell SB-AA02 AX, PBQ ER14250, PBQ ER-14250, FUTE ER14250, FUTE ER 14250H.
ER 14250 3.6v batteryTechnical data:
| Model | ER14250 |
| Voltage | 3.6V |
| Capacity | 1.2Ah |
| Max constant current of discharge | 50mA |
| Max discharge current(pulse) | 100mA |
| Weight | 10g |
| Operating temperature range | -55~85℃ |
| Jacket | PVC or Plastic case |
| Terminals | Pins/tabs/customized |
| Samples | Available |
Lithium Thionyl Chloride Battery 3.6V List:
| Model | voltage (v) | capacity(mAh) | demension(mm) | Nominal Discharge Current(mA) | weight (g) | |
| Diameter | Height | |||||
| ER10250 | 3.6 | 400 | 10.5 | 25 | 0.5 | 5 |
| ER10280 | 3.6 | 450 | 10.5 | 28 | 0.5 | 6 |
| ER10450 | 3.6 | 700 | 10.5 | 45 | 1 | 8 |
| ER14250 | 3.6 | 1200 | 14.5 | 25.4 | 1 | 10 |
| ER14335 | 3.6 | 1600 | 14.5 | 33.5 | 1 | 12 |
| ER14505 | 3.6 | 2400 | 14.5 | 50.5 | 2 | 19 |
| ER17335 | 3.6 | 1800 | 17.5 | 34 | 3 | 18 |
| ER17505 | 3.6 | 3200 | 17.5 | 50.5 | 3 | 26 |
| ER18505 | 3.6 | 3600 | 18.7 | 50.5 | 3 | 28 |
| ER26500 | 3.6 | 9000 | 26.2 | 50 | 4 | 52 |
| ER34320 | 3.6 | 8000 | 34.2 | 32.5 | 4 | 58 |
| ER34615 | 3.6 | 19000 | 34.2 | 61.5 | 5 | 100 |
| ER341245 | 3.6 | 36000 | 34.2 | 124.5 | 10 | 195 |
| ER14250M | 3.6 | 800 | 14.5 | 25.4 | 2 | 10 |
| ER14335M | 3.6 | 1300 | 14.5 | 33.5 | 3 | 13 |
| ER14505M | 3.6 | 2200 | 14.5 | 50.5 | 4 | 19 |
| ER17505M | 3.6 | 2800 | 17.5 | 50.5 | 5 | 27 |
| ER18505M | 3.6 | 3200 | 18.7 | 50.5 | 5 | 28 |
| ER26500M | 3.6 | 6500 | 26.2 | 50 | 10 | 52 |
| ER34615M | 3.6 | 14000 | 34.2 | 61.5 | 15 | 100 |
| ER13150S | 3.6 | 300 | 13.2 | 15 | 0.5 | 6 |
| ER14250S | 3.6 | 750 | 14.5 | 25.2 | 1 | 10 |
| ER14505S | 3.6 | 1600 | 14.5 | 50.5 | 2 | 20 |
| ER26500S | 3.6 | 4100 | 26.2 | 50 | 4 | 60 |
| ER34615S | 3.6 | 10500 | 34.2 | 61.5 | 5 | 106 |
| ER2450 | 3.6 | 500 | 24.5 | 5.9 | 1 | 9 |
| ER32100 | 3.6 | 1700 | 32.9 | 10 | 1 | 25 |
| ER3265 | 3.6 | 1000 | 32.9 | 6.5 | 1 | 17 |
| ER9V | 10.8 | 1200 | 17*26.3*48.5 | 1 | 30 | |
| EF651615 | 3.6 | 400 | 16.8*15.8*6.8 | 1 | 5 | |
| EF651625 | 3.6 | 750 | 16.8*25.8*6.8 | 1 | 8 | |
| Remark: 1)"M"-Power Type; 2)"S"-High Temperature; | ||||||

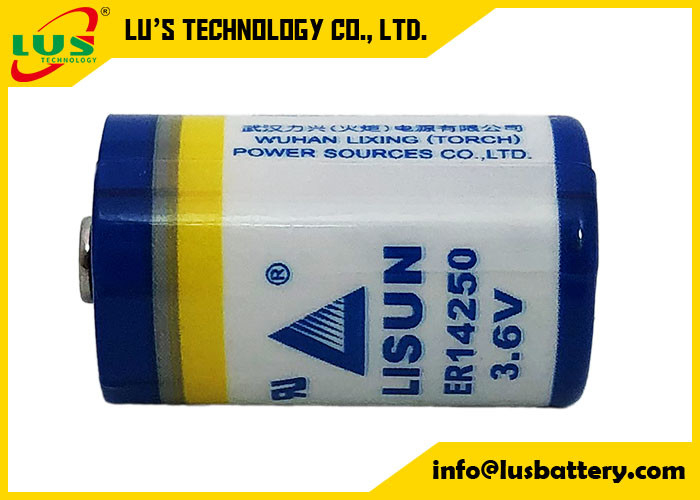

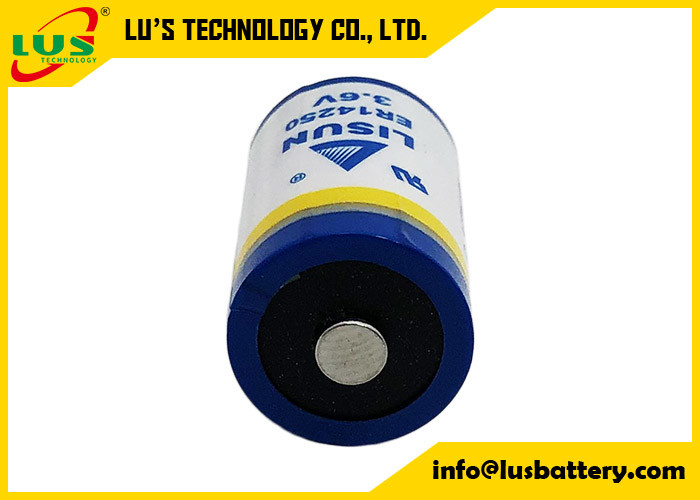

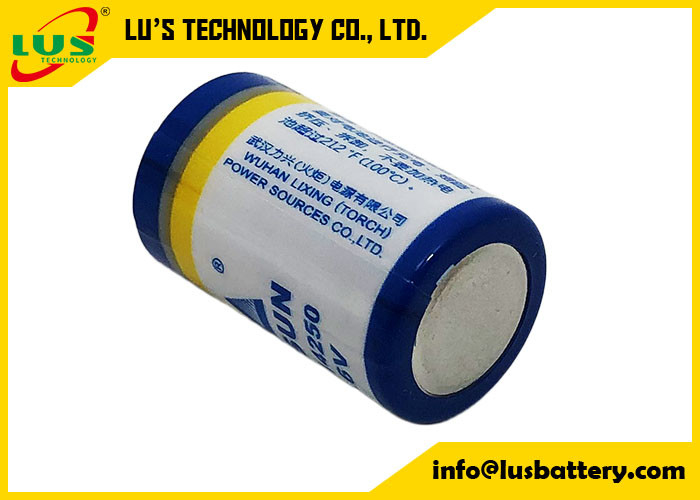

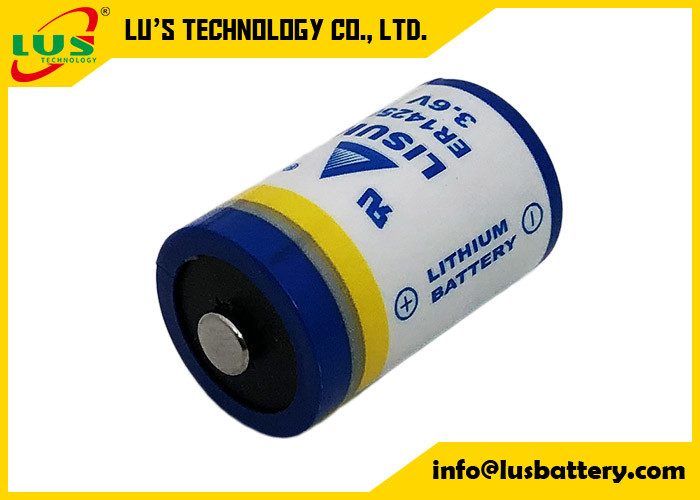

ER14250 lithium battery Drawing and picture:
