lithium manganese battery,
non rechargeable battery
CR14505 3V Primary Lithium Batteries AA size
Technical Data Sheet:
Lithium Manganese batteires 3V APPLICATION:
Lithium Primary Batteries Li mno2 3V Key Features
1. High Energy Density
It is about 3 to 10 times more energy density than any other secondary battery. The energy
density of Li/MnO2 battery is up to 370Wh/kg and above.
2. High and Stable Operating Voltage
CR Series >2.7V (OCV 3.0V)
3. Wide Operating Current Range
To ensure the ten year service life, the cell operating current is merely at a few microamperes.
On the other hand, Forte also offers a wide range of options for varied needs; we can also
provide the cells with pulse current up to several amperes.
4. Wide Operating Temperature Range
For different cell types and under different operating current and applications, the operating
temperature endures from -40℃ to +70℃.
5. Long Shelf Life
Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly
capacity loss of the CR series less than 1% .
6. Outstanding Service Life
Up to 10 years operating life for some application based on different current.
7. Ultimate Safety
All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test
Hermetically glass to metal sealed.
Blast resistant construction to assure the safety.
Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of
the wastes are naturally degradable and no long-term pollution to environment.
Cautions in use
To ensure proper use of the battery please read the manual carefully before using it.
Do not expose to, dispose of the battery in fire.
Do not put the battery in a charger or equipment with wrong terminals connected.
Avoid shorting the battery
Avoid excessive physical shock or vibration.
Do not disassemble or deform the battery.
Do not immerse in water.
Do not use the battery mixed with other different make, type, or model batteries.
Keep out of the reach of children.
Store the battery in a cool, dry and well-ventilated area.
Regulations vary for different countries.
Dispose of in accordance with local regulations.
Any other items which are not covered in this specification shall be agreed by both parties.
Lithium Manganese Dioxide Battery List:
|Mode||Voltage (V)||Capacity (mAh)||Discharge Current(mA)||End Voltage(V)||Diameter(mm)||Height (mm)||Weight (g)||Testing Temp.(℃)|

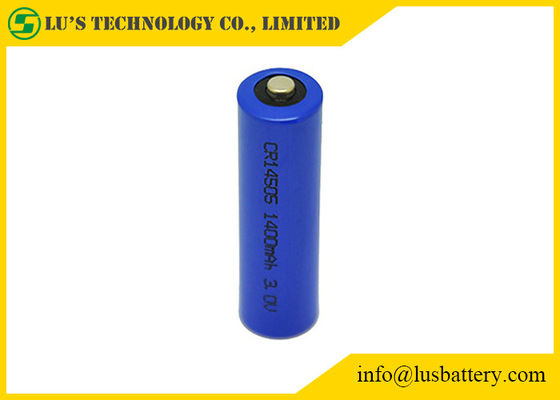

Primary lithium battery Product Picture:
