Place of Origin:
China
Brand Name:
OEM
Certification:
IEC, CE, SGS, ISO, Rohs
Model Number:
12v alkaline battery 27A

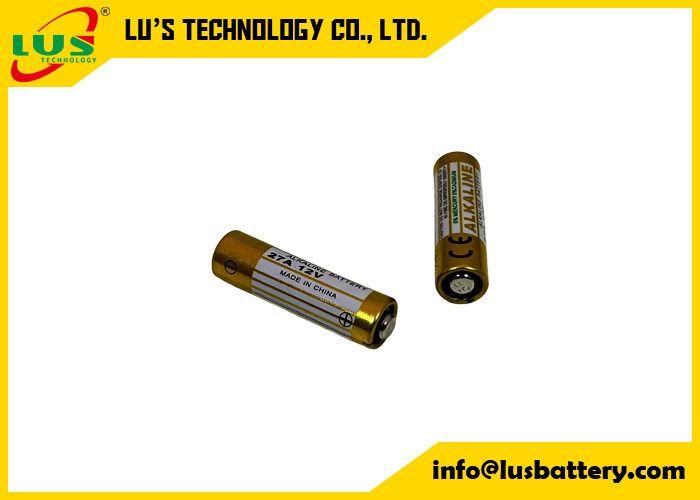

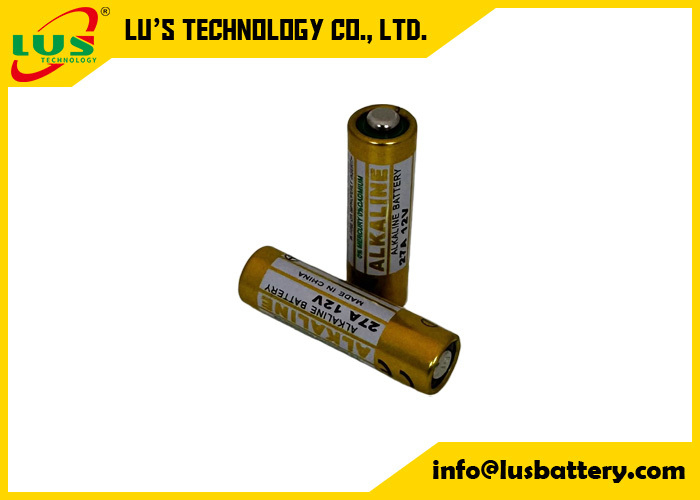

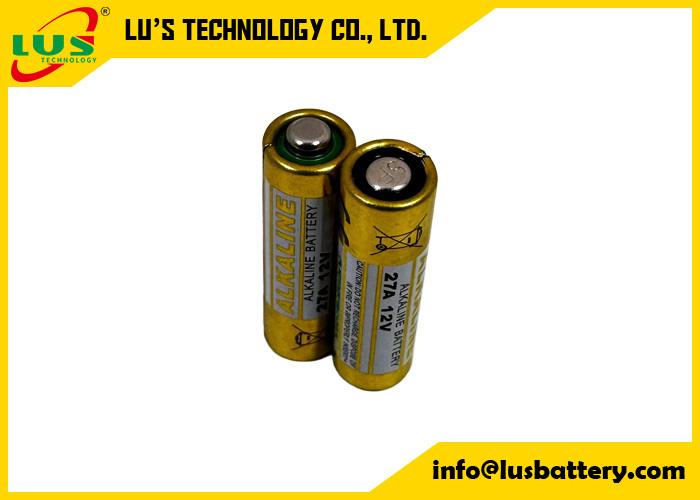

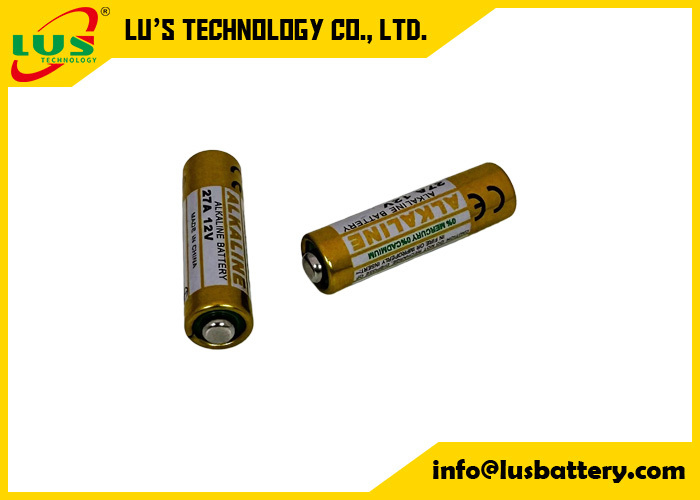

A27 27A 12V Alkaline Battery A27 Alkaline Battery 12volt Alkaline 12V Battery MN27A
12V ALKALINE ZINC-MANGANESE DIOXIDE MERCURY-FREE BATTERY 23A 27A dry cell battery pack 12volt batteries
27A 12V Alkaline Batteries A27 battery 12V battery 27A 12 Volt Alkaline Battery MN27 V27A high voltage battery 27A 27A, Alkaline cell battery V27A, A27BP, G27A is a dry cell-type battery used in some small remote controls and some cigarette lighters.
A single A27 battery A27 27A Alkaline batteries are 12V 20mAh batteries Alkaline Button Cell Battery pack 27A 12V Alkaline Batteries
Garage Door Opener Battery 12Volt dry cell battery A27 Dry Cell Replacement for A27 V27A LR27A WE27A L828 MN27 12 Volt alkaline battery
A27 Dry Alkaline Battery 27A 12V A27 For Doorbel 27A-BP A27 / MN27 12V Alkaline Battery 27A 12V Alkaline battery
MN27 V27GA L828 A27 G27A FS Battery This battery replaces 27A A27 GP27A CA22 MN27 L828 CN27A
Alkaine battery IEC:--- Others: L1028,A23,MN21,MS21,V23GA,LR23A Alkaline-Manganese Dioxide battery
Nominal Voltage:12.0V
Battery part number: 27A battery A27alkaline cell battery
Battery capcaity arround 20mah
27A Alkaline battery 12V Primary battery 27A alkaline USAGE GUIDE
(1) insert batteries correctly with regard to the polarities (“+""-") marked on the battery and theelectrical appliances.
(2) Do not short-circuit, recharge, heat, disassemble the battery, or dispose of in fire.
(3) Do not mix use old batteries with new ones, or mix use batteries of different types, chemistries orbrands.
(4)Exhausted batteries should be immediately removed from the equipment.
(5) Keep the batteries away from small children. Do not let the child remove/replace batterieswithout monitoring from adults.
(6)Storage temperature: 5°C~30°c, and humidity conditions RH: 40%~90%.
12V 27A High Voltage Alkaline Battery data sheet:
Battery type | Alkaline battery 12Volt A27 primary battery |
Part number | 27A Alkaline 27A |
Material | Alkaline-Manganese Dioxide (-) Zn︱KOH︱MnO2(+) |
Voltage | 12 volt |
Weight | 4.4g |
End-point voltage | 6 volt |
Battery shape | Cylindrical alkaline battery |
Dimension | 7.7*27.8mm |
Package | In blister card or In box depends on your needed |
OEM and ODM | Welcome |
27A Battery 12V Alkaline Button Cell Battery Factory Alarm Battery 12volt Alkaline Battery 27A :
Size 12v battery A27 Mn27 alkaline battery :
Items | Off-load voltage | On-load voltage | Acceptance criteria |
Initial (Within 30 days after delivery) |
≥12.4V | ≥11.5V | MIL-STD105E,ClassⅡ, Double Sampling ,AQL=0.4 |
After 12 months | ≥12.2V | ≥11.0V |
Primary Alkaline battery 12V A27 Alkaline Photo Battery list
Model | Diameter | Height | Norminal Voltage | Test condition | Discharge |
(mm) | (mm) | (V) | |||
23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
LR03/AAA/ | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
3.9Ω, 24h/d, 0.9V | 2.5h | ||||
LR6/AA/ | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
3.9Ω, 24h/d, 0.9V | 6.4h | ||||
LR14/C/ | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
6.8Ω, 1h/d, 0.9V | 39h | ||||
LR20/D/ | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
3.9Ω, 1h/d, 0.9V | 42h | ||||
6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
270Ω, 1h/d, 5.4V | 1150min |
12V Rechargeable Alkaline battery 27A dry cell 12V
Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
(mm) | (mm) | (V) | ||||
HR03/AAA/7 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
HR6/AA/5 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
Lithium alkaline battery Factory information:
We have professional teams on R&D, engineers and quality control experts on product development.
There are eleven production lines in our factory,
four lines for alkaline battery AA size,
three lines for alkaline battery AAA size,
two lines for alkaline battery C size,
one line for alkaline battery D size and one line for alkaline battery 9V size.
