Place of Origin:
China
Brand Name:
HLK or OEM
Model Number:

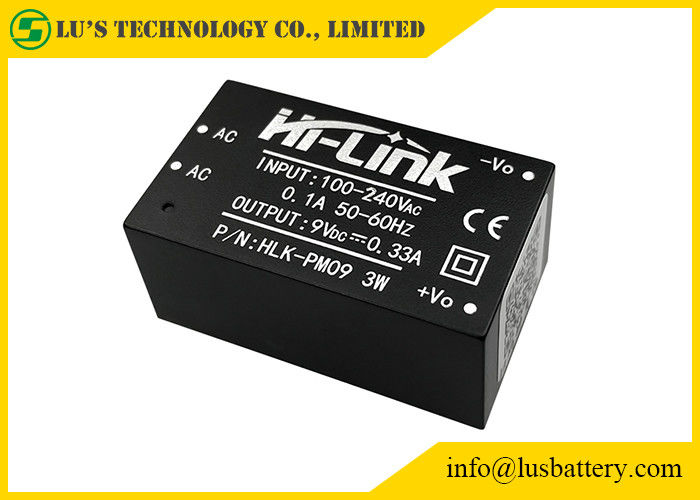

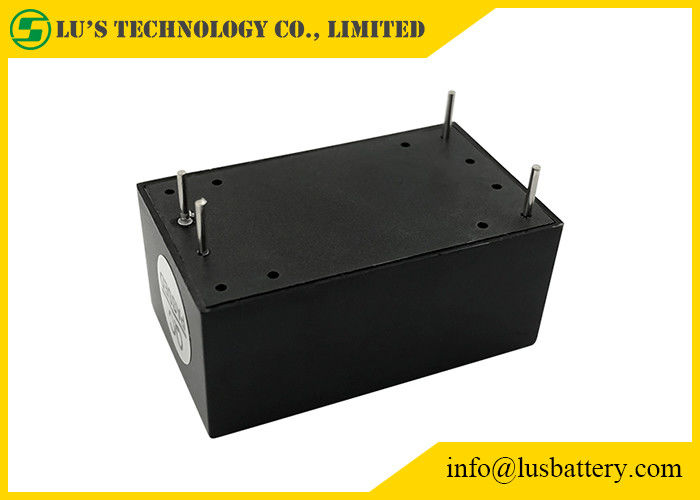

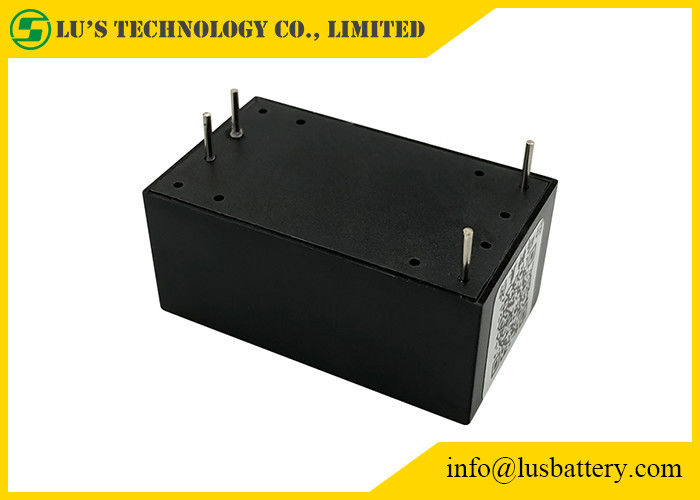

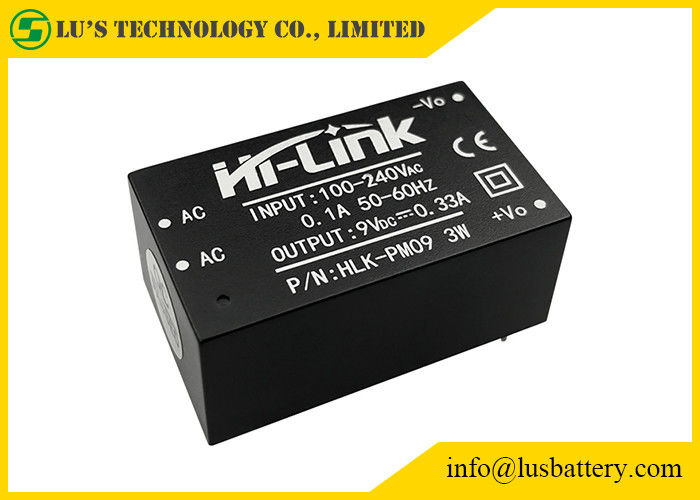

HLK-PM09
Input characteristics (test at room temperature 20 ℃).
Rated input voltage: 100-240 VAc
Input voltage range: 90-264 VAc
Maximum input current: ≤0.2 A
Input current surge: ≤10 A
maximum input voltage: ≤270 VAc
Enter slow start: ≤50 mS
Input Low Voltage Efficiency: Vin=110VAc,Output full-load≥69 %
Input High Voltage Efficiency: Vin=220VAc,output full-load≥70 %
Long-term reliability MTBF: ≥100,000 h
Load rated output voltage: +5±0.1 VDc
Full rated output voltage: +5±0.2 VDc
Short-term maximum output current: ≥1000 mA
The maximum output current for a long time: ≥600 mA
Voltage Regulation: ±0.2 %
Load Regulation: ±0.5 %
Output ripple and noise: (mVp-p) ≤50
Rated input voltage, full load. Using 20MHz of bandwidth,
The load side 10uF and 0.1uF capacitor to be tested. mV
Switch overshoot amplitude (Rated input voltage and output load plus 10%)≤5 %VO
Output over-current protection 150-200% of the output maximum load A
Output short circuit protection Direct short circuit at the normal output, automatically resume normal operation after a short circuit removal
| Model NO. | Size (mm) | Weight (g) | Output Power (w) | Output Voltage (v) | Output Current (mA) | Efficiency %(TYP) |
| HLK-2M03 | 30*16*19 | 18g | 2W | 3.3 | 600 | 69 |
| HLK-2M05 | 5 | 400 | ||||
| HLK-2M09 | 9 | 230 | ||||
| HLK-2M12 | 12 | 170 | ||||
| HLK-2M24 | 24 | 84 | ||||
| HLK-PM01 | 34*20*15 | 20g | 3W | 5 | 600 | 72 |
| HLK-PM03 | 3.3 | 1000 | ||||
| HLK-PM09 | 9 | 330 | ||||
| HLK-PM12 | 12 | 250 | ||||
| HLK-PM24 | 24 | 125 | ||||
| HLK-5M03 | 38*23*18 | 32g | 5W | 3.3 | 1500 | 72 |
| HLK-5M05 | 5 | 1000 | ||||
| HLK-5M09 | 9 | 560 | ||||
| HLK-5M12 | 12 | 450 | ||||
| HLK-5M24 | 24 | 208 | ||||
| HLK-10M03 | 47*28*22 | 40g | 10W | 3.3 | 3000 | 72 |
| HLK-10M05 | 5 | 2000 | ||||
| HLK-10M09 | 9 | 1100 | 78 | |||
| HLK-10M12 | 12 | 830 | ||||
| HLK-10M24 | 24 | 416 | ||||
| HLK-12M12 | 50.8*25.4*15 | 80g | 12W | 12 | 1000 | 86 |
| HLK-20M05 | 57*33*22.5 | 80g | 20W | 5 | 4000 | 80 |
| HLK-20M09 | 9 | 2200 | ||||
| HLK-20M12 | 12 | 1666 | ||||
| HLK-20M15 | 15 | 1300 | ||||
| HLK-20M24 | 24 | 833 | 84 | |||
| HLK-30M05 | 56*32*22.5 | 80g | 30W | 5 | 6000 | 89 |
| HLK-30M09 | 9 | 3300 | 90 | |||
| HLK-30M12 | 12 | 2500 | ||||
| HLK-30M15 | 15 | 2000 | ||||
| HLK-30M24 | 24 | 1250 | ||||
| HLK-40M05 | 56*32*22.5 | 80g | 40W | 5 | 8000 | 89 |
| HLK-40M09 | 9 | 4400 | 90 | |||
| HLK-40M12 | 12 | 3300 | ||||
| HLK-40M15 | 15 | 2600 | ||||
| HLK-40M24 | 24 | 1600 |
| Items | Technical Parameters | Units | Notes |
| No-load rated output voltage | 9.0±0.1 | Vdc | |
| Full-load tated output voltage | 9.0±0.2 | Vdc | |
| Short time maximum output current | ≥430 | mA | |
| Long time maximum output current | 330 | mA | |
| Voltage regulation | ±0.2 | % | |
| Load regulation | ±0.5 | % | |
| Input low voltage efficiency | Vin=115Vac, Output full load≥73 | % | |
| Input high voltage efficiency | 3Vin=230Vac, Output full load≥73 | % | |
| Output ripple and noise (mVp-p) | ≤120 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test | mV | |
| Switching on/off overshoot amplitude | (Rated input voltage, output plus 10% load)≤5 | %Vo | |
| Output over-current protection | Output maximum load 110-150% | A | |
| Output short circuit protection | Direct short circuit in normal output and automatic return to nomal operation after removal of short circuit | No-damage to the whole device |
