Place of Origin:
China
Brand Name:
HLK or OEM
Model Number:
HLK-5M12

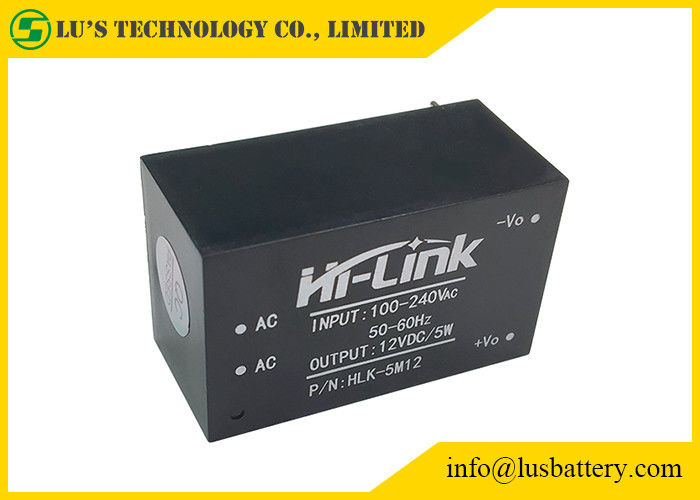

5W Ultra small series power module
5M03/5M05/5M09/5M12/5M24
| Model NO. | Size (mm) | Weight (g) | Output Power (w) | Output Voltage (v) | Output Current (mA) | Efficiency %(TYP) |
| HLK-5M03 | 38*23*18 | 32g | 5W | 3.3 | 1500 | 72 |
| HLK-5M05 | 5 | 1000 | ||||
| HLK-5M09 | 9 | 560 | ||||
| HLK-5M12 | 12 | 450 | ||||
| HLK-5M24 | 24 | 208 |
The 5W ultra-small series module power supply is a small-volume, high-efficiency AC DC power odule supply .
| Items | Technical Parameters | Units | Notes |
| No-load rated output voltage | 12.0±0.1 | Vdc | |
| Full-load tated output voltage | 12.0±0.2 | Vdc | |
| Short time maximum output current | ≥540 | mA | |
| Long time maximum output current | 450 | mA | |
| Voltage regulation | ±0.2 | % | |
| Load regulation | ±0.5 | % | |
| Input low voltage efficiency | Vin=115Vac, Output full load≥69 | % | |
| Input high voltage efficiency | 3Vin=230Vac, Output full load≥70 | % | |
| Output ripple and noise (mVp-p) | ≤70 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test | mV | |
| Switching on/off overshoot amplitude | (Rated input voltage, output plus 10% load)≤5 | %Vo | |
| Output over-current protection | Output maximum load 110-150% | A | |
| Output short circuit protection | Direct short circuit in normal output and automatic return to nomal operation after removal of short circuit | No-damage to the whole device |
Product features
1. Ultra-thin, ultra-small, smallest volume;
2. Global universal input voltage(90~265Vac)
3. Low power consumption, green environmental protection, no-load loss<0.1W
4. Low ripple, low noise
5. High output short circuit and over-current protection and self recovery
6. High efficiency, high power density
7. Input and output isolation voltage 3000Vac
8. 100% full load aging and testing
9. High reliability, long life design, continuous working time is greater than 100,000 hours;
10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;
11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and
dust to meet IP65 standards
12. Economic solutions, cost-effective
13. Work without external circuit
14. 1 year quality guarantee period
