Place of Origin:
China
Brand Name:
HLK or OEM
Model Number:
hilink20M09
Note:test at room temperature
Project Name
|
Technical Criterial
|
Unit
|
Note
|
Rated Input Voltage
|
100-240
|
Vac
|
|
Input Voltage Range
|
85-264
|
Vac
|
or 70-350Vdc
|
Maximum input current
|
≤0.6
|
A
|
|
Input surge current
|
≤34
|
A
|
|
Input slow start
|
≤50
|
mS
|
|
Input high voltage
|
MTBF≥100000
|
%
|
|
efficiency
|
|||
Long-term reliability
|
2A/250Vac
|
h
|
|
External fuse
|
|
|
slow fuse
|
recommendation
|

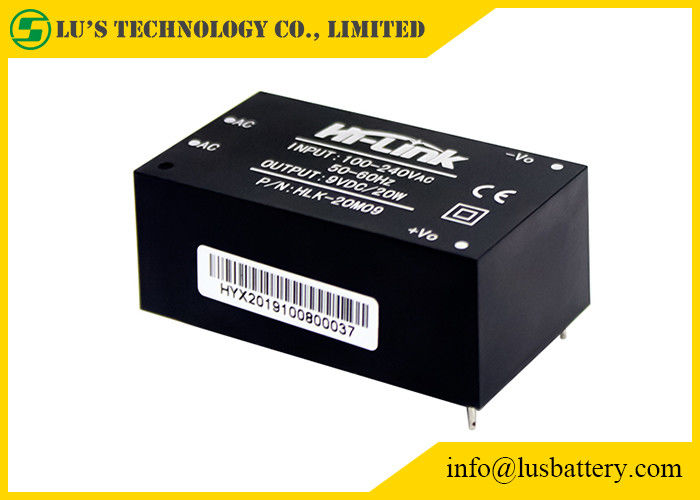

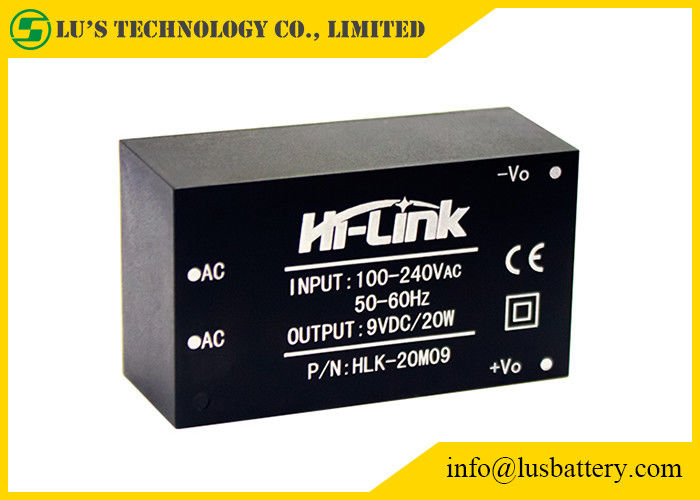

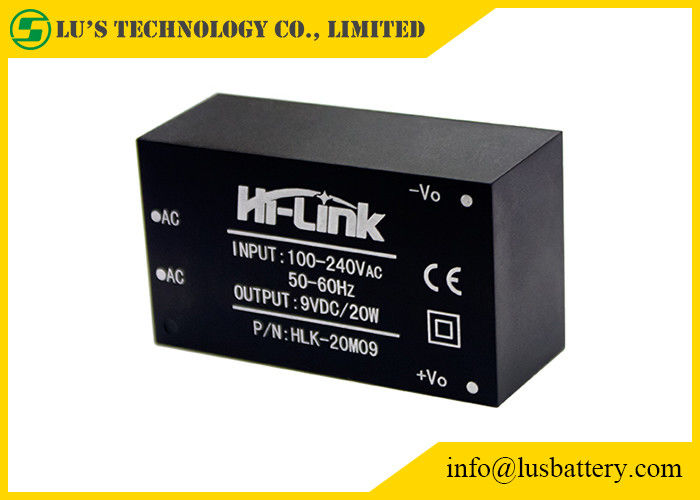

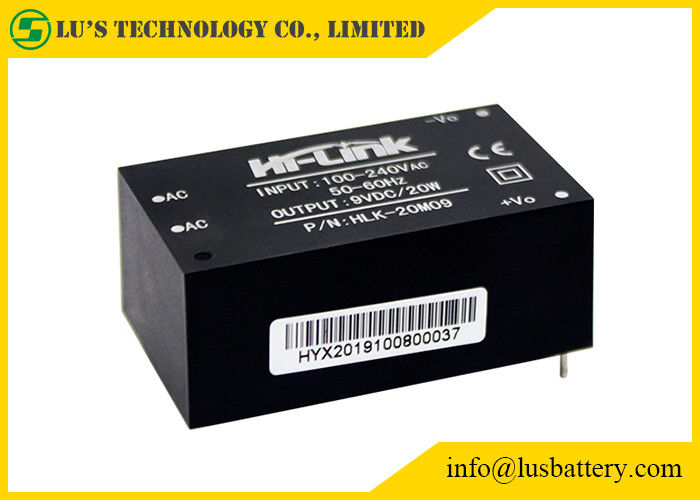

9V/2200mA MINI power supply hlk 20m09 Characteristic:
Input
Output:
Items | Technical Parameters | Units | Notes |
No-load rated output voltage | 9±0.1 | Vdc | |
Full-load tated output voltage | 9±0.2 | Vdc | |
Short time maximum output current | ≥2300 | mA | |
Long time maximum output current | 2200 | mA | |
Voltage regulation | ±0.2 | % | |
Load regulation | ±0.5 | % | |
Input low voltage efficiency | Vin=115Vac, Output full load≥80 | % | |
Input high voltage efficiency | Vin=230Vac, Output full load≥82 | % | |
Output ripple and noise (mVp-p) | ≤150 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test | mV | |
Switching on/off overshoot amplitude | (Rated input voltage, output plus 10% load)≤5 | %Vo | |
Output over-current protection | 110-150% of maximum output load | A | |
Output short circuit protection | Direct short circuit in normal output and automatic return to nomal operation after removal of short circuit | No-damage to the whole device |
Model NO. | Size (mm) | Weight (g) | Output Power (w) | Output Voltage (v) | Output Current (mA) | Efficiency %(TYP) |
HLK-2M03 | 30*16*19 | 18g | 2W | 3.3 | 600 | 69 |
HLK-2M05 | 5 | 400 | ||||
HLK-2M09 | 9 | 230 | ||||
HLK-2M12 | 12 | 170 | ||||
HLK-2M24 | 24 | 84 | ||||
HLK-PM01 | 34*20*15 | 20g | 3W | 5 | 600 | 72 |
HLK-PM03 | 3.3 | 1000 | ||||
HLK-PM09 | 9 | 330 | ||||
HLK-PM12 | 12 | 250 | ||||
HLK-PM24 | 24 | 125 | ||||
HLK-5M03 | 38*23*18 | 32g | 5W | 3.3 | 1500 | 72 |
HLK-5M05 | 5 | 1000 | ||||
HLK-5M09 | 9 | 560 | ||||
HLK-5M12 | 12 | 450 | ||||
HLK-5M24 | 24 | 208 | ||||
HLK-10M03 | 47*28*22 | 40g | 10W | 3.3 | 3000 | 72 |
HLK-10M05 | 5 | 2000 | ||||
HLK-10M09 | 9 | 1100 | 78 | |||
HLK-10M12 | 12 | 830 | ||||
HLK-10M24 | 24 | 416 | ||||
HLK-12M12 | 50.8*25.4*15 | 80g | 12W | 12 | 1000 | 86 |
HLK-20M05 | 57*33*22.5 | 80g | 20W | 5 | 4000 | 80 |
HLK-20M09 | 9 | 2200 | ||||
HLK-20M12 | 12 | 1666 | ||||
HLK-20M15 | 15 | 1300 | ||||
HLK-20M24 | 24 | 833 | 84 | |||
HLK-30M05 | 56*32*22.5 | 80g | 30W | 5 | 6000 | 89 |
HLK-30M09 | 9 | 3300 | 90 | |||
HLK-30M12 | 12 | 2500 | ||||
HLK-30M15 | 15 | 2000 | ||||
HLK-30M24 | 24 | 1250 | ||||
HLK-40M05 | 56*32*22.5 | 80g | 40W | 5 | 8000 | 89 |
HLK-40M09 | 9 | 4400 | 90 | |||
HLK-40M12 | 12 | 3300 | ||||
HLK-40M15 | 15 | 2600 | ||||
HLK-40M24 | 24 | 1600 |
20W AC DC PCB POWER SUPPLY:
