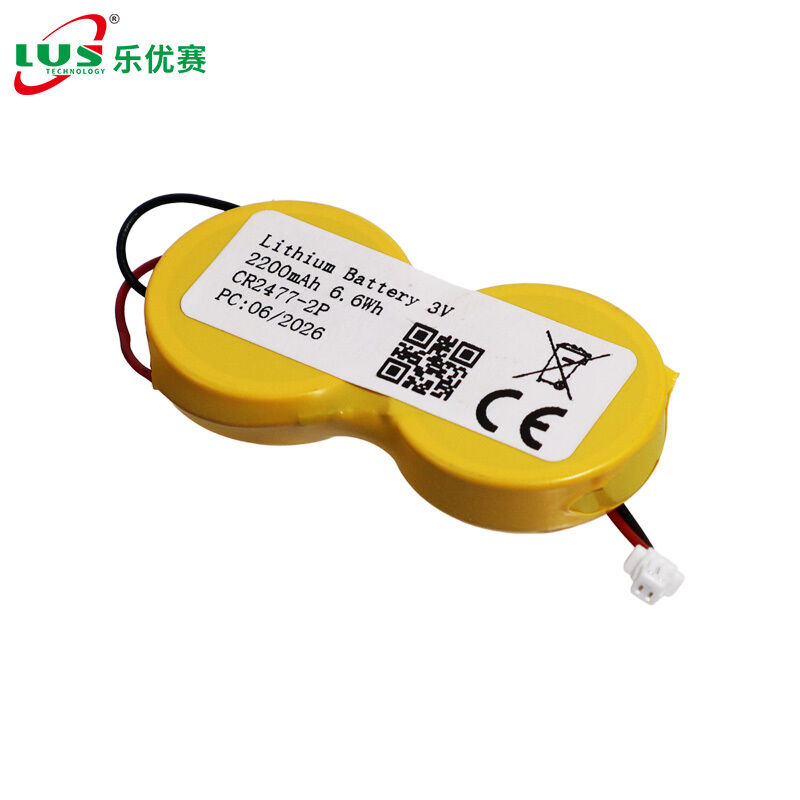

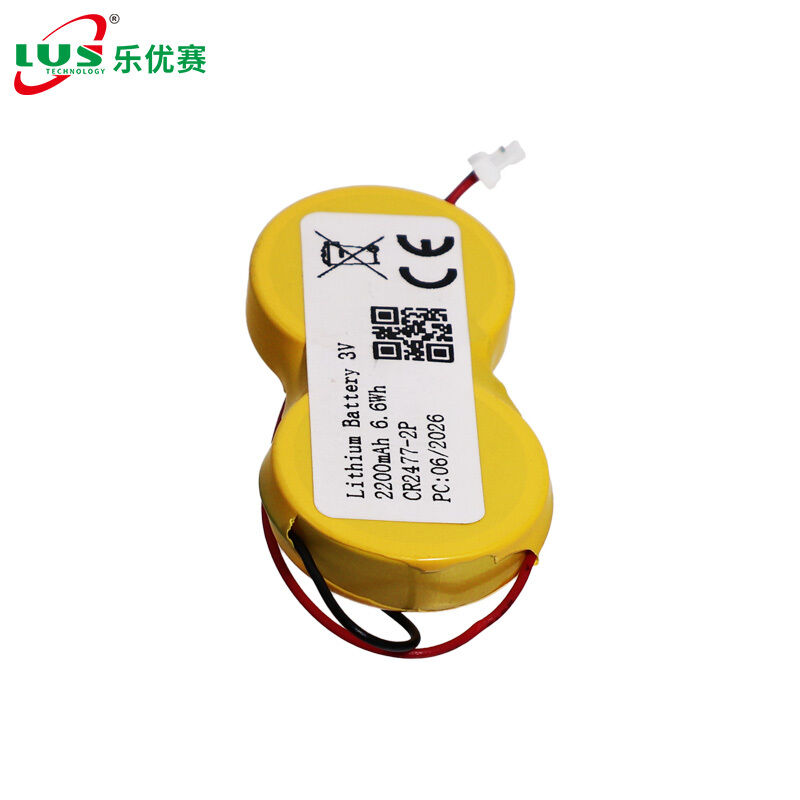

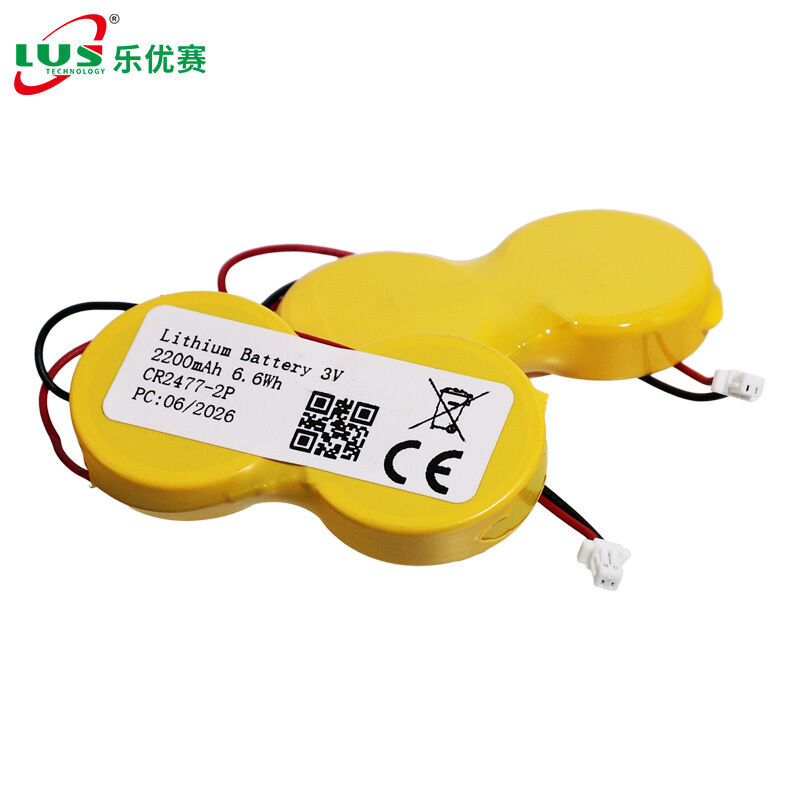

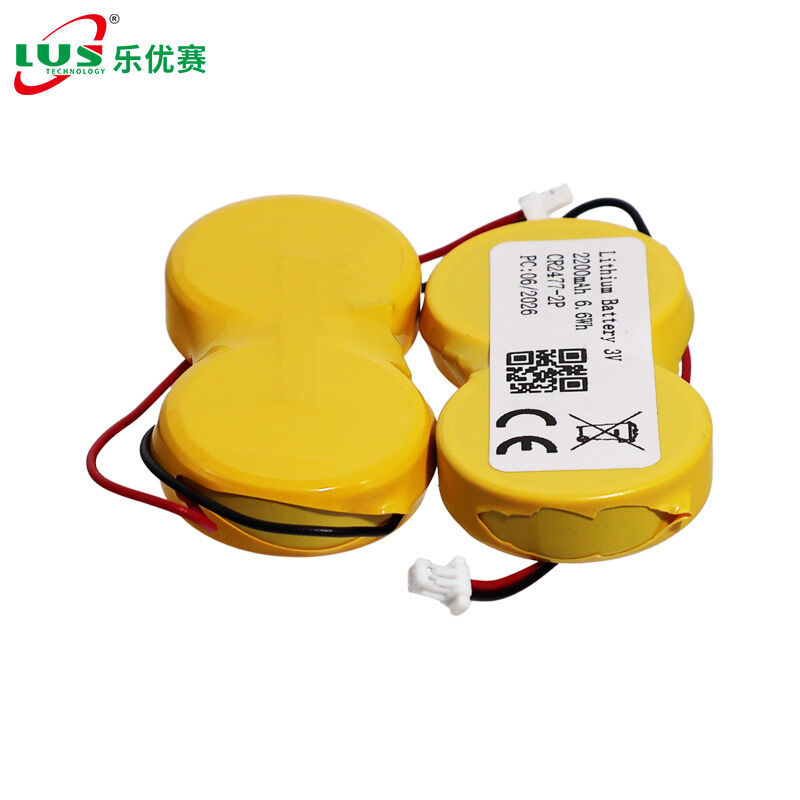

3V 2200mah CR2477 lithium button Manganese battery 1S2P CR2477-2P battery custom
CR2477-2 battery 3V lithium coin cell battery CR2477 2200mah Lithium button battery CR2477-2P 3V Battery CR2477N Batteries 3V 2200mah Lithium Battery CR2477 Lithium Manganese Dioxide Battery CR2477 3v Lithium Battery CR2477-2P Lithium Metal Batteries CR2477 cion battery CR2477 2P battery pack 2CR2477 Non-rechargeable Lithium Button battery CR2477 Battery CR2477-2P Lithium cion cell battery 3VCR2477 non rechargeable battery 3V Lithium Coin Cell Batteries 2 Pack custom wtih 2P connector CR2477 lithium battery pack OEM
CR2477T lithium battery 3V 1100mah cion battery pack 1S2P CR2477 battery pack 2200mah button cell battery pack CR2477-2P batteries
| ITEM |
UNIT |
SPECIFICATIONS |
CONDITIONS |
| Model number |
CR |
CR2477 or CR2477T |
button cell |
| Nominal voltage |
V |
3.0 |
Standard discharge |
| Nominal capacity |
mAh |
1000 - 1100 singe cell |
Standard discharge |
| Combination |
|
1S2P |
|
| Capacity |
mAh |
2000-2200mah battery pack |
|
| Off-load voltage |
V |
≥3.30 |
|
| Storage temperature |
|
0~35 |
|
| Standard weight |
g |
25 |
1S2P |
| Terminals |
|
wires and connectore |
Can be customized |
CR2477 3V Lithium Cell Batteries CR2477 button battery 3.0volt lithium manganese dioxide button battery CR2477 3v lithium batteries Equivalent to: ECR2477, BR2477, BR2477-1W, CR2477, DL2477, KCR2477, LM2477 CR2477N
How to order:
1. Inquiring
2. Discussion
3. Offer and PI
4. Deposit
5. Final Drawing confirmation.
6. Start production -push production -follow production-finished production.
7. Take a movie or photo of the product and share it with the buyer.
8. Rest Payment
9. Ready to ship out.
10. Send out to carrier/forwarder.
11. Follow the shipping things.
12. After-sales service. ( Life Service support)
CR2477 single cell specification:
| ITEM |
UNIT |
SPECIFICATIONS |
CONDITIONS |
| Nominal voltage |
V |
3.0 |
Standard discharge |
| Nominal capacity |
mAh |
1000 |
Standard discharge |
| Instantaneous short–circuit current |
mA |
≥250 |
Time≤0.5 second |
| Off-load voltage |
V |
≥3.30 |
|
| Storage temperature |
℃ |
0~35 |
|
| Standard weight |
g |
9.5 |
Unit cell |
| Service output |
Initial |
Standard |
500 h |
Continuous discharge with load 1.5kΩ, till 2.0v end-voltage |
| Minimum |
480 h |
| After 12 months storage |
Standard |
475 h |
| Minimum |
470 h |
TABLE Ⅱ:
| ITEM |
CONDITIONS |
CHARACTERISTICS |
| Self-discharge rate |
Stored for 12 months at normal temperature, then continuously discharged with 1.5kΩ load till 2.0v end-voltage |
≤5% |
Coin Cell Battery Application:
Widely used in watches,computers, laptops, music card;
Voice table,hearing aids, electroni cnotepads, dict;
Cameras, medical devices, flashing lights;
Shoes, lamps and other electronic products.
Such as:
Vacuum cleaner, shaver, MP3, MP4, Digital camera, portable computer,
Lighting, electrical toys, electronic game Machine and electrical vehicles,
Cordless Phones, interphones, and all kinds of Cell phones.
Advantage for Button Cell Battery Lithium Limno2:
High capacity and long cycle life
Long service lifespan
Excellent life cycle
Enviromental friendly
High energy density
Excellent overcharge performance
Rapid charge performance
Lower inner resistance and low self-discharge
Safety and reliability
Wide temperature range, specially design battery can used in high and low temperature
Good quality with competitive price and best service
Suggestions And Cautions
1 Install batteries correctly.
2 Ensure the contact points to be clean and conductive.
3 Do not mix different types, different brands batteries to serve together.
4 Do not heat, recharge the batteries.
5 Do not dispose of the batteries in fire.
6 Keep away from the small children, if swallowed promptly see doctor.
7 Pay attention to the producing date.
Coin Cell Lithium Battery List:
| Mode |
Voltage(V) |
Capacity(mAh) |
Dimension(mm) |
Weight(g) |
Chargeable or Non |
| CR2032 |
3 |
220 |
20.0*3.2 |
3 |
Non |
| CR2032 |
3 |
240 |
20.0*3.2 |
3 |
Non |
| CR1220 |
3 |
35 |
12.5*2.0 |
0.8 |
Non |
| CR1225 |
3 |
50 |
12.5*2.5 |
0.9 |
Non |
| CR1616 |
3 |
50 |
16.0*1.6 |
1.1 |
Non |
| CR1620 |
3 |
70 |
16.0*2.0 |
1.3 |
Non |
| CR1632 |
3 |
120 |
16.0*3.2 |
1.8 |
Non |
| CR2016 |
3 |
83 |
20.0*1.6 |
1.7 |
Non |
| CR2025 |
3 |
150 |
20.0*2.5 |
2.5 |
Non |
| CR2450 |
3 |
600 |
24.5*5.0 |
6.2 |
Non |
| CR3032 |
3 |
550 |
30.0*3.2 |
7 |
Non |
| ML1220 |
3 |
17 |
12.5*20 |
0.8 |
Yes |
Rechargeable cion cell Lithium Battery Product:
| Model |
Nominal Voltage (V) |
Nominal Capacity (mAh) |
Max. Discharge Current (mA) |
Resistance (mΩ) |
Diameter (mm) |
Height (mm) |
Weight Approx (g) |
| LIR1025 |
3.6 |
6±2 |
1C |
|
10.0 -0.15 |
2.5 +0.15 |
1.1±0.2 |
| LIR1220 |
3.6 |
8±2 |
1C |
|
12.5 -0.2 |
2.0 +0.35 |
0.8±0.3 |
| LIR1254 |
3.6 |
65±5 |
1C |
≤600 |
12.0 -0.2 |
5.4 +0.2 |
1.8±0.2 |
| LIR1620 |
3.6 |
16±2 |
1C |
≤2000 |
16.0 -0.2 |
2.0 +0.35 |
1.2±0.3 |
| LIR1632 |
3.6 |
25±2 |
1C |
≤2000 |
16.0 -0.2 |
3.2 +0.35 |
1.7±0.3 |
| LIR1654 |
3.6 |
120±5 |
1C |
≤600 |
16.0 -0.2 |
5.4 +0.2 |
2.4±0.2 |
| LIR2016 |
3.6 |
18±2 |
2C |
≤2000 |
20.0 -0.2 |
1.6 +0.35 |
1.7±0.3 |
| LIR2025 |
3.6 |
25±5 |
2C |
≤2000 |
20.0 -0.2 |
2.5 +0.25 |
2.3±0.3 |
| LIR2032 |
3.6 |
40±5 |
2C |
≤600 |
20.0 -0.2 |
3.2 +0.35 |
2.8±0.3 |
| LIR2050 |
3.6 |
80±5 |
2C |
≤600 |
20.0 -0.2 |
5.0 +0.2 |
3.8±0.2 |
| LIR2430 |
3.6 |
60±5 |
2C |
≤500 |
24.5 -0.2 |
3.0 +0.35 |
3.8±0.3 |
| LIR2450 |
3.6 |
120±10 |
2C |
≤450 |
24.5 -0.2 |
5.0 +0.35 |
5.0±0.3 |
| LIR2477 |
3.6 |
180±10 |
2C |
≤400 |
24.5 -0.2 |
7.7 +0.3 |
7.0±0.3 |
