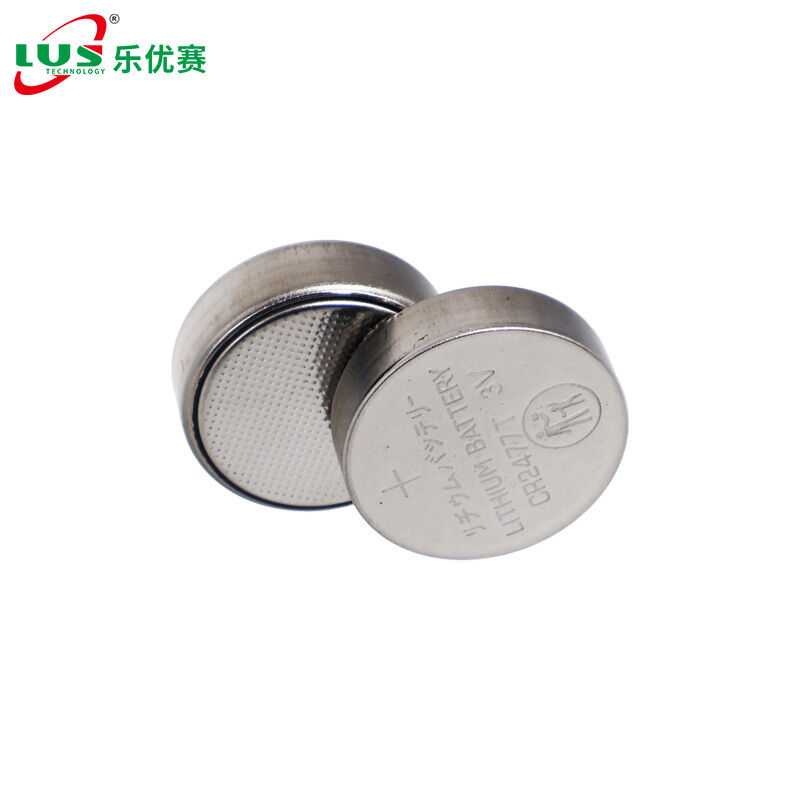

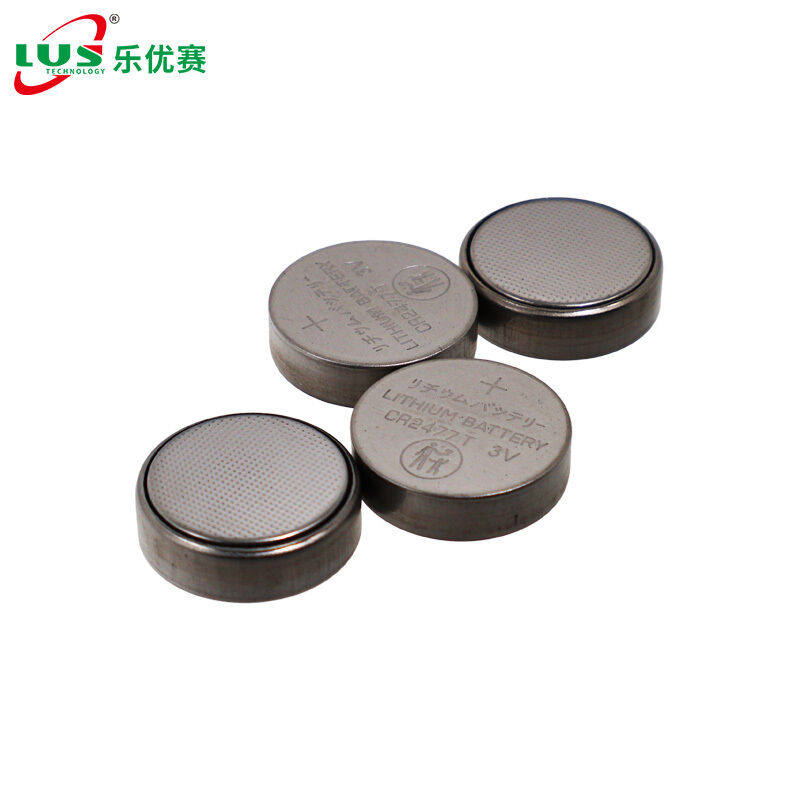

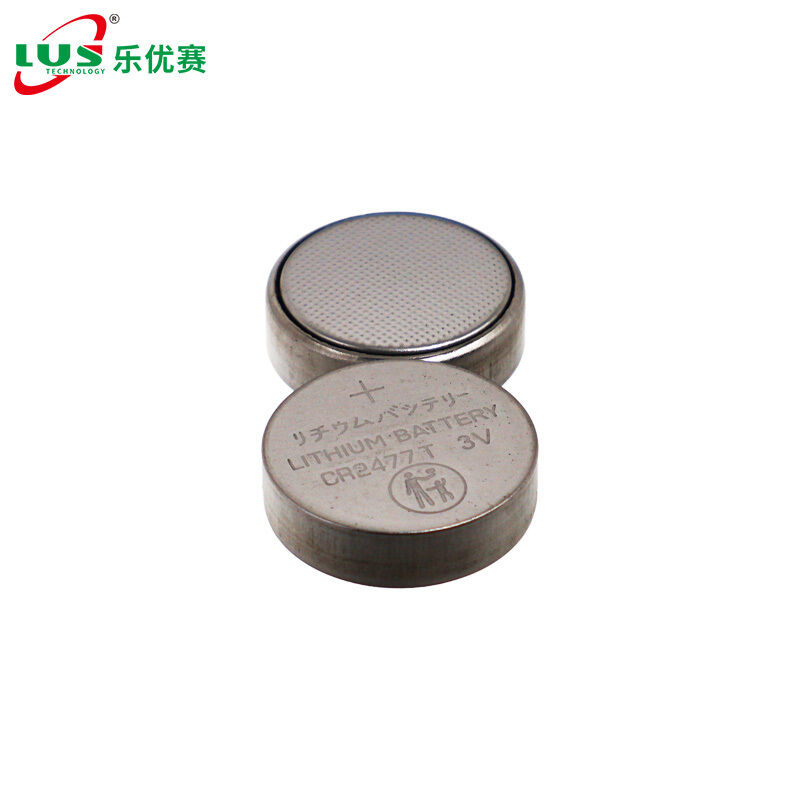

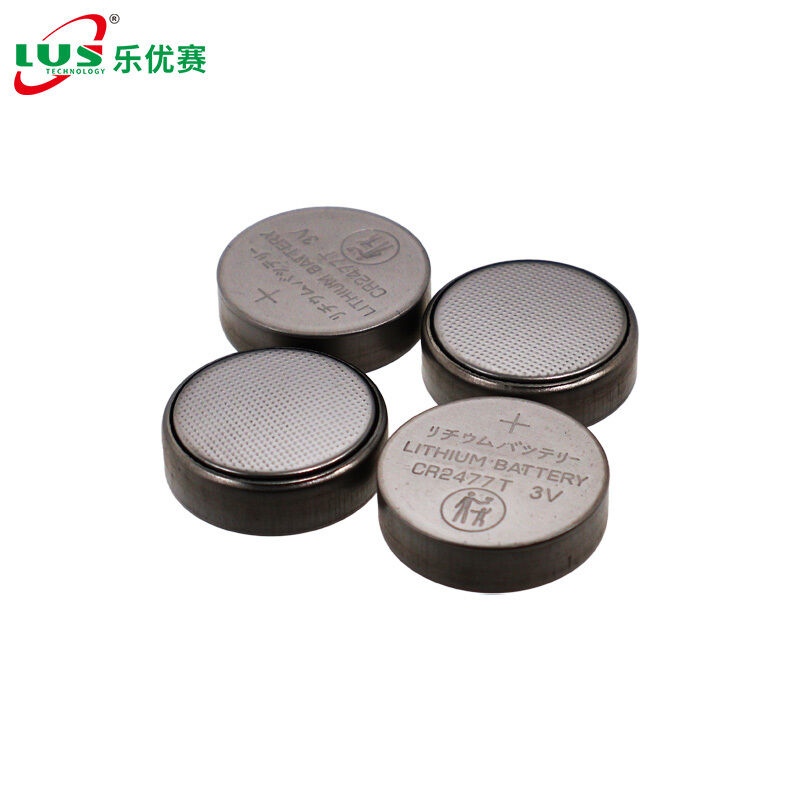

CR2477T CR2477 3V Lithium Coin Cell battery 3.0V 1000mah 1100mah primary lithium battery OEM
CR2477 Coin type Primary Lithium Batteries cr2477 CR series Standard button baattery CR2477 Coin cell battery with diameter 24.5mm Lithium Manganese Dioxide 3 V Battery CR2477 Non-Rechargeable Primary battery CR2477T BATTERY LITHIUM 3V COIN primary battery CR2477 3V coin-type Lithium Battery CR2477T non-rechargeable lithium coin cell battery CR2477 SM Coin Lithium Manganese Dioxide battery 3 V Battery CR2477 Non-Rechargeable coin manganese dioxide lithium battery CR2477 3 Volt 950 Mah Lithium Coin Battery CR2477 1000mah Lithium cell battery CR2477 non-rechargeable cell battery 3.0-volt button manganese-dioxide lithium battery CR2477 Lithium Coin Cell Battery 3V battery offering High-capacity, long-lasting, reliable power for watches, medical devices, key fobs, and electronic equipment.
Specification for CR2477T Lithium Button type Battery 3.0V CR2477 batteris:
TABLE Ⅰ:
| ITEM |
UNIT |
SPECIFICATIONS |
CONDITIONS |
| Nominal voltage |
V |
3.0 |
Standard discharge |
| Nominal capacity |
mAh |
1100 |
Standard discharge |
| Instantaneous short–circuit current |
mA |
≥250 |
Time≤0.5 second |
| Off-load voltage |
V |
≥3.30 |
|
| Storage temperature |
℃ |
0~35 |
|
| Standard weight |
g |
9.5 |
Unit cell |
| Service output |
Initial |
Standard |
500 h |
Continuous discharge with load 1.5kΩ, till 2.0v end-voltage |
| Minimum |
480 h |
| After 12 months storage |
Standard |
475 h |
| Minimum |
470 h |
TABLE Ⅱ:
| ITEM |
CONDITIONS |
CHARACTERISTICS |
| Self-discharge rate |
Stored for 12 months at normal temperature, then continuously discharged with 1.5kΩ load till 2.0v end-voltage |
≤5% |
CR2477 Coin Button Li Battery 3V CR2477T single cell lithium battery 3.0volt button battery
Coin Cell Battery Application:
Widely used in watches,computers, laptops, music card;
Voice table,hearing aids, electroni cnotepads, dict;
Cameras, medical devices, flashing lights;
Shoes, lamps and other electronic products.
Such as:
Vacuum cleaner, shaver, MP3, MP4, Digital camera, portable computer,
Lighting, electrical toys, electronic game Machine and electrical vehicles,
Cordless Phones, interphones, and all kinds of Cell phones.
Advantage for Button Cell Battery Lithium Limno2:
High capacity and long cycle life
Long service lifespan
Excellent life cycle
Enviromental friendly
High energy density
Excellent overcharge performance
Rapid charge performance
Lower inner resistance and low self-discharge
Safety and reliability
Wide temperature range, specially design battery can used in high and low temperature
Good quality with competitive price and best service
Suggestions And Cautions
1 Install batteries correctly.
2 Ensure the contact points to be clean and conductive.
3 Do not mix different types, different brands batteries to serve together.
4 Do not heat, recharge the batteries.
5 Do not dispose of the batteries in fire.
6 Keep away from the small children, if swallowed promptly see doctor.
7 Pay attention to the producing date.
Coin Cell Lithium Battery List:
| Mode |
Voltage(V) |
Capacity(mAh) |
Dimension(mm) |
Weight(g) |
Chargeable or Non |
| CR2032 |
3 |
220 |
20.0*3.2 |
3 |
Non |
| CR2032 |
3 |
240 |
20.0*3.2 |
3 |
Non |
| CR1220 |
3 |
35 |
12.5*2.0 |
0.8 |
Non |
| CR1225 |
3 |
50 |
12.5*2.5 |
0.9 |
Non |
| CR1616 |
3 |
50 |
16.0*1.6 |
1.1 |
Non |
| CR1620 |
3 |
70 |
16.0*2.0 |
1.3 |
Non |
| CR1632 |
3 |
120 |
16.0*3.2 |
1.8 |
Non |
| CR2016 |
3 |
83 |
20.0*1.6 |
1.7 |
Non |
| CR2025 |
3 |
150 |
20.0*2.5 |
2.5 |
Non |
| CR2450 |
3 |
600 |
24.5*5.0 |
6.2 |
Non |
| CR3032 |
3 |
550 |
30.0*3.2 |
7 |
Non |
| ML1220 |
3 |
17 |
12.5*20 |
0.8 |
Yes |
Lithium button type rechargeable Battery Product:
| Model |
Nominal Voltage (V) |
Nominal Capacity (mAh) |
Max. Discharge Current (mA) |
Resistance (mΩ) |
Diameter (mm) |
Height (mm) |
Weight Approx (g) |
| LIR1025 |
3.6 |
6±2 |
1C |
|
10.0 -0.15 |
2.5 +0.15 |
1.1±0.2 |
| LIR1220 |
3.6 |
8±2 |
1C |
|
12.5 -0.2 |
2.0 +0.35 |
0.8±0.3 |
| LIR1254 |
3.6 |
65±5 |
1C |
≤600 |
12.0 -0.2 |
5.4 +0.2 |
1.8±0.2 |
| LIR1620 |
3.6 |
16±2 |
1C |
≤2000 |
16.0 -0.2 |
2.0 +0.35 |
1.2±0.3 |
| LIR1632 |
3.6 |
25±2 |
1C |
≤2000 |
16.0 -0.2 |
3.2 +0.35 |
1.7±0.3 |
| LIR1654 |
3.6 |
120±5 |
1C |
≤600 |
16.0 -0.2 |
5.4 +0.2 |
2.4±0.2 |
| LIR2016 |
3.6 |
18±2 |
2C |
≤2000 |
20.0 -0.2 |
1.6 +0.35 |
1.7±0.3 |
| LIR2025 |
3.6 |
25±5 |
2C |
≤2000 |
20.0 -0.2 |
2.5 +0.25 |
2.3±0.3 |
| LIR2032 |
3.6 |
40±5 |
2C |
≤600 |
20.0 -0.2 |
3.2 +0.35 |
2.8±0.3 |
| LIR2050 |
3.6 |
80±5 |
2C |
≤600 |
20.0 -0.2 |
5.0 +0.2 |
3.8±0.2 |
| LIR2430 |
3.6 |
60±5 |
2C |
≤500 |
24.5 -0.2 |
3.0 +0.35 |
3.8±0.3 |
| LIR2450 |
3.6 |
120±10 |
2C |
≤450 |
24.5 -0.2 |
5.0 +0.35 |
5.0±0.3 |
| LIR2477 |
3.6 |
180±10 |
2C |
≤400 |
24.5 -0.2 |
7.7 +0.3 |
7.0±0.3 |
