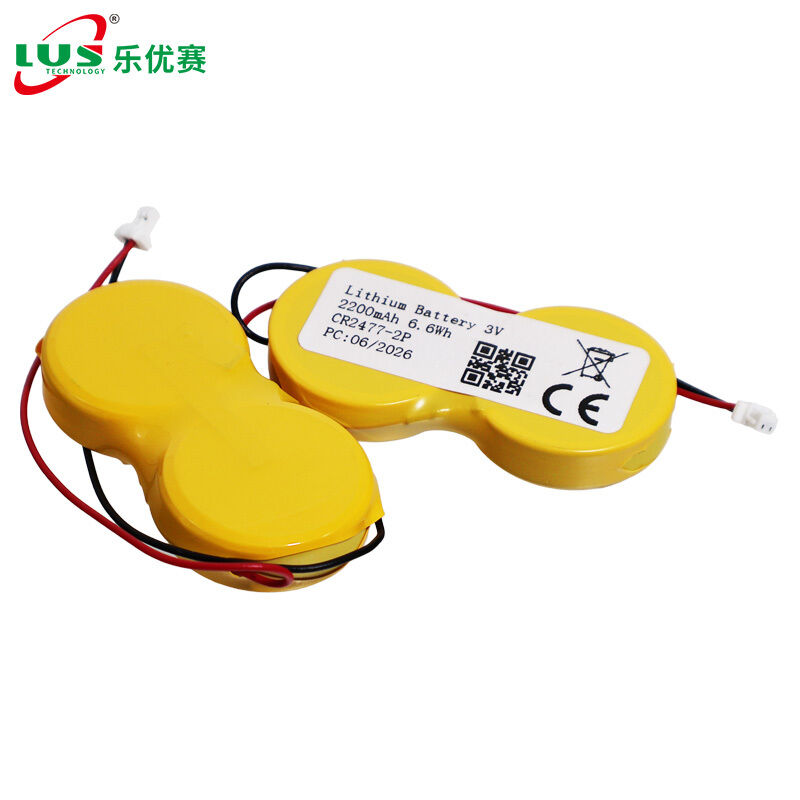

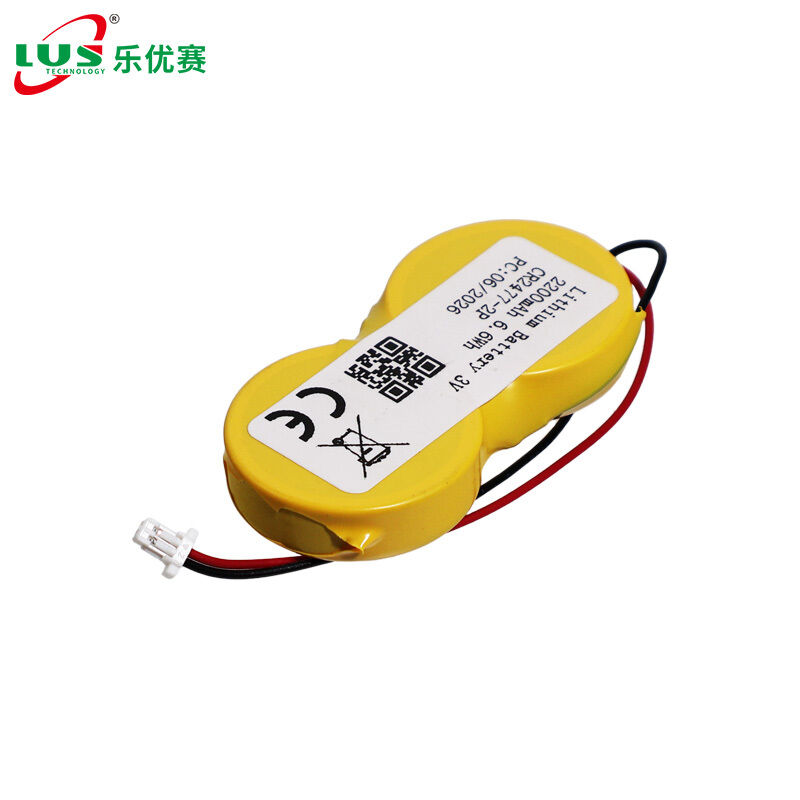

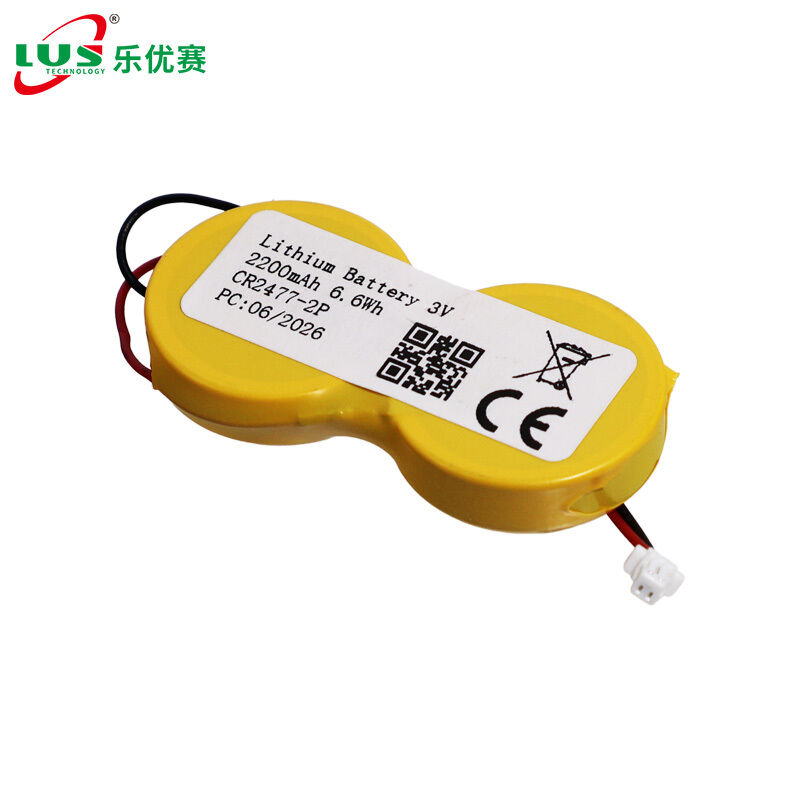

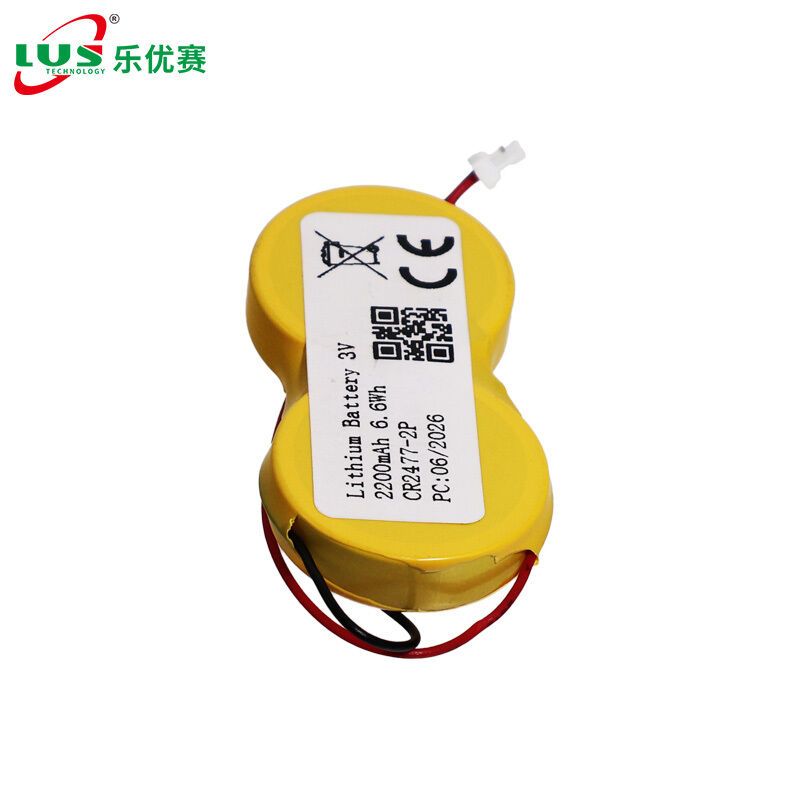

Bulk CR 2477 3V lithium coin cell battery pack CR2477-2P with connector 2200mah 3V battery
3v lithium 2/cr2477 non-rechargeable Lithium battery CR2477-2P industrial battery pack 3V 2Ah non-rechargeable lithium coin cell battery 3 Volt 950 Mah Lithium Battery 3-volt, lithium manganese dioxide LiMnO2 coin cell battery CR2477 3V Lithium Cell Battery CR2477/F2N 3V Lithium Coin Cell Battery CR2477 1000mah 3V battery 1100mah 3.0volt primary battery CR2477
CR-2477/VCN 3-volt lithium battery CR2477 coin battery CR2477/BN Battery CR2477 lithium coin battery CR2477 3V 1000mAh button battery CR2477 3V coin-type Lithium Battery CR 2477 H2B disposable battery 3V 1000mAh Coin Cell Battery w/ 2 PC Pins or wires custom lithium cion button batteries
| ITEM |
UNIT |
SPECIFICATIONS |
CONDITIONS |
| Model number |
CR |
CR2477 or CR2477T |
button cell |
| Nominal voltage |
V |
3.0 |
Standard discharge |
| Nominal capacity |
mAh |
1000 - 1100 singe cell |
Standard discharge |
| Combination |
|
1S2P |
|
| Capacity |
mAh |
2000-2200mah battery pack |
|
| Off-load voltage |
V |
≥3.30 |
|
| Storage temperature |
|
0~35 |
|
| Standard weight |
g |
25 |
1S2P |
| Terminals |
|
wires and connectore |
Can be customized |
CR2477 3V 1100mAh Button Cell battery Replacement 2477 battery BR2477 lithium battery CR2477N coin cell battery CR2477T button battery DL2477 primary battery ECR2477 non recahrgeable battery KCR2477 primary lithium battery LM2477 Industrial lithium battery pacfk in Bulk Tray
How to order:
1. Inquiring
2. Discussion
3. Offer and PI
4. Deposit
5. Final Drawing confirmation.
6. Start production -push production -follow production-finished production.
7. Take a movie or photo of the product and share it with the buyer.
8. Rest Payment
9. Ready to ship out.
10. Send out to carrier/forwarder.
11. Follow the shipping things.
12. After-sales service. ( Life Service support)
CR2477 single cell specification:
| ITEM |
UNIT |
SPECIFICATIONS |
CONDITIONS |
| Nominal voltage |
V |
3.0 |
Standard discharge |
| Nominal capacity |
mAh |
1000 |
Standard discharge |
| Instantaneous short–circuit current |
mA |
≥250 |
Time≤0.5 second |
| Off-load voltage |
V |
≥3.30 |
|
| Storage temperature |
℃ |
0~35 |
|
| Standard weight |
g |
9.5 |
Unit cell |
| Service output |
Initial |
Standard |
500 h |
Continuous discharge with load 1.5kΩ, till 2.0v end-voltage |
| Minimum |
480 h |
| After 12 months storage |
Standard |
475 h |
| Minimum |
470 h |
TABLE Ⅱ:
| ITEM |
CONDITIONS |
CHARACTERISTICS |
| Self-discharge rate |
Stored for 12 months at normal temperature, then continuously discharged with 1.5kΩ load till 2.0v end-voltage |
≤5% |
Coin Cell Battery Application:
Widely used in watches,computers, laptops, music card;
Voice table,hearing aids, electroni cnotepads, dict;
Cameras, medical devices, flashing lights;
Shoes, lamps and other electronic products.
Such as:
Vacuum cleaner, shaver, MP3, MP4, Digital camera, portable computer,
Lighting, electrical toys, electronic game Machine and electrical vehicles,
Cordless Phones, interphones, and all kinds of Cell phones.
Advantage for Button Cell Battery Lithium Limno2:
High capacity and long cycle life
Long service lifespan
Excellent life cycle
Enviromental friendly
High energy density
Excellent overcharge performance
Rapid charge performance
Lower inner resistance and low self-discharge
Safety and reliability
Wide temperature range, specially design battery can used in high and low temperature
Good quality with competitive price and best service
Suggestions And Cautions
1 Install batteries correctly.
2 Ensure the contact points to be clean and conductive.
3 Do not mix different types, different brands batteries to serve together.
4 Do not heat, recharge the batteries.
5 Do not dispose of the batteries in fire.
6 Keep away from the small children, if swallowed promptly see doctor.
7 Pay attention to the producing date.
Coin Cell Lithium Battery List:
| Mode |
Voltage(V) |
Capacity(mAh) |
Dimension(mm) |
Weight(g) |
Chargeable or Non |
| CR2032 |
3 |
220 |
20.0*3.2 |
3 |
Non |
| CR2032 |
3 |
240 |
20.0*3.2 |
3 |
Non |
| CR1220 |
3 |
35 |
12.5*2.0 |
0.8 |
Non |
| CR1225 |
3 |
50 |
12.5*2.5 |
0.9 |
Non |
| CR1616 |
3 |
50 |
16.0*1.6 |
1.1 |
Non |
| CR1620 |
3 |
70 |
16.0*2.0 |
1.3 |
Non |
| CR1632 |
3 |
120 |
16.0*3.2 |
1.8 |
Non |
| CR2016 |
3 |
83 |
20.0*1.6 |
1.7 |
Non |
| CR2025 |
3 |
150 |
20.0*2.5 |
2.5 |
Non |
| CR2450 |
3 |
600 |
24.5*5.0 |
6.2 |
Non |
| CR3032 |
3 |
550 |
30.0*3.2 |
7 |
Non |
| ML1220 |
3 |
17 |
12.5*20 |
0.8 |
Yes |
Rechargeable cion cell Lithium Battery Product:
| Model |
Nominal Voltage (V) |
Nominal Capacity (mAh) |
Max. Discharge Current (mA) |
Resistance (mΩ) |
Diameter (mm) |
Height (mm) |
Weight Approx (g) |
| LIR1025 |
3.6 |
6±2 |
1C |
|
10.0 -0.15 |
2.5 +0.15 |
1.1±0.2 |
| LIR1220 |
3.6 |
8±2 |
1C |
|
12.5 -0.2 |
2.0 +0.35 |
0.8±0.3 |
| LIR1254 |
3.6 |
65±5 |
1C |
≤600 |
12.0 -0.2 |
5.4 +0.2 |
1.8±0.2 |
| LIR1620 |
3.6 |
16±2 |
1C |
≤2000 |
16.0 -0.2 |
2.0 +0.35 |
1.2±0.3 |
| LIR1632 |
3.6 |
25±2 |
1C |
≤2000 |
16.0 -0.2 |
3.2 +0.35 |
1.7±0.3 |
| LIR1654 |
3.6 |
120±5 |
1C |
≤600 |
16.0 -0.2 |
5.4 +0.2 |
2.4±0.2 |
| LIR2016 |
3.6 |
18±2 |
2C |
≤2000 |
20.0 -0.2 |
1.6 +0.35 |
1.7±0.3 |
| LIR2025 |
3.6 |
25±5 |
2C |
≤2000 |
20.0 -0.2 |
2.5 +0.25 |
2.3±0.3 |
| LIR2032 |
3.6 |
40±5 |
2C |
≤600 |
20.0 -0.2 |
3.2 +0.35 |
2.8±0.3 |
| LIR2050 |
3.6 |
80±5 |
2C |
≤600 |
20.0 -0.2 |
5.0 +0.2 |
3.8±0.2 |
| LIR2430 |
3.6 |
60±5 |
2C |
≤500 |
24.5 -0.2 |
3.0 +0.35 |
3.8±0.3 |
| LIR2450 |
3.6 |
120±10 |
2C |
≤450 |
24.5 -0.2 |
5.0 +0.35 |
5.0±0.3 |
| LIR2477 |
3.6 |
180±10 |
2C |
≤400 |
24.5 -0.2 |
7.7 +0.3 |
7.0±0.3 |
