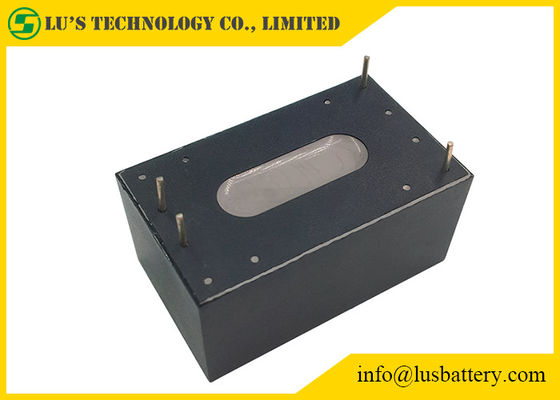

Low Ripple 5w 3.3V 1.5A AC DC Power Supply HLK-5M03

1. Product features

1). Meet UL, CE requirements
2). Ultra-thin, ultra-small
3). All voltage input (AC: 90 ~ 264V)
4). Low ripple and low noise
5). Output overload and short circuit protection
6). High efficiency, high power density
7). The product is designed to meet the requirements of EMC and Safety Test
8). Low power consumption, environmental protection, no-load loss <0.1W
9).100% load aging and testing
10).1 year warranty perio



2. Environment Condition

Item Name Technical Criteria Unit
Operation Temperature -20—+60 ℃
Store Temperature -40—+80 ℃
Relative humidity 5—95 %
Cooling way Cooling by radiation
Atmospheric pressure 80—106 Kpa
Sea level elevation ≤2000 m
Vibration Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes

3.Electrical Characteristic

1. Input characteristics (test at room temperature 20 ℃).

Item Name Technical Criteria Unit
Rated input voltage 100-240 VAc
Input voltage range 90-264 VAc
Maximum input current ≤0.2 A
Input current surge ; ≤10 A
maximum input voltage ≤270 VAc
Enter slow start ≤50 mS
Input Low Voltage Efficiency Vin=110VAc,Output full-load≥69 %
Input High Voltage Efficiency Vin=220VAc,output full-load≥70 %
Long-term reliability MTBF≥100,000 h
Load rated output voltage +5±0.1 VDc
Full rated output voltage +5±0.2 VDc
Short-term maximum output current ≥1000 mA
The maximum output current for a long time ≥600 mA
Voltage Regulation ±0.2 %
Load Regulation ±0.5 %
Output ripple and noise
(mVp-p) ≤50
Rated input voltage, full load. Using 20MHz of bandwidth,
The load side 10uF and 0.1uF capacitor to be tested. mV
Switch overshoot amplitude (Rated input voltage and output load plus 10%)≤5 %VO
Output over-current protection 150-200% of the output maximum load A
Output short circuit protection Direct short circuit at the normal output, automatically resume normal operation after a short circuit removal

Package:
