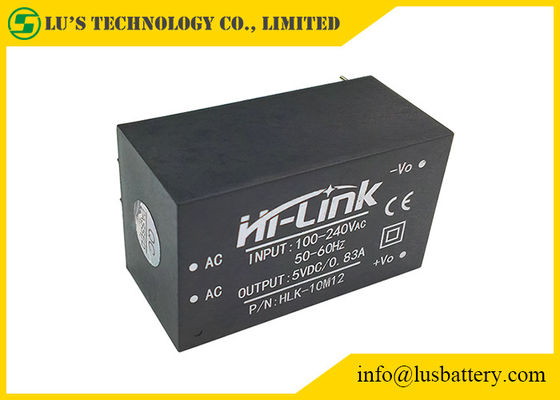

Logic ICs 0.83A 12v 10w AC DC Power Module HLK-10M12

Logic ICs 0.83A 12v 10w AC DC Power Module HLK-10M12
Logic ICs 0.83A 12v 10w AC DC Power Module HLK-10M12 Logic ICs 0.83A 12v 10w AC DC Power Module HLK-10M12 Logic ICs 0.83A 12v 10w AC DC Power Module HLK-10M12

Large Image :  Logic ICs 0.83A 12v 10w AC DC Power Module HLK-10M12

Product Details:
Place of Origin: China
Brand Name: HLK or OEM
Model Number: HLK-10M12
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Bargain
Packaging Details: PP bag+Carton
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 60000pcs/Month

Logic ICs 0.83A 12v 10w AC DC Power Module HLK-10M12

Description
Applications: Power Step Down Efficiency: 70%
Power: 10W Type: Logic ICs
Voltage: 12v Current: 0.83A
Model: HLK-10M12
High Light:

10w AC DC Power Module

,

0.83A AC DC Power Module

,

HLK-10M12

Details:

1. Product features:

1). Meet UL, CE requirements
2). Ultra-thin, ultra-small
3). All voltage input (AC: 90 ~ 264V)
4). Low ripple and low noise
5). Output overload and short circuit protection
6). High efficiency, high power density
7). The product is designed to meet the requirements of EMC and Safety Test
8). Low power consumption, environmental protection, no-load loss <0.1W
9).100% load aging and testing
10).1 year warranty perio

2. Environment Condition

Item Name Technical Criteria Unit
Operation Temperature -20—+60 ℃
Store Temperature -40—+80 ℃
Relative humidity 5—95 %
Cooling way Cooling by radiation
Atmospheric pressure 80—106 Kpa
Sea level elevation ≤2000 m
Vibration Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes

3.Electrical Characteristic

1. Input characteristics (test at room temperature 20 ℃).

Logic ICs 0.83A 12v 10w AC DC Power Module HLK-10M12 0



tems Technical Parameters Units Notes
No-load rated output voltage 12±0.1 Vdc
Full-load tated output voltage 12±0.2 Vdc
Short time maximum output current ≥900 mA
Long time maximum output current ≥830 mA
Voltage regulation ±2 %
Load regulation ±0.5 %
Output ripple and noise (mVp-p) ≤70 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test mV
Switching on/off overshoot amplitude (Rated input voltage, output plus 10% load)≤5 %Vo
Output over-current protection 110-150% of maximum output load A
Output short circuit protection Direct short circuit in normal output and automatic return to nomal operation after removal of short circuit   No-damage to the whole device



4.Safety Characteristics:

4.1 Products designed to meet UL, CE safety certification requirements.
4.2 Safety and electromagnetic compatibility
Designed with the input of 0.5A UL certified insurance;
PCB board using double-sided copper clad plate production, material for the 94-V0 fire rating level;
Safety standards: Compliance with UL1012, EN60950, UL60950
Insulation voltage: I / P-O / P: 2500VAC
Insulation resistance :I / PO / P> 100M Ohms / 500VDC 25 ℃ 70% RH
Conduction and radiation :comply with EN55011, EN55022 (CISPR22)
Electrostatic discharge :IEC / EN 61000-4-2 level 4 8kV / 15kV
RF radiation Immunity: IEC / EN 61000-4-3 See Application Note
4.3 Temperature safety design
At room temperature,the capacitors of this power , the inner surface of the main converter maximum temperature does not exceed 90
℃;
Shell maximum surface temperature does not exceed 60 ℃


5. Logo, packaging, transportation, storage

5.1 Logo
5.1.1 Product logo
In place of products labeled with signs, its content in line with national standards, industry standards.
5.1.2 Packaging logo
Products marked with the manufacturer's name, address, zip code, product type, manufactured year, month, day on the box ;
Marked "up", "moisture" "Handle with care" and other transportation signs, all signs are in line with the provisions of GB 191.
5.2 Packaging
Products are separated using special plastic box packaging, with anti-vibration function, and in accordance with the provisions of
GB 3873.
5.3 Transport
packaged products can be shipped by any transportation service, there should be awnings in transport and no excessive vibration,
impact, etc.
5.4 Storage
Products should be stored in compliance with GB 3873.

Technique

Logic ICs 0.83A 12v 10w AC DC Power Module HLK-10M12 1

12V 10W isolated intelligent household switch step down hlk10m12 mini power supply module for smart device:

Logic ICs 0.83A 12v 10w AC DC Power Module HLK-10M12 2
