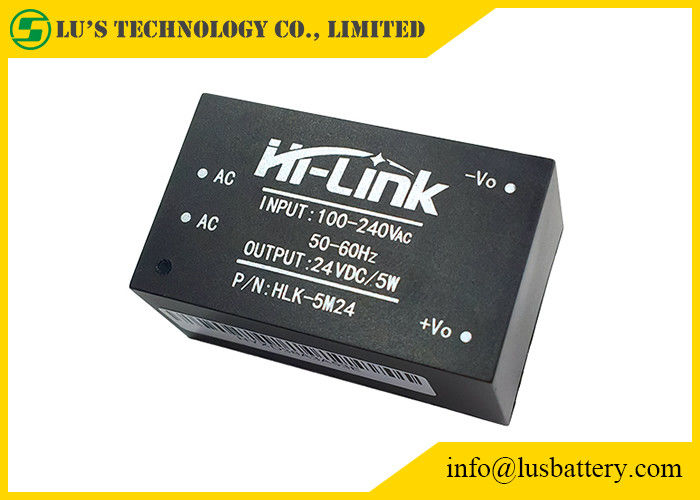

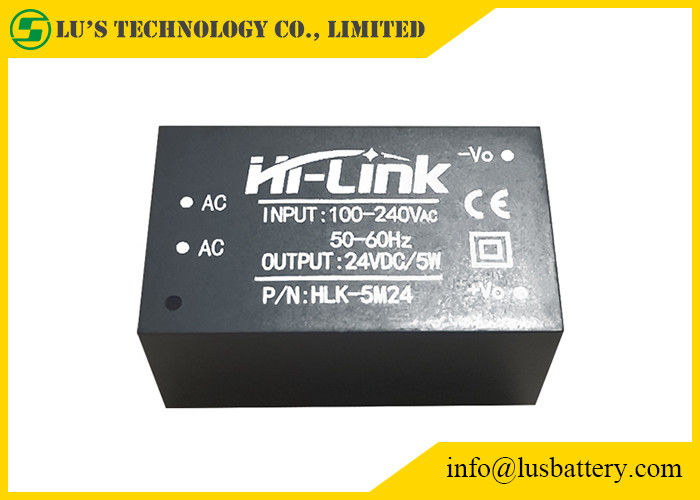

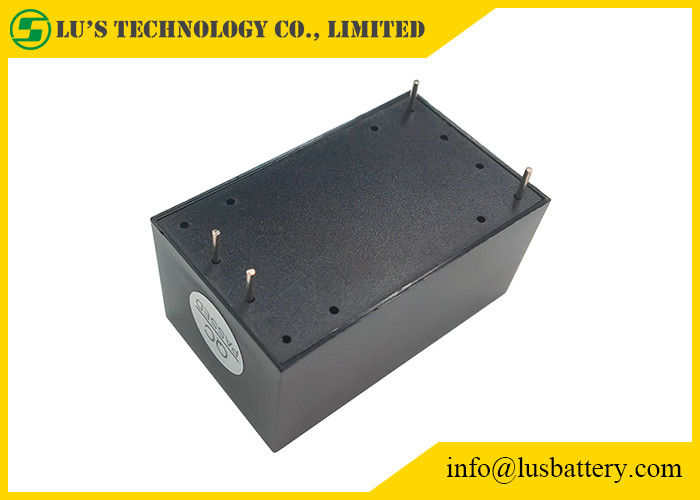

Hilink 24VDC 5W Ac To Dc 24v 10a Power Supply Module 72% TYP

Hilink 24VDC 5W Ac To Dc 24v 10a Power Supply Module 72% TYP
Hilink 24VDC 5W Ac To Dc 24v 10a Power Supply Module 72% TYP Hilink 24VDC 5W Ac To Dc 24v 10a Power Supply Module 72% TYP Hilink 24VDC 5W Ac To Dc 24v 10a Power Supply Module 72% TYP

Large Image :  Hilink 24VDC 5W Ac To Dc 24v 10a Power Supply Module 72% TYP

Product Details:
Place of Origin: China
Brand Name: HLK or OEM
Model Number: 5M24
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Bargain
Packaging Details: PP bag+ Cartons
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T
Supply Ability: 100000 pcs per month

Hilink 24VDC 5W Ac To Dc 24v 10a Power Supply Module 72% TYP

Name: Ultra Small Power Supply AC/DC Output: 24VDC / 5W
Input: 90-264vac Output Voltage: 24V
Output Power: 1 - 50W Dimension: 38*23*18mm
High Light:

24VDC 5W Power Supply Module


24v 10a Power Supply Module


72% TYP AC DC Power Module

Product Description

The 5W ultra-small series module power supply is a small-volume, high-efficiency AC DC power odule supply.


It has the advantages of global input voltage range, low temperature rise, low power consumption,high efficiency, high reliability and high safety isolation.

It has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.
Product list
Model NO. Size (mm) Weight (g) Output Power (w) Output Voltage (v) Output Current (mA) Efficiency %(TYP)
HLK-2M03 30*16*19 18g 2W 3.3 600 69
HLK-2M05 5 400
HLK-2M09 9 230
HLK-2M12 12 170
HLK-2M24 24 84
HLK-PM01 34*20*15 20g 3W 5 600 72
HLK-PM03 3.3 1000
HLK-PM09 9 330
HLK-PM12 12 250
HLK-PM24 24 125
HLK-5M03 38*23*18 32g 5W 3.3 1500 72
HLK-5M05 5 1000
HLK-5M09 9 560
HLK-5M12 12 450
HLK-5M24 24 208
HLK-10M03 47*28*22 40g 10W 3.3 3000 72
HLK-10M05 5 2000
HLK-10M09 9 1100 78
HLK-10M12 12 830
HLK-10M24 24 416
HLK-12M12 50.8*25.4*15 80g 12W 12 1000 86
HLK-20M05 57*33*22.5 80g 20W 5 4000 80
HLK-20M09 9 2200
HLK-20M12 12 1666
HLK-20M15 15 1300
HLK-20M24 24 833 84
HLK-30M05 56*32*22.5 80g 30W 5 6000 89
HLK-30M09 9 3300 90
HLK-30M12 12 2500
HLK-30M15 15 2000
HLK-30M24 24 1250
HLK-40M05 56*32*22.5 80g 40W 5 8000 89
HLK-40M09 9 4400 90
HLK-40M12 12 3300
HLK-40M15 15 2600
HLK-40M24 24 1600



Hilink 24VDC 5W Ac To Dc 24v 10a Power Supply Module 72% TYP 0


Output features
Items Technical Parameters Units Notes
No-load rated output voltage 24.0±0.1 Vdc
Full-load tated output voltage 24.0±0.2 Vdc
Short time maximum output current ≥308 mA
Long time maximum output current 208 mA
Voltage regulation ±0.2 %
Load regulation ±0.5 %
Input low voltage efficiency Vin=115Vac, Output full load≥69 %
Input high voltage efficiency 3Vin=230Vac, Output full load≥70 %
Output ripple and noise (mVp-p) ≤70 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test mV
Switching on/off overshoot amplitude (Rated input voltage, output plus 10% load)≤5 %Vo
Output over-current protection Output maximum load 110-150% A
Output short circuit protection Direct short circuit in normal output and automatic return to nomal operation after removal of short circuit   No-damage to the whole device


wifi switch for street light

Type Description Inputvoltage Efficiency
HLK-2M03 Powermodule2W3.3V 90-245Vac 69%
HLK-2M05 Powermodule2W5V 90-245Vac 69%
HLK-2M09 Powermodule2W9V 90-245Vac 69%
HLK-2M12 Powermodule2W12V 90-245Vac 69%
HLK-2M15 Powermodule2W15V 90-245Vac 69%
HLK-2M24 Powermodule2W24V 90-245Vac 69%
HLK-PM01 Powermodule3W5V 90-265Vac 72%
HLK-PM03 Powermodule3W3.3V 90-265Vac 72%
HLK-PM09 Powermodule3W9V 90-265Vac 75%
HLK-PM12 Powermodule3W12V 90-265Vac 75%
HLK-PM15 Powermodule3W15V 90-265Vac 75%
HLK-PM24 Powermodule3W24V 90-265Vac 75%
HLK-5M03 Powermodule5W3.3V 90-265Vac 72%
HLK-5M05 Powermodule5W5V 90-265Vac 72%
HLK5M09 Powermodule5W9V 90-265Vac 75%
HLK-5M12 Powermodule5W12V 90-265Vac 75%
HLK-5M15 Powermodule5W15V 90-265Vac 75%
HLK-5M24 Powermodule5W24V 90-265Vac 75%
HLK-10M03 Powermodule10W3.3V 90-265Vac 72%
HLK-10M05 Powermodule10W5V 90-265Vac 72%
HLK-10M09 Powermodule10W9V 90-265Vac 78%
HLK-10M12 Powermodule10W12V 90-265Vac 78%
HLK-10M15 Powermodule10W15V 90-265Vac 78%
HLK-10M24 Powermodule10W24V 90-265Vac 78%
HLK-20M05 Powermodule20W5V 90-265Vac 80%
HLK-20M09 Powermodule20W9V 90-265Vac 80%
HLK-20M12 Powermodule20W12V 90-265Vac 80%
HLK-20M15 Powermodule20W15V 90-265Vac 80%
HLK-20M24 Powermodule20W24V 90-265Vac 84%
HLK-30M09 Powermodule30W9V 90-265Vac 90%
HLK-30M12 Powermodule30W12V 90-265Vac 90%
HLK-30M15 Powermodule30W15V 90-265Vac 90%
HLK-30M24 Powermodule30W24V 90-265Vac 90%
HLK-40M09 Powermodule40W9V 90-265Vac 90%
HLK-40M12 Powermodule40W12V 90-265Vac 90%
HLK-40M15 Powermodule40W15V 90-265Vac 90%
HLK-40M24 Powermodule40W24V 90-265Vac 90%


Safety Characteristics:


Products designed to meet UL, CE safety certification requirements.

Safety and electromagnetic compatibility
Designed with the input of 0.5A UL certified insurance;
PCB board using double-sided copper clad plate production, material for the 94-V0 fire rating level;
Safety standards: Compliance with UL1012, EN60950, UL60950
Insulation voltage: I / P-O / P: 2500VAC
Insulation resistance :I / PO / P> 100M Ohms / 500VDC 25 ℃ 70% RH
Conduction and radiation :comply with EN55011, EN55022 (CISPR22)
Electrostatic discharge :IEC / EN 61000-4-2 level 4 8kV / 15kV
RF radiation Immunity: IEC / EN 61000-4-3 See Application Note

Temperature safety design
At room temperature,the capacitors of this power , the inner surface of the main converter maximum temperature does not exceed 90
Shell maximum surface temperature does not exceed 60 ℃
