Place of Origin:
China
Brand Name:
HLK or OEM
Model Number:
hilink10M05

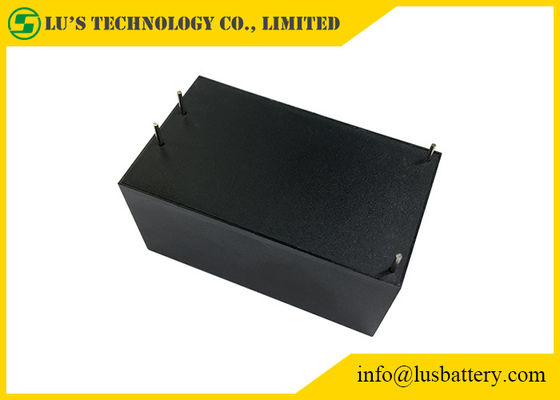

Ultra-Compact Power Module
| Type | Description | Inputvoltage | Efficiency |
| HLK-2M03 | Powermodule2W3.3V | 90-245Vac | 69% |
| HLK-2M05 | Powermodule2W5V | 90-245Vac | 69% |
| HLK-2M09 | Powermodule2W9V | 90-245Vac | 69% |
| HLK-2M12 | Powermodule2W12V | 90-245Vac | 69% |
| HLK-2M15 | Powermodule2W15V | 90-245Vac | 69% |
| HLK-2M24 | Powermodule2W24V | 90-245Vac | 69% |
| HLK-PM01 | Powermodule3W5V | 90-265Vac | 72% |
| HLK-PM03 | Powermodule3W3.3V | 90-265Vac | 72% |
| HLK-PM09 | Powermodule3W9V | 90-265Vac | 75% |
| HLK-PM12 | Powermodule3W12V | 90-265Vac | 75% |
| HLK-PM15 | Powermodule3W15V | 90-265Vac | 75% |
| HLK-PM24 | Powermodule3W24V | 90-265Vac | 75% |
| HLK-5M03 | Powermodule5W3.3V | 90-265Vac | 72% |
| HLK-5M05 | Powermodule5W5V | 90-265Vac | 72% |
| HLK5M09 | Powermodule5W9V | 90-265Vac | 75% |
| HLK-5M12 | Powermodule5W12V | 90-265Vac | 75% |
| HLK-5M15 | Powermodule5W15V | 90-265Vac | 75% |
| HLK-5M24 | Powermodule5W24V | 90-265Vac | 75% |
| HLK-10M03 | Powermodule10W3.3V | 90-265Vac | 72% |
| HLK-10M05 | Powermodule10W5V | 90-265Vac | 72% |
| HLK-10M09 | Powermodule10W9V | 90-265Vac | 78% |
| HLK-10M12 | Powermodule10W12V | 90-265Vac | 78% |
| HLK-10M15 | Powermodule10W15V | 90-265Vac | 78% |
| HLK-10M24 | Powermodule10W24V | 90-265Vac | 78% |
| HLK-20M05 | Powermodule20W5V | 90-265Vac | 80% |
| HLK-20M09 | Powermodule20W9V | 90-265Vac | 80% |
| HLK-20M12 | Powermodule20W12V | 90-265Vac | 80% |
| HLK-20M15 | Powermodule20W15V | 90-265Vac | 80% |
| HLK-20M24 | Powermodule20W24V | 90-265Vac | 84% |
| HLK-30M09 | Powermodule30W9V | 90-265Vac | 90% |
| HLK-30M12 | Powermodule30W12V | 90-265Vac | 90% |
| HLK-30M15 | Powermodule30W15V | 90-265Vac | 90% |
| HLK-30M24 | Powermodule30W24V | 90-265Vac | 90% |
| HLK-40M09 | Powermodule40W9V | 90-265Vac | 90% |
| HLK-40M12 | Powermodule40W12V | 90-265Vac | 90% |
| HLK-40M15 | Powermodule40W15V | 90-265Vac | 90% |
| HLK-40M24 | Powermodule40W24V | 90-265Vac | 90% |
Product Description
| Items | Technical Parameters | Units | Notes |
| No-load rated output voltage | 5.0±0.1 | Vdc | |
| Full-load tated output voltage | 5.0±0.2 | Vdc | |
| Short time maximum output current | ≥2200 | mA | |
| Long time maximum output current | ≥2000 | mA | |
| Voltage regulation | ±0.2 | % | |
| Load regulation | ±0.5 | % | |
| Output ripple and noise (mVp-p) | ≤50 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test | mV | |
| Switching on/off overshoot amplitude | (Rated input voltage, output plus 10% load)≤5 | %Vo | |
| Output over-current protection | 110-150% of maximum output load | A | |
| Output short circuit protection | Direct short circuit in normal output and automatic return to nomal operation after removal of short circuit | No-damage to the whole device |
