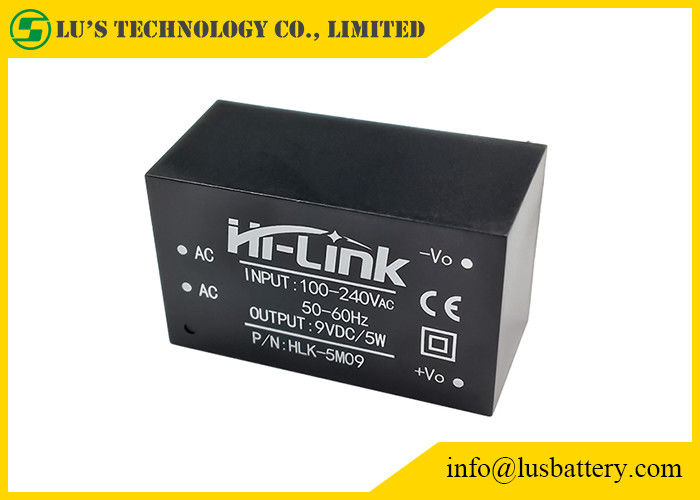

220V to 3.3V 5V 9V 12V 24V 5W output AC DC switch power supply 5M09 with Customized Logo
Ultra small series power module list:
Model NO. | Size (mm) | Weight (g) | Output Power (w) | Output Voltage (v) | Output Current (mA) | Efficiency %(TYP) |
HLK-2M03 | 30*16*19 | 18g | 2W | 3.3 | 600 | 69 |
HLK-2M05 | 5 | 400 | ||||
HLK-2M09 | 9 | 230 | ||||
HLK-2M12 | 12 | 170 | ||||
HLK-2M24 | 24 | 84 | ||||
HLK-PM01 | 34*20*15 | 20g | 3W | 5 | 600 | 72 |
HLK-PM03 | 3.3 | 1000 | ||||
HLK-PM09 | 9 | 330 | ||||
HLK-PM12 | 12 | 250 | ||||
HLK-PM24 | 24 | 125 | ||||
HLK-5M03 | 38*23*18 | 32g | 5W | 3.3 | 1500 | 72 |
HLK-5M05 | 5 | 1000 | ||||
HLK-5M09 | 9 | 560 | ||||
HLK-5M12 | 12 | 450 | ||||
HLK-5M24 | 24 | 208 | ||||
HLK-10M03 | 47*28*22 | 40g | 10W | 3.3 | 3000 | 72 |
HLK-10M05 | 5 | 2000 | ||||
HLK-10M09 | 9 | 1100 | 78 | |||
HLK-10M12 | 12 | 830 | ||||
HLK-10M24 | 24 | 416 | ||||
HLK-12M12 | 50.8*25.4*15 | 80g | 12W | 12 | 1000 | 86 |
HLK-20M05 | 57*33*22.5 | 80g | 20W | 5 | 4000 | 80 |
HLK-20M09 | 9 | 2200 | ||||
HLK-20M12 | 12 | 1666 | ||||
HLK-20M15 | 15 | 1300 | ||||
HLK-20M24 | 24 | 833 | 84 | |||
HLK-30M05 | 56*32*22.5 | 80g | 30W | 5 | 6000 | 89 |
HLK-30M09 | 9 | 3300 | 90 | |||
HLK-30M12 | 12 | 2500 | ||||
HLK-30M15 | 15 | 2000 | ||||
HLK-30M24 | 24 | 1250 | ||||
HLK-40M05 | 56*32*22.5 | 80g | 40W | 5 | 8000 | 89 |
HLK-40M09 | 9 | 4400 | 90 | |||
HLK-40M12 | 12 | 3300 | ||||
HLK-40M15 | 15 | 2600 | ||||
HLK-40M24 | 24 | 1600 |
5W Ultra small series power module 5M03/5M05/5M09/5M12/5M24
The 5W ultra-small series module power supply is a small-volume, high-efficiency AC DC power odule supply.
It has the advantages of global input voltage range, low temperature rise, low power consumption,high efficiency, high reliability and high safety isolation.
It has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.
Product features
1. Ultra-thin, ultra-small, smallest volume;
2. Global universal input voltage(90~265Vac)
3. Low power consumption, green environmental protection, no-load loss<0.1W
4. Low ripple, low noise
5. High output short circuit and over-current protection and self recovery
6. High efficiency, high power density
7. Input and output isolation voltage 3000Vac
8. 100% full load aging and testing
9. High reliability, long life design, continuous working time is greater than 100,000 hours;
10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;
11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and
dust to meet IP65 standards
12. Economic solutions, cost-effective
13. Work without external circuit
14. 1 year quality guarantee period
Items | Technical Parameters | Units | Notes |
No-load rated output voltage | 9.0±0.1 | Vdc | |
Full-load tated output voltage | 9.0±0.2 | Vdc | |
Short time maximum output current | ≥680 | mA | |
Long time maximum output current | 560 | mA | |
Voltage regulation | ±0.2 | % | |
Load regulation | ±0.5 | % | |
Input low voltage efficiency | Vin=115Vac, Output full load≥69 | % | |
Input high voltage efficiency | 3Vin=230Vac, Output full load≥70 | % | |
Output ripple and noise (mVp-p) | ≤70 Rated input voltage,output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test | mV | |
Switching on/off overshoot amplitude | (Rated input voltage, output plus 10% load)≤5 | %Vo | |
Output over-current protection | Output maximum load 110-150% | A | |
Output short circuit protection | Direct short circuit in normal output and automatic return to nomal operation after removal of short circuit | No-damage to the whole device |
