Place of Origin:
China
Brand Name:
OEM
Certification:
UL/CE
Model Number:
CR2477-3P
Video
Video

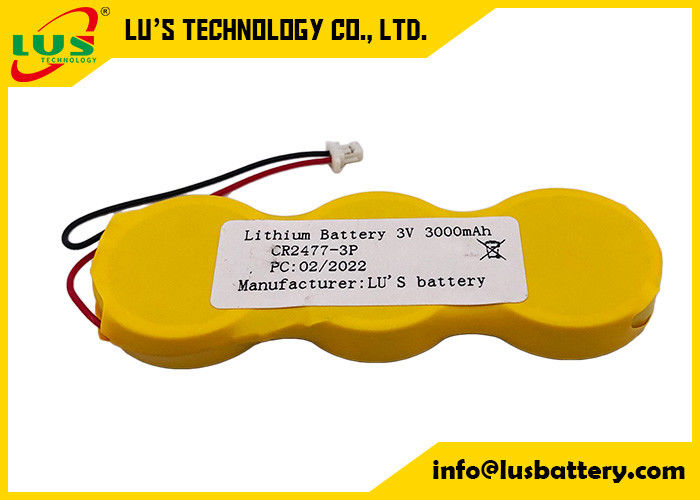

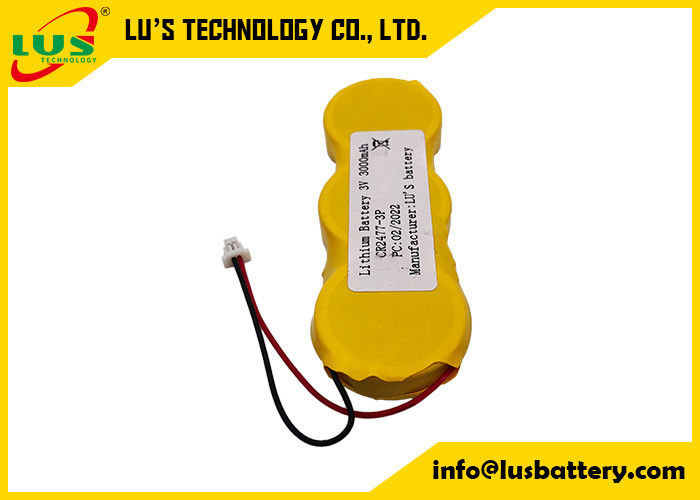

batterie CR2477-3P Coin lithium battery 3.0 volt 3000mah battery pack with Customized terminals
high-performing lithium coin batteries CR2477 are energy-dense and can deliver 30% more power for your miniature specialty devices, including car keys, remote controls, smart watches, blood glucose monitors, smart home devices, IoT devices, door and window sensors.
With remarkable power-preserving properties and a shelf-life of up to 10 years when properly stored in a cool and dry place, you will never be caught with flat batteries.
Made to perform even under extreme conditions, it operates reliably from -20°C to +60°C.
Safety comes first – these batteries are not only designed to protect your gadgets with leak-proof construction, but also to protect your loved ones with thoughtfully designed child-proof packaging.
Specification for CR2477 Lithium Button Battery 3.0V:
TABLE Ⅰ:
| ITEM | UNIT | SPECIFICATIONS | CONDITIONS | |
| Nominal voltage | V | 3.0 | Standard discharge | |
| Nominal capacity | mAh | 1000 | Standard discharge | |
| Instantaneous short–circuit current | mA | ≥250 | Time≤0.5 second | |
| Off-load voltage | V | ≥3.30 | ||
| Storage temperature | ℃ | 0~35 | ||
| Standard weight | g | 9.5 | Unit cell | |
| Service output | Initial | Standard | 500 h | Continuous discharge with load 1.5kΩ, till 2.0v end-voltage |
| Minimum | 480 h | |||
| After 12 months storage | Standard | 475 h | ||
| Minimum | 470 h | |||
TABLE Ⅱ:
| ITEM | CONDITIONS | CHARACTERISTICS |
| Self-discharge rate | Stored for 12 months at normal temperature, then continuously discharged with 1.5kΩ load till 2.0v end-voltage | ≤5% |
3PCR2477 Data:
| Type | Primary lithium battery |
| Model | 3Pcr2477 |
| Voltage | 3V |
| Capacity | 3000mah |
| Terminals | 51021 or SHR-2p, or customized |
| Application | Toys, Tags, RFID etc |
| LOGO | Welcome customized |
| Shipping | express, air, sea |
| OEM | Welcome |
| Payment | T/T or depends on the quantity |
Coin Cell Battery Application:
Widely used in watches,computers, laptops, music card;
Voice table,hearing aids, electroni cnotepads, dict;
Cameras, medical devices, flashing lights;
Shoes, lamps and other electronic products.
Such as:
Vacuum cleaner, shaver, MP3, MP4, Digital camera, portable computer,
Lighting, electrical toys, electronic game Machine and electrical vehicles,
Cordless Phones, interphones, and all kinds of Cell phones.
Advantage for Button Cell Battery Lithium Limno2:
High capacity and long cycle life
Long service lifespan
Excellent life cycle
Enviromental friendly
High energy density
Excellent overcharge performance
Rapid charge performance
Lower inner resistance and low self-discharge
Safety and reliability
Wide temperature range, specially design battery can used in high and low temperature
Good quality with competitive price and best service
Suggestions And Cautions
1 Install batteries correctly.
2 Ensure the contact points to be clean and conductive.
3 Do not mix different types, different brands batteries to serve together.
4 Do not heat, recharge the batteries.
5 Do not dispose of the batteries in fire.
6 Keep away from the small children, if swallowed promptly see doctor.
7 Pay attention to the producing date.
Coin Cell Lithium Battery List:
| Mode | Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*20 | 0.8 | Yes |
