Product Details:
|
| Voltage: | 3.0V | Package: | Blistcard |
|---|---|---|---|
| Color: | Yellow Or Blue Or Customized Logo | Name: | Limno2 Button Cell |
| SIZE: | 2016 | Part Number: | CR2016 |
| High Light: | CR2016 Lithium Button Cell,3V Lithium Coin Cell 5 Pcs |
||

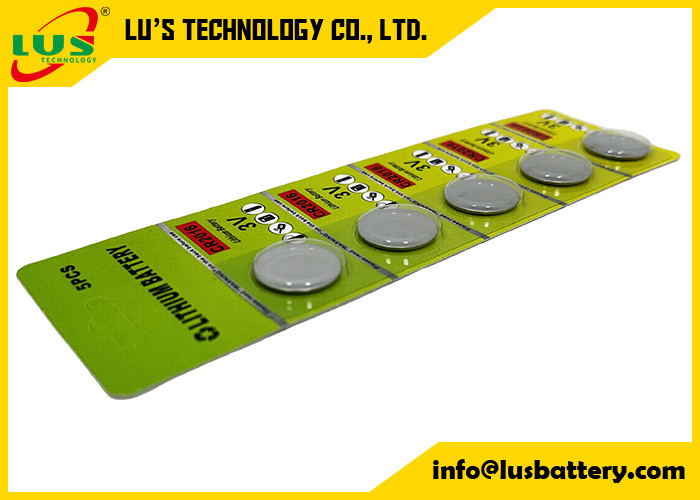

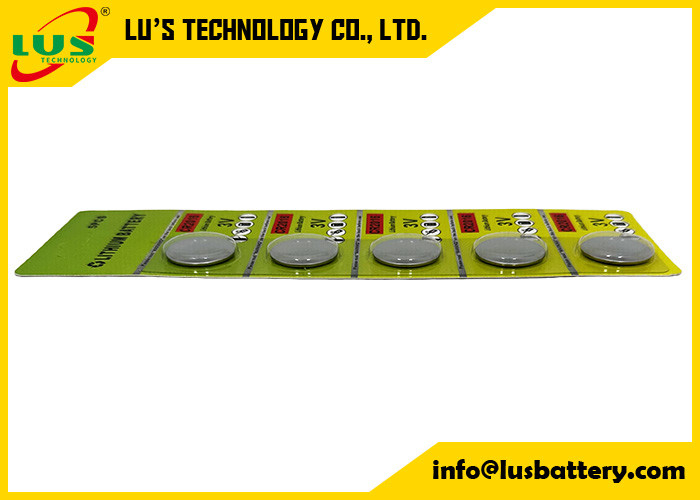

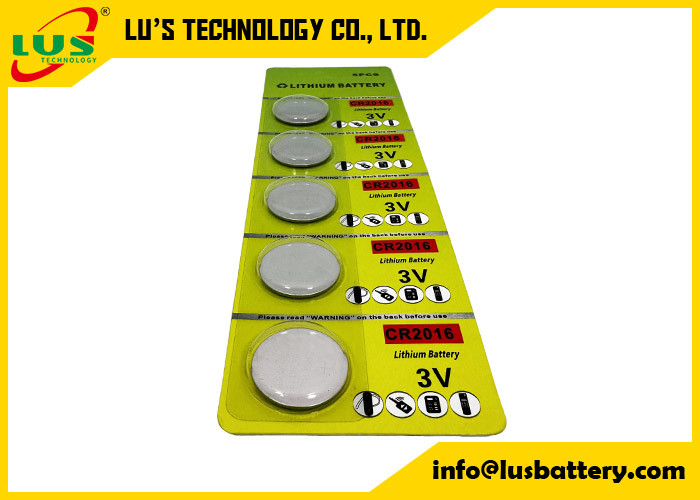

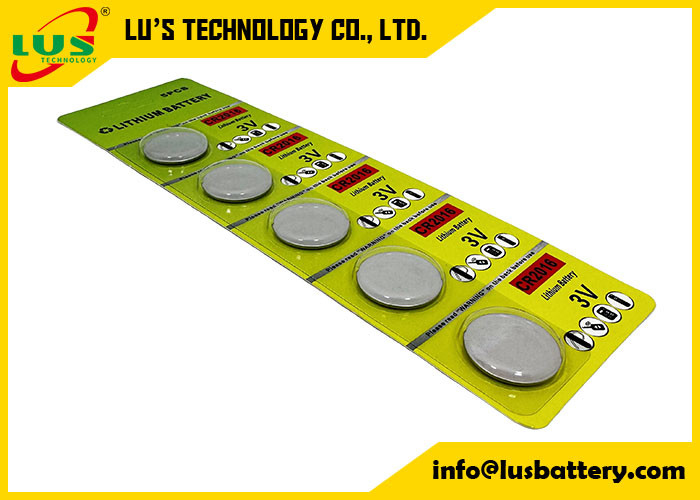

Lithium Button Cell CR2016 supplies 3V Lithium Coin Cell Battery CR2016 5 pcs blistcard pack
3V Lithium Coin Cell Battery CR2016 Long Lasting & Reliable - Ideal for Watches, Calculators, Toys & More in the Coin shape
CR2016 3 Volt battery with Blistcard and OEM logo
| Item | Unit | Secification | Conditions |
| Voltage | V | 3.0 | Standard discharge |
| Capacity | Mah | 75 | Standard discharge |
| Dimension | mm | 20.0*1.6 | |
| Off-load voltage | V | ≥3.25 | |
| Storage temperature | ℃ | -10~50 | |
| Standard weight | g | 1.7 | Unit cell |
| Self-discharge rate |
≤5% | Stored for 12 months at normal temperature, then continuously discharged with 15 load till 2.0v end-voltage |
| ITEM | CONDITIONS | CHARACTERISTICS |
| Self-discharge rate | Stored for 12 months at normal temperature, then continuously discharged with 15kΩ load till 2.0v end-voltage | ≤5% |
Suggestions And Cautions
1 Install batteries correctly.
2 Ensure the contact points to be clean and conductive.
3 Do not mix different types, different brands batteries to serve together.
4 Do not heat, recharge the batteries.
5 Do not dispose of the batteries in fire.
6 Keep away from the small children, if swallowed promptly see doctor.
7 Pay attention to the producing date.
Coin Cell Battery Application:
Widely used in watches,computers, laptops, music card;
Voice table,hearing aids, electroni cnotepads, dict;
Cameras, medical devices, flashing lights;
Shoes, lamps and other electronic products.
Such as:
Vacuum cleaner, shaver, MP3, MP4, Digital camera, portable computer,
Lighting, electrical toys, electronic game Machine and electrical vehicles,
Cordless Phones, interphones, and all kinds of Cell phones.
Advantage for Button Cell Battery Lithium Limno2:
High capacity and long cycle life
Long service lifespan
Excellent life cycle
Enviromental friendly
High energy density
Excellent overcharge performance
Rapid charge performance
Lower inner resistance and low self-discharge
Safety and reliability
Wide temperature range, specially design battery can used in high and low temperature
Good quality with competitive price and best service
3.0v Button cell:
| Mode | Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*2.0 | 0.8 | Yes |
Welcome any customized by pins, wires or connector:
