Place of Origin:
China
Brand Name:
OEM
Certification:
UL
Model Number:
3VDC battery 3000mah CR2477

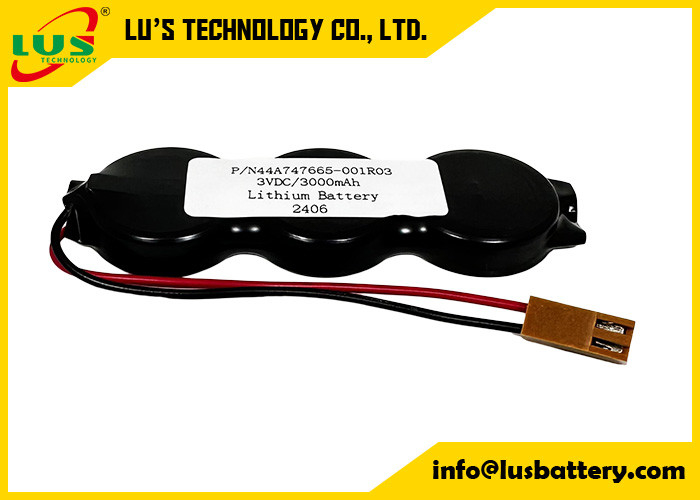

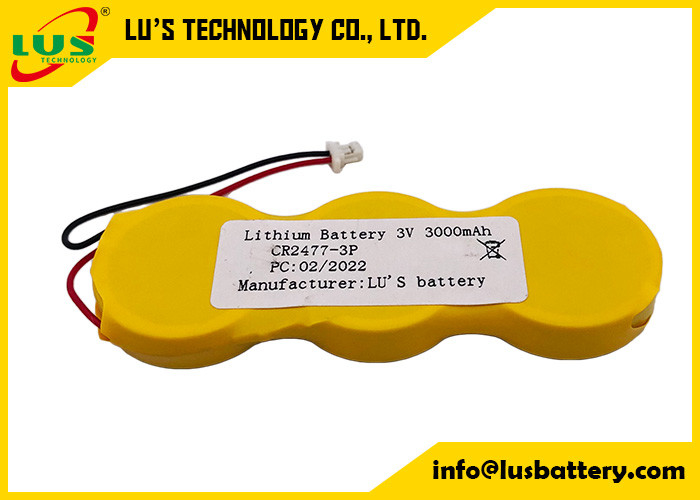

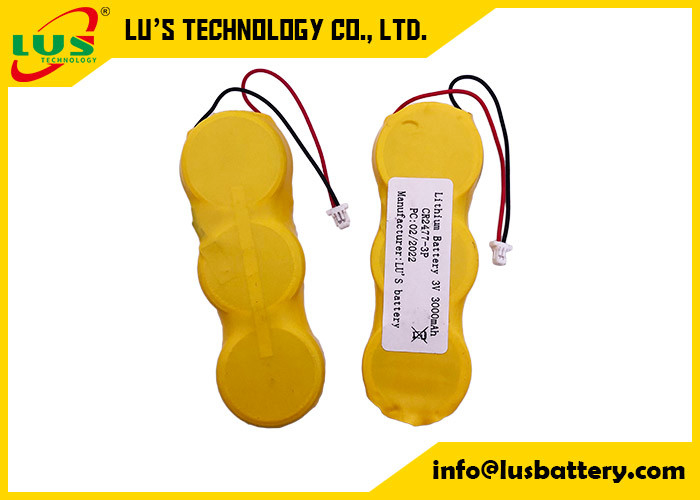

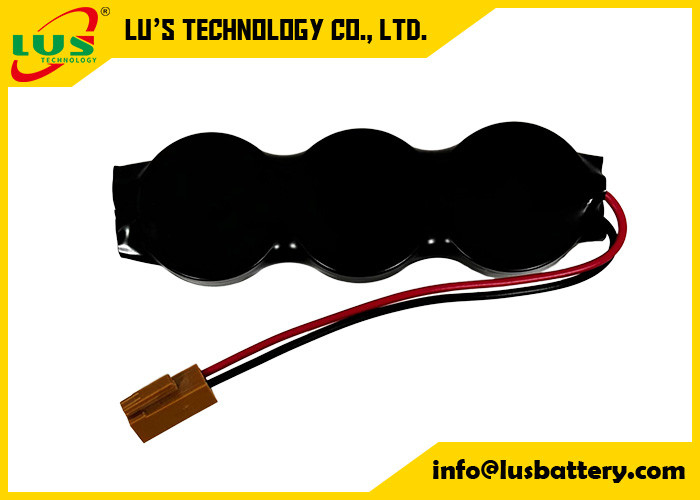

Lithium battery 3VDC 3000mah CR2477 cion cell battery pack for ESL device
Lithium primary battery 3v battery CR2477-3P button battery 3000mah 3Volt cion cell battery pack 3300mah disposable battery with size CR2477 battery pack OEM
CR2477 3V BATTERY
- 3V non rechargeable Battery
- Compatible with: DL2477, ECR2477, GPCR2477
Voltage 3.0 volt battery
Capacity single cell 1100mah , 3P battery pack 3000mah or 3300mah
Combination CR2477 3P1S lithium battery
Label welcome customizations
Connector for ESL device standard is 51021 or SHR, any terminals depends on your using
We are welcome any customizations for your application
Contact us for more battery information
| ITEM | UNIT | SPECIFICATIONS | CONDITIONS | |
| Nominal voltage | V | 3.0 | ||
| Nominal capacity | mAh | 1100 | Standard discharge with load 4.7kΩ | |
| Instantaneous short–circuit current | mA | ≥250 | Time≤0.5 second | |
| Off-load voltage | V | ≥3.20 | ||
| Operating temperature | ℃ | -20~60 | ||
| Standard weight | g | 10.2 | Unit cell | |
| Service output | Initial | Standard | 1900 h | Continuous discharge with load 4.7kΩ, till 2.0v end-voltage at 20~25℃ |
Specification for Button Battery 3.0V 3PCR2477 Cion cell battery pack OEM Data:
| Type | Primary lithium battery |
| Model | 3Pcr2477 |
| Voltage | 3V |
| Capacity | 3000mah |
| Terminals | 51021 or SHR-2p, or customized |
| Application | Toys, Tags, RFID etc |
| LOGO | Welcome customized |
| Shipping | express, air, sea |
| OEM | Welcome |
| Payment | T/T or depends on the quantity |
Coin Cell Battery Application:
Widely used in watches,computers, laptops, music card;
Voice table,hearing aids, electroni cnotepads, dict;
Cameras, medical devices, flashing lights;
Shoes, lamps and other electronic products.
Such as:
Vacuum cleaner, shaver, MP3, MP4, Digital camera, portable computer,
Lighting, electrical toys, electronic game Machine and electrical vehicles,
Cordless Phones, interphones, and all kinds of Cell phones.
Advantage for Button Cell Battery 3v:
High capacity and long cycle life
Long service lifespan
Excellent life cycle
Enviromental friendly
High energy density
Excellent overcharge performance
Rapid charge performance
Lower inner resistance and low self-discharge
Safety and reliability
Wide temperature range, specially design battery can used in high and low temperature
Good quality with competitive price and best service
Suggestions And Cautions
1 Install batteries correctly.
2 Ensure the contact points to be clean and conductive.
3 Do not mix different types, different brands batteries to serve together.
4 Do not heat, recharge the batteries.
5 Do not dispose of the batteries in fire.
6 Keep away from the small children, if swallowed promptly see doctor.
7 Pay attention to the producing date.
Coin Cell Lithium Battery List:
| Mode | Voltage(V) | Capacity(mAh) | Dimension(mm) | Weight(g) | Chargeable or Non |
| CR2032 | 3 | 220 | 20.0*3.2 | 3 | Non |
| CR2032 | 3 | 240 | 20.0*3.2 | 3 | Non |
| CR1220 | 3 | 35 | 12.5*2.0 | 0.8 | Non |
| CR1225 | 3 | 50 | 12.5*2.5 | 0.9 | Non |
| CR1616 | 3 | 50 | 16.0*1.6 | 1.1 | Non |
| CR1620 | 3 | 70 | 16.0*2.0 | 1.3 | Non |
| CR1632 | 3 | 120 | 16.0*3.2 | 1.8 | Non |
| CR2016 | 3 | 83 | 20.0*1.6 | 1.7 | Non |
| CR2025 | 3 | 150 | 20.0*2.5 | 2.5 | Non |
| CR2450 | 3 | 600 | 24.5*5.0 | 6.2 | Non |
| CR3032 | 3 | 550 | 30.0*3.2 | 7 | Non |
| ML1220 | 3 | 17 | 12.5*20 | 0.8 | Yes |
Warning
Coin batteries must be kept out of reach of children. Consult a doctor immediately if swallowed.
This CR2477 button battery from LUS features a nominal voltage of 3 V with a 1000 mAh capacity. This lithium manganese dioxide button battery has a 24.5 mm diameter and a height of 7.7 mm. The PCB pin terminals of the CR2477 button battery allow you to install it into a circuit board. This battery requires horizontal orientation when installed.
