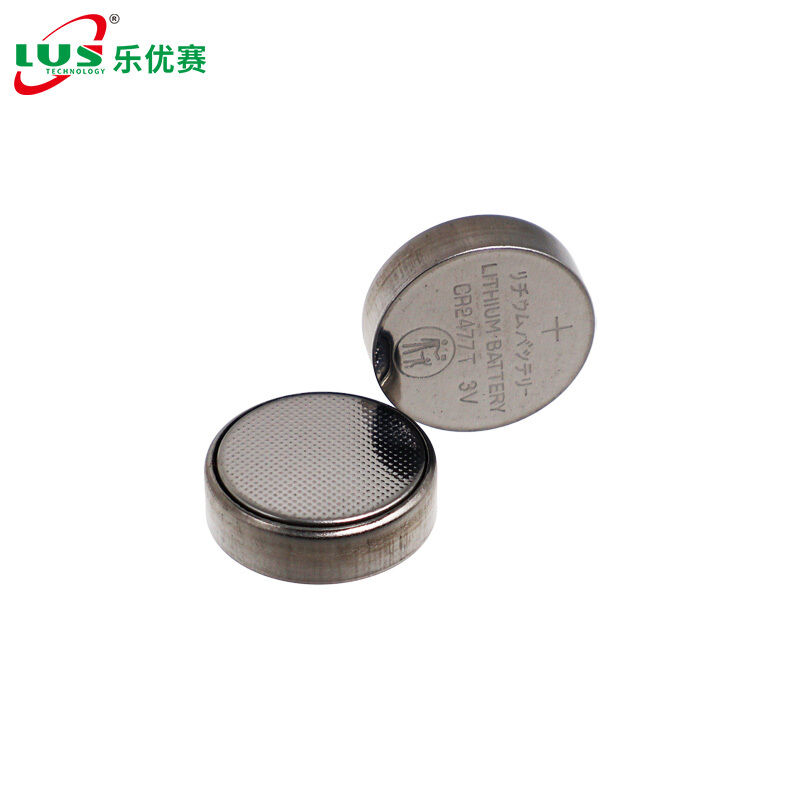

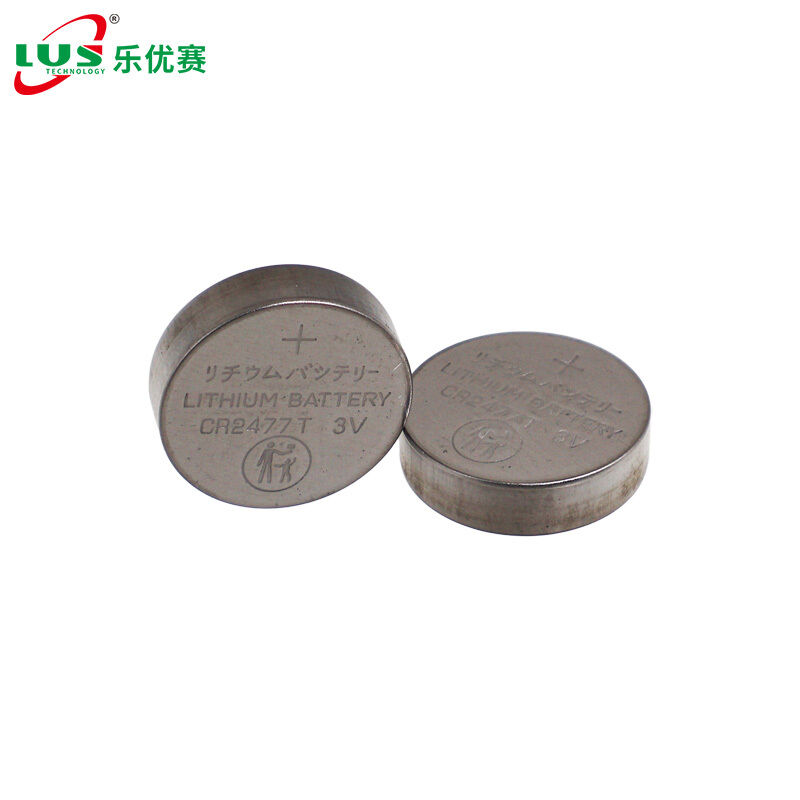

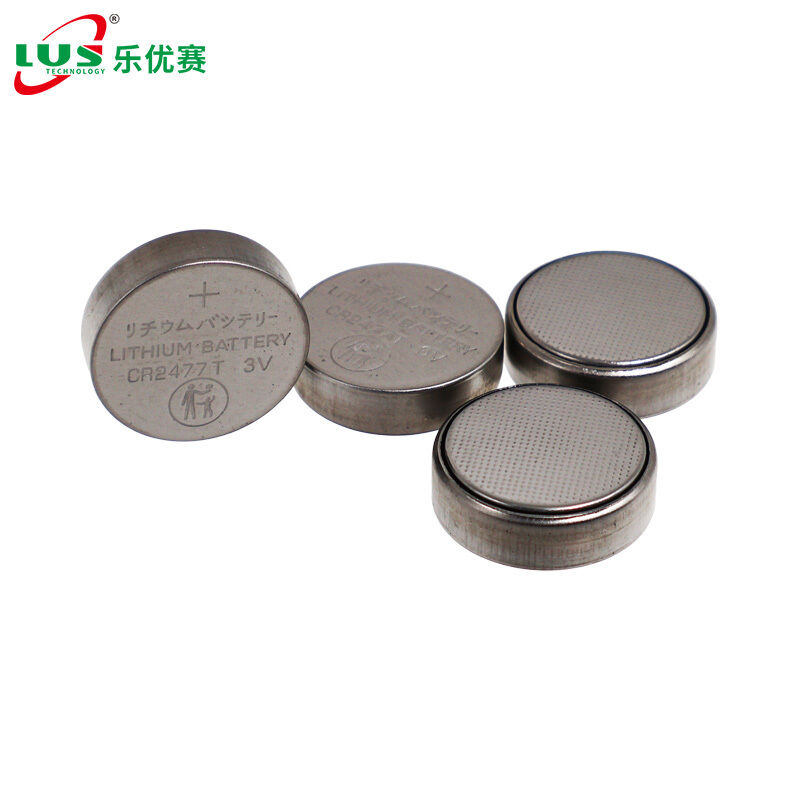

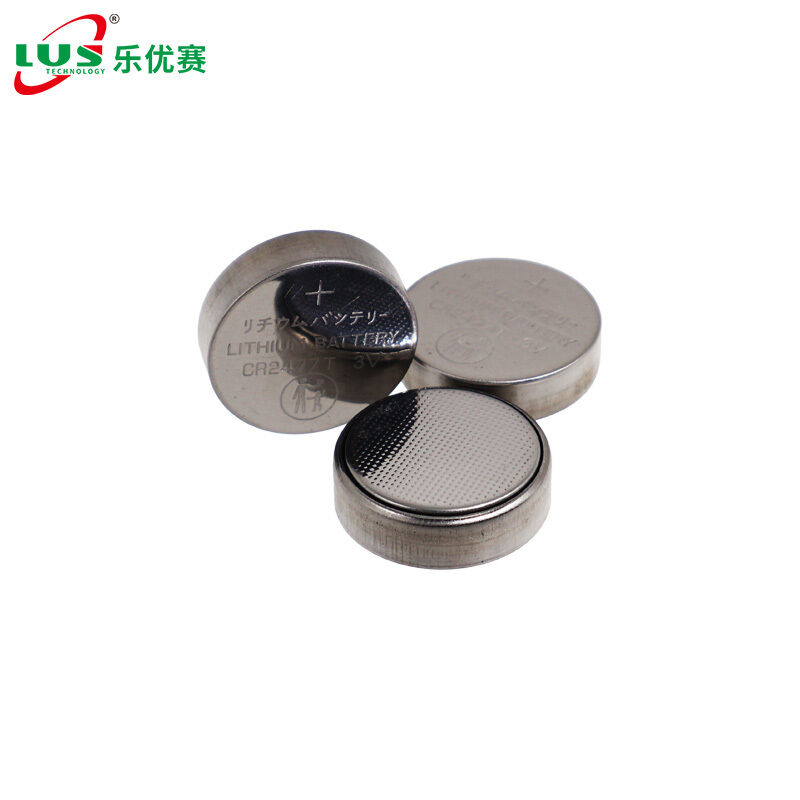

Lithium cell battery CR2477 1000mah cion battery CR2477T 1100mah 3V primary cion batteries
non-rechargeable lithium button cell batteries CR2477 Lithium Manganese Dioxide cion battery 3 V Battery CR2477T 1100mah Non-Rechargeable cell battery CR2477 1000mAh 3V Lithium button type battery CR2477 LiMnO2 Coin battery 3 Volt 950 mAh lithium battery CR2477T replacement battery CR-2477 battery CR-2477/HFN Batteries CR2477 Non-Rechargeable Primary cion battery CR2477 button primary lithium battery 3.0V 1000mah lithium battery
Specification for CR2477 Battery 3.0V 1100mah disposable cion type battery CR2477T batteries:
Battery series Button lithium manganese battery
Voltage 3.0Volt
Capaicty Min 1000mah standard 1100mah single cell battery
| ITEM |
UNIT |
SPECIFICATIONS |
CONDITIONS |
| Nominal voltage |
V |
3.0 |
Standard discharge |
| Nominal capacity |
mAh |
1100 |
Standard discharge |
| Instantaneous short–circuit current |
mA |
≥250 |
Time≤0.5 second |
| Off-load voltage |
V |
≥3.30 |
|
| Storage temperature |
℃ |
0~35 |
|
| Standard weight |
g |
9.5 |
Unit cell |
| Service output |
Initial |
Standard |
500 h |
Continuous discharge with load 1.5kΩ, till 2.0v end-voltage |
| Minimum |
480 h |
| After 12 months storage |
Standard |
475 h |
| Minimum |
470 h |
CR2477 3V CR2477T 3.0volt button non rechargeable battery
Coin Cell Battery Application:
Widely used in watches,computers, laptops, music card;
Voice table,hearing aids, electroni cnotepads, dict;
Cameras, medical devices, flashing lights;
Shoes, lamps and other electronic products.
Such as:
Vacuum cleaner, shaver, MP3, MP4, Digital camera, portable computer,
Lighting, electrical toys, electronic game Machine and electrical vehicles,
Cordless Phones, interphones, and all kinds of Cell phones.
Advantage for Button Cell Battery Lithium Limno2:
High capacity and long cycle life
Long service lifespan
Excellent life cycle
Enviromental friendly
High energy density
Excellent overcharge performance
Rapid charge performance
Lower inner resistance and low self-discharge
Safety and reliability
Wide temperature range, specially design battery can used in high and low temperature
Good quality with competitive price and best service
Suggestions And Cautions
1 Install batteries correctly.
2 Ensure the contact points to be clean and conductive.
3 Do not mix different types, different brands batteries to serve together.
4 Do not heat, recharge the batteries.
5 Do not dispose of the batteries in fire.
6 Keep away from the small children, if swallowed promptly see doctor.
7 Pay attention to the producing date.
Coin Cell Lithium Battery List:
| Mode |
Voltage(V) |
Capacity(mAh) |
Dimension(mm) |
Weight(g) |
Chargeable or Non |
| CR2032 |
3 |
220 |
20.0*3.2 |
3 |
Non |
| CR2032 |
3 |
240 |
20.0*3.2 |
3 |
Non |
| CR1220 |
3 |
35 |
12.5*2.0 |
0.8 |
Non |
| CR1225 |
3 |
50 |
12.5*2.5 |
0.9 |
Non |
| CR1616 |
3 |
50 |
16.0*1.6 |
1.1 |
Non |
| CR1620 |
3 |
70 |
16.0*2.0 |
1.3 |
Non |
| CR1632 |
3 |
120 |
16.0*3.2 |
1.8 |
Non |
| CR2016 |
3 |
83 |
20.0*1.6 |
1.7 |
Non |
| CR2025 |
3 |
150 |
20.0*2.5 |
2.5 |
Non |
| CR2450 |
3 |
600 |
24.5*5.0 |
6.2 |
Non |
| CR3032 |
3 |
550 |
30.0*3.2 |
7 |
Non |
| ML1220 |
3 |
17 |
12.5*20 |
0.8 |
Yes |
Lithium button type rechargeable Battery Product:
| Model |
Nominal Voltage (V) |
Nominal Capacity (mAh) |
Max. Discharge Current (mA) |
Resistance (mΩ) |
Diameter (mm) |
Height (mm) |
Weight Approx (g) |
| LIR1025 |
3.6 |
6±2 |
1C |
|
10.0 -0.15 |
2.5 +0.15 |
1.1±0.2 |
| LIR1220 |
3.6 |
8±2 |
1C |
|
12.5 -0.2 |
2.0 +0.35 |
0.8±0.3 |
| LIR1254 |
3.6 |
65±5 |
1C |
≤600 |
12.0 -0.2 |
5.4 +0.2 |
1.8±0.2 |
| LIR1620 |
3.6 |
16±2 |
1C |
≤2000 |
16.0 -0.2 |
2.0 +0.35 |
1.2±0.3 |
| LIR1632 |
3.6 |
25±2 |
1C |
≤2000 |
16.0 -0.2 |
3.2 +0.35 |
1.7±0.3 |
| LIR1654 |
3.6 |
120±5 |
1C |
≤600 |
16.0 -0.2 |
5.4 +0.2 |
2.4±0.2 |
| LIR2016 |
3.6 |
18±2 |
2C |
≤2000 |
20.0 -0.2 |
1.6 +0.35 |
1.7±0.3 |
| LIR2025 |
3.6 |
25±5 |
2C |
≤2000 |
20.0 -0.2 |
2.5 +0.25 |
2.3±0.3 |
| LIR2032 |
3.6 |
40±5 |
2C |
≤600 |
20.0 -0.2 |
3.2 +0.35 |
2.8±0.3 |
| LIR2050 |
3.6 |
80±5 |
2C |
≤600 |
20.0 -0.2 |
5.0 +0.2 |
3.8±0.2 |
| LIR2430 |
3.6 |
60±5 |
2C |
≤500 |
24.5 -0.2 |
3.0 +0.35 |
3.8±0.3 |
| LIR2450 |
3.6 |
120±10 |
2C |
≤450 |
24.5 -0.2 |
5.0 +0.35 |
5.0±0.3 |
| LIR2477 |
3.6 |
180±10 |
2C |
≤400 |
24.5 -0.2 |
7.7 +0.3 |
7.0±0.3 |
